Moxa OnCell G2111-T [12/48] Wall mounting

OnCell G2111/G2151I Series Getting Started

2-5

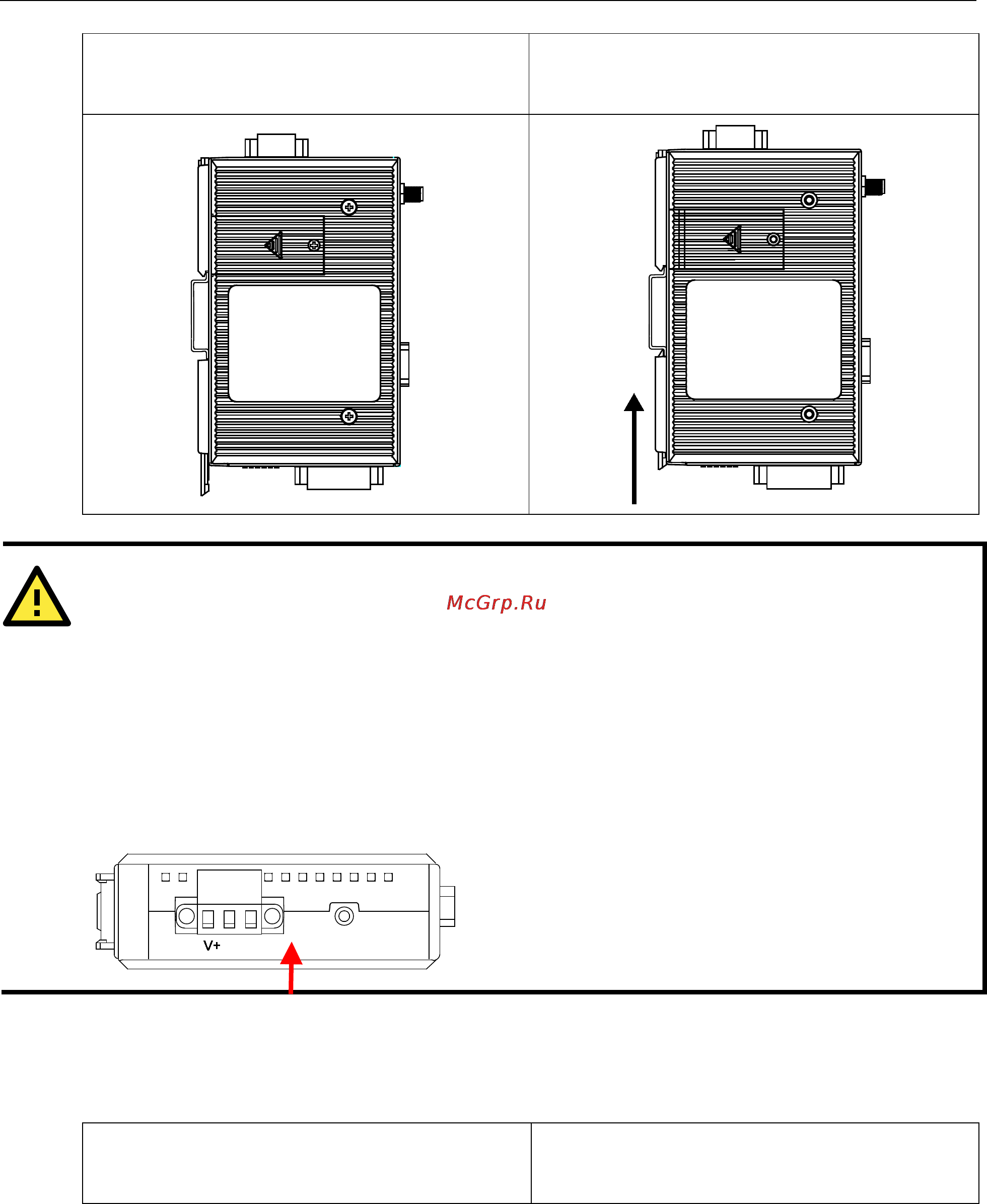

STEP 3: Place the modem flush against the DIN-rail

as shown.

STEP 4: Slide the bottom mounting appendage back

in. It should snap into place over the bottom edge of

the DIN-rail.

ATTENTION

Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). There are

two grounding points for the unit. One point is the 3

-pin terminal block

connector for power. Underneath the

bottom mounting appendage is another grounding point.

For DIN

-rail mounted units: Ground the DIN-rail itself. The modem's grounding point under the mounting

appendage will be in direct contact with the rail. Be sure to g

round the DIN-

rail before connecting the modem

to the DIN

-rail.

For wall or panel

-mounted units: Run a ground wire from the right-

most pin of the terminal block connector. Be

sure to connect the ground wire before connecting devices to the modem.

Wall Mounting

Follow the instructions below to mount the OnCell Series modem on a wall:

STEP 1: Remove the 3-pin power terminal block. For

the OnCell G2151I, also remove the 5-pin RS-

422/485

terminal block.

STEP 2: Use a flat-blade screw driver to pull out bot

the top and bottom mounting appendages.
