OnCell G2111/G2151I Series Getting Started
2-6

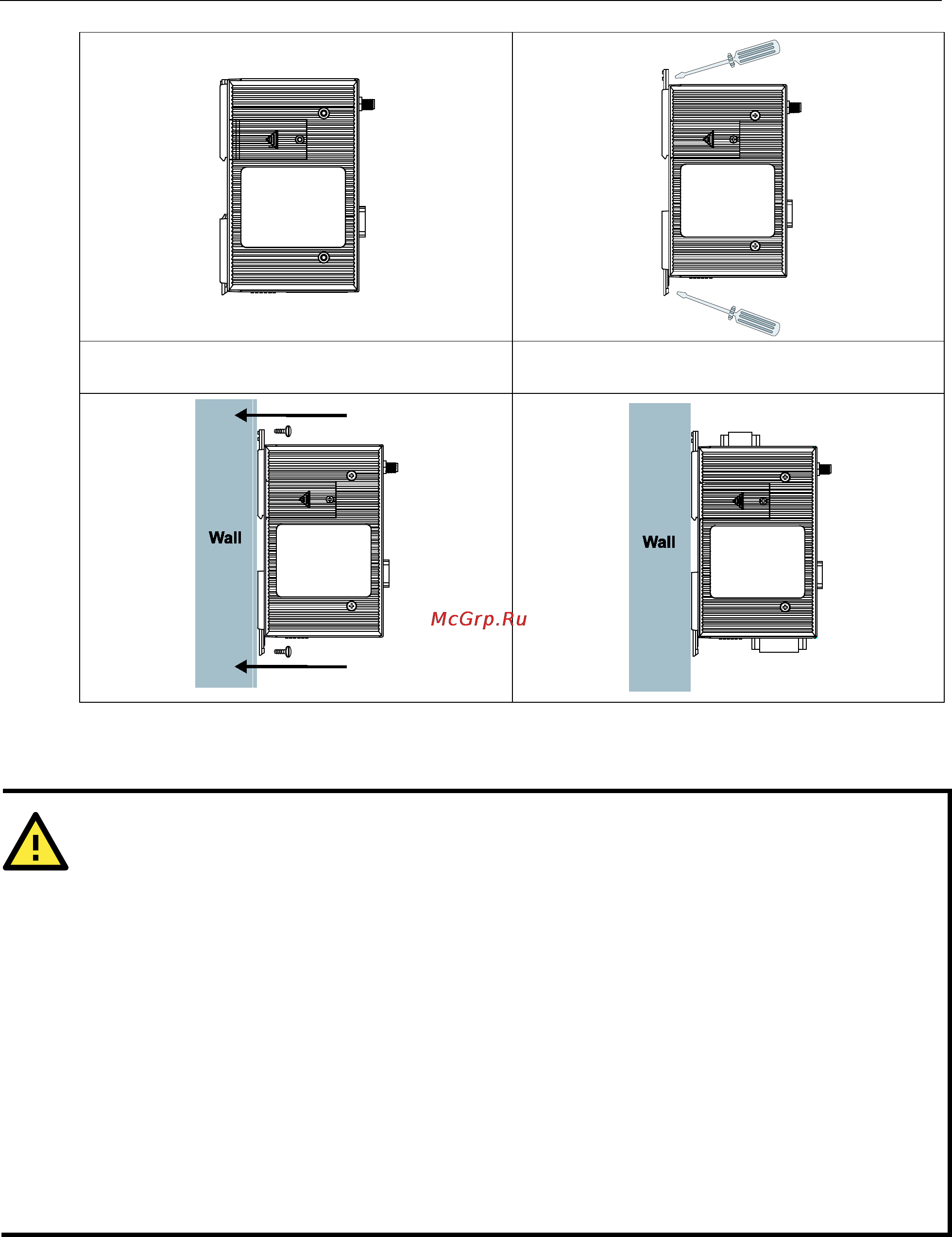

STEP 3:
Use screws and the mounting appendages to
mount the unit onto the wall.
STEP 4: Reattach the terminal block(s) to the modem.
Connecting the Antenna
ATTENTION
Make
sure the transmitter antenna is placed so that it is at least 20 cm (8 inches) away from any people or
users. The modem is not designed for applications where users will be in close proximity for prolonged periods.
Turn the unit off for the following situ
ations:
•
When in an aircraft
•
When around gasoline or diesel-fuel pumps and before filling your vehicle with fuel
•
When in hospitals and any other place where medical equipment may be in use
Respect any restrictions on the use of radio equipment, especially
around fuel depots, chemical plants, and
blasting operations.
The OnCell G2111/G2151I Series modem may present a hazard for inadequately protected personal medical
devices such as hearing aids and pacemakers. Consult the manufacturer of the medical device to determine if
it is adequately protected.
The OnCell G2111/G2151I Series modem may cause interference for inadequately protected electronic
equipment. Observe any warning signs and manufacturers’ recommendations.
All OnCell G2111/G2151I Series modems are shipped with a 0 dBi antenna with SMA connector and magnetic
mount. The 3-meter patch cord is ideal for installing the modem in places such as a metal cabinet or a vending
machine.
