OnCell G2111/G2151I Series Introduction
1-4
Reliability
MTBF (mean time between failures):
OnCell G2111/G2111
-T: 925,000 hrs
OnCell G2151I: 864,000 hrs
Warranty
Warranty Period:
5 years
Details:
See www.moxa.com/warranty

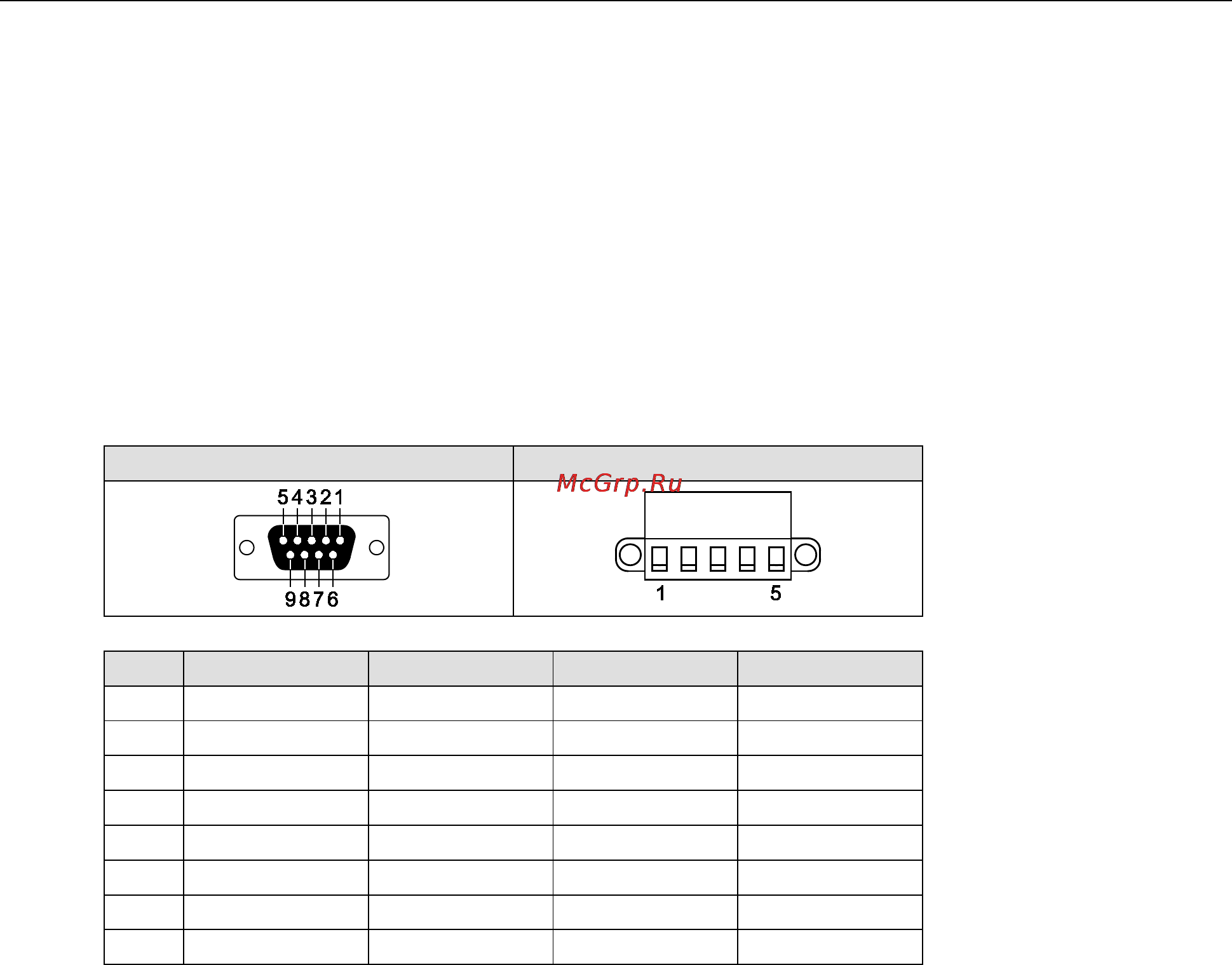

Pin Assignments
DB9 (Female) for RS-232 Terminal Block for RS-422/485
Pin RS-232 RS-422* RS-485-4W* RS-485-2W*
1 DCD TxD+ TxD+ –
2 TxD TxD- TxD- –
3 RxD RxD+ RxD+ Data + (B)
4 DSR RxD- RxD- Data – (A)
5 GND – – –
6 DTR – – –
7 CTS – – –
8 RTS – – –
*RS-422 and RS-485 are only available with the OnCell G2151I.
