11 -
Initial set-up
Connecting to Loewe TV sets without RS-232C system interface

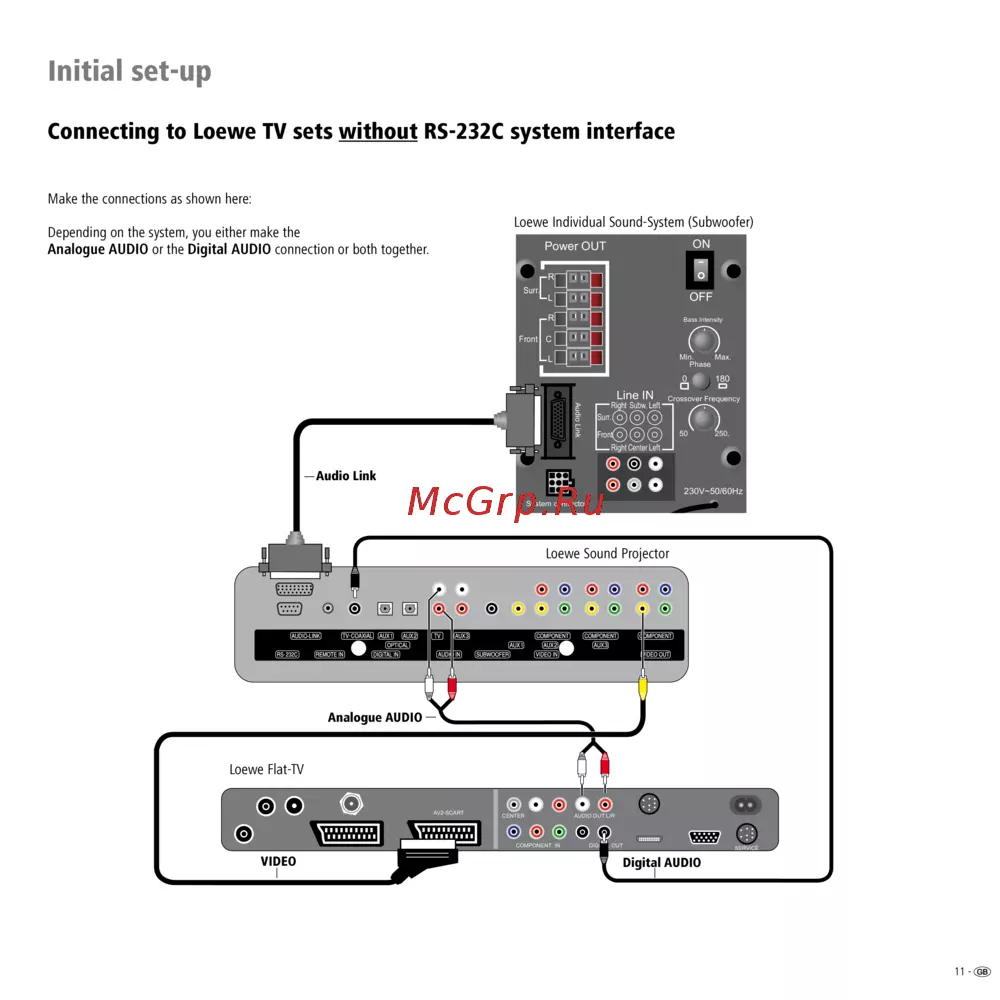

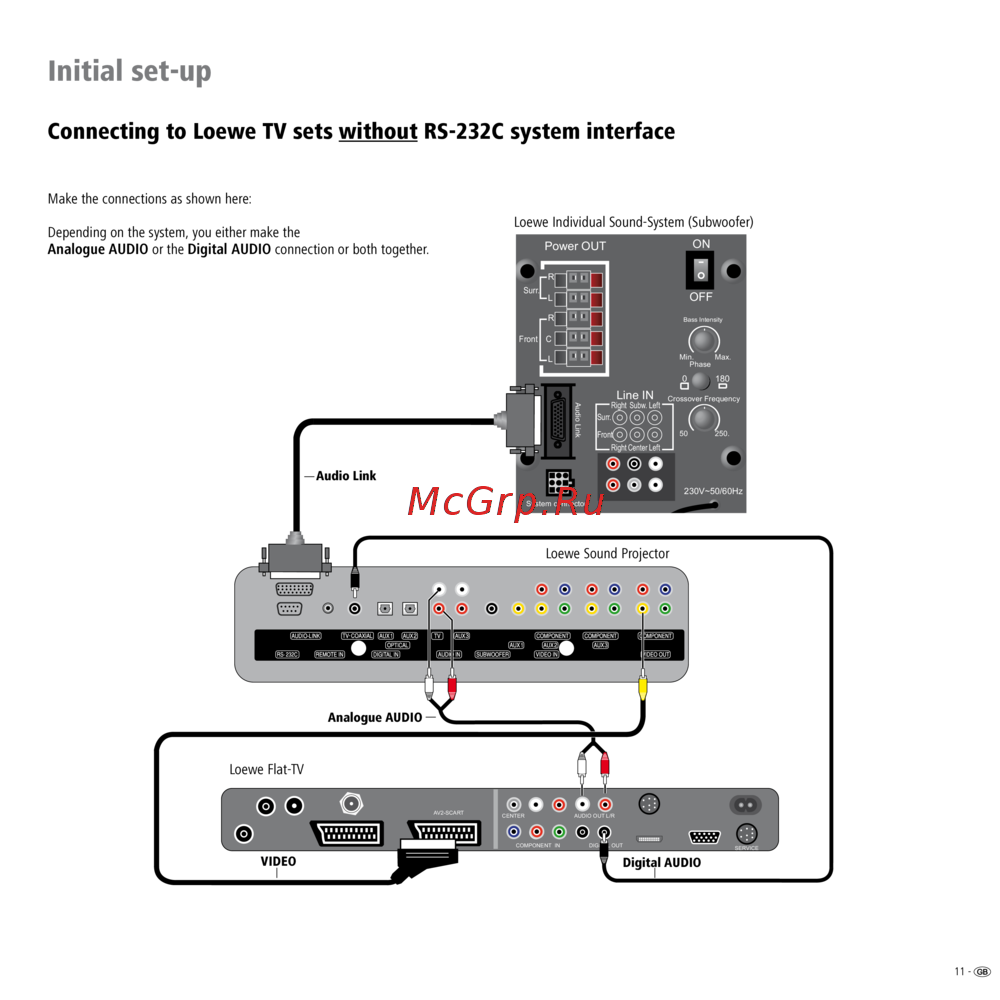

Make the connections as shown here:
Depending on the system, you either make the
Analogue AUDIO or the Digital AUDIO connection or both together.
ON
Line IN
Power OUT
OFF
230V~50/60Hz
Surr.
Front
Right
Surr.
Front
Subw.
Left
Right
Center
Left
R
R
L
C
L
Bass Intensity
Phase
Min. Max.
0 180
Crossover Frequency
Audio Link
System connector
50 250.
AV2-SCART
SERVICE
CENTER AUDIO OUT L/R
DIGITAL OUTCOMPONENT IN
Loewe Individual Sound-System (Subwoofer)
Loewe Sound Projector
Loewe Flat-TV
Digital AUDIO
Audio Link
VIDEO
Analogue AUDIO
