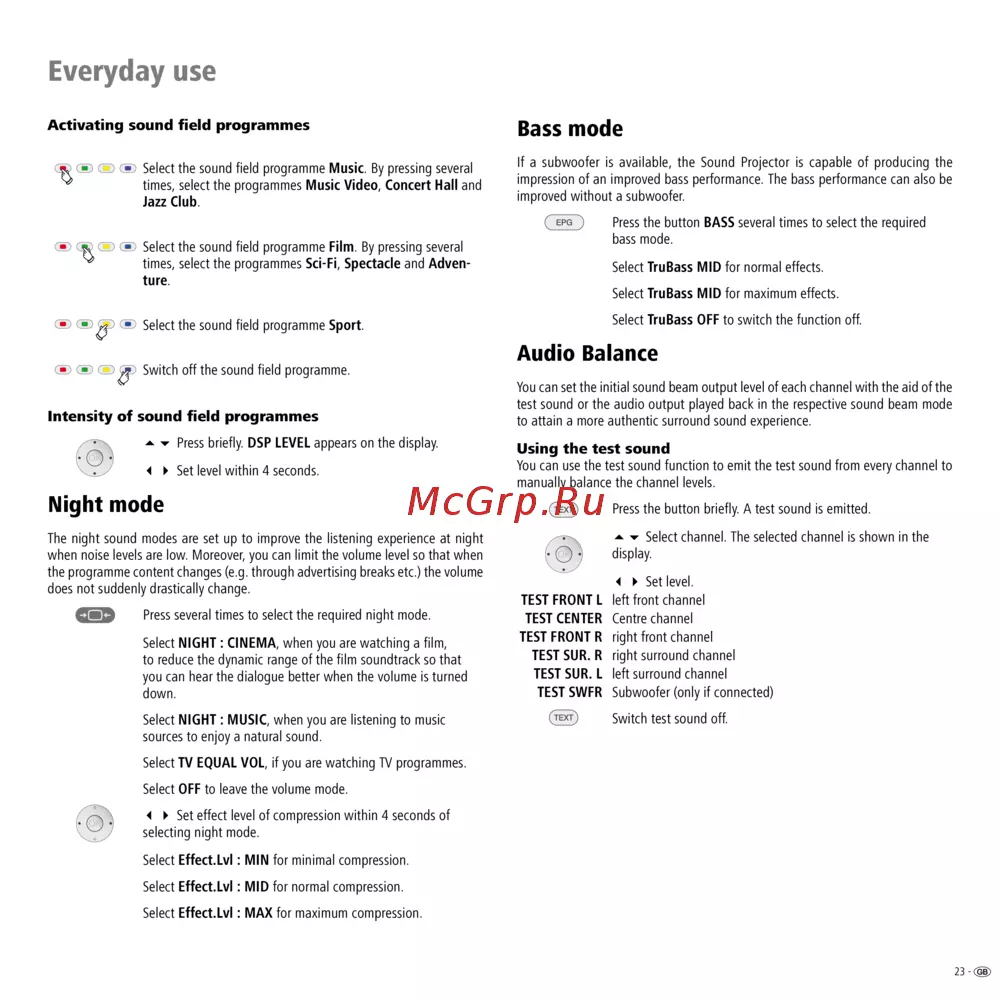

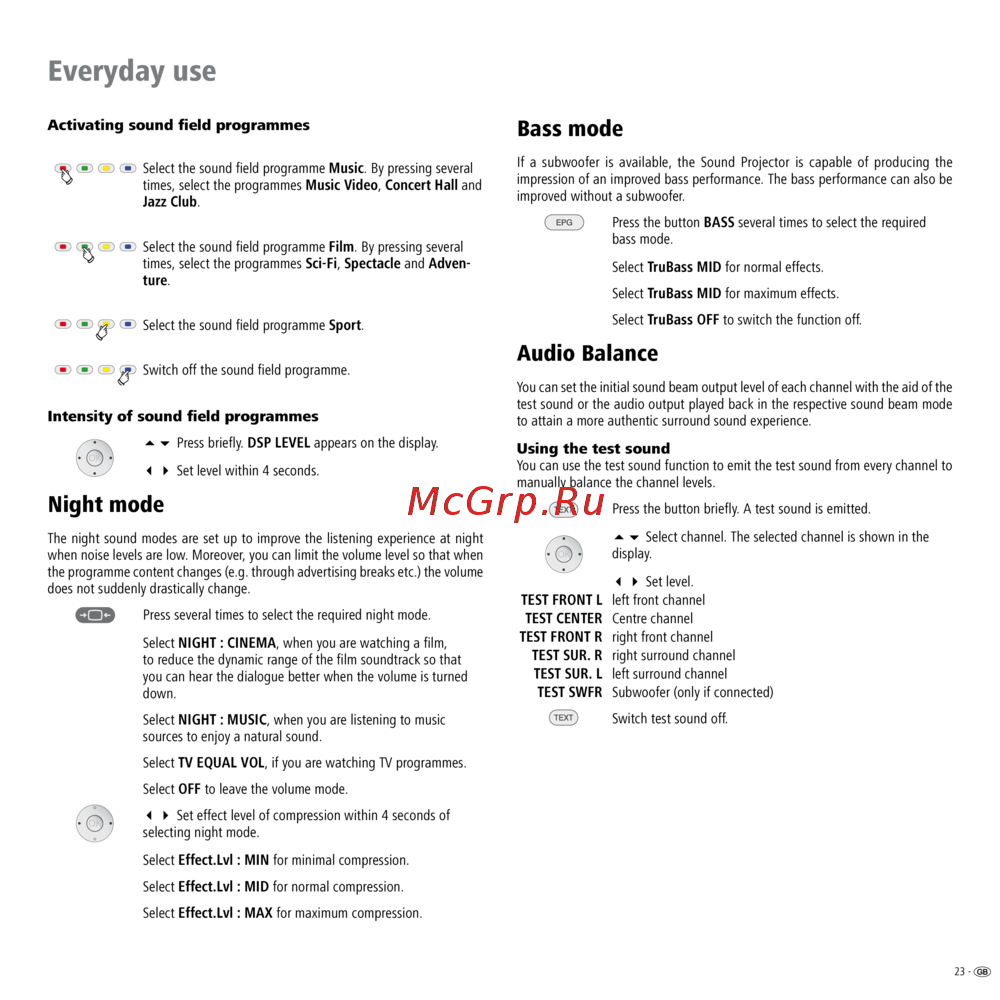

23 -
Activating sound field programmes
Select the sound field programme Music. By pressing several
times, select the programmes Music Video, Concert Hall and
Jazz Club.
Select the sound field programme Film. By pressing several
times, select the programmes Sci-Fi, Spectacle and Adven-
ture.
Select the sound field programme Sport.
Switch off the sound field programme.
Intensity of sound field programmes
56 Press briefly. DSP LEVEL appears on the display.
34 Set level within 4 seconds.
Night mode
The night sound modes are set up to improve the listening experience at night
when noise levels are low. Moreover, you can limit the volume level so that when
the programme content changes (e.g. through advertising breaks etc.) the volume
does not suddenly drastically change.
Press several times to select the required night mode.
Select NIGHT : CINEMA, when you are watching a film,
to reduce the dynamic range of the film soundtrack so that
you can hear the dialogue better when the volume is turned
down.
Select NIGHT : MUSIC, when you are listening to music
sources to enjoy a natural sound.
Select TV EQUAL VOL, if you are watching TV programmes.
Select OFF to leave the volume mode.
34 Set effect level of compression within 4 seconds of
selecting night mode.
Select Effect.Lvl : MIN for minimal compression.
Select Effect.Lvl : MID for normal compression.
Select Effect.Lvl : MAX for maximum compression.
Bass mode
If a subwoofer is available, the Sound Projector is capable of producing the
impression of an improved bass performance. The bass performance can also be
improved without a subwoofer.
Press the button BASS several times to select the required
bass mode.
Select TruBass MID for normal effects.
Select TruBass MID for maximum effects.
Select TruBass OFF to switch the function off.
Audio Balance
You can set the initial sound beam output level of each channel with the aid of the
test sound or the audio output played back in the respective sound beam mode
to attain a more authentic surround sound experience.
Using the test sound
You can use the test sound function to emit the test sound from every channel to
manually balance the channel levels.
Press the button briefly. A test sound is emitted.
56 Select channel. The selected channel is shown in the
display.
34 Set level.
TEST FRONT L left front channel
TEST CENTER Centre channel
TEST FRONT R right front channel
TEST SUR. R right surround channel
TEST SUR. L left surround channel
TEST SWFR Subwoofer (only if connected)
Switch test sound off.
Everyday use
