29 -

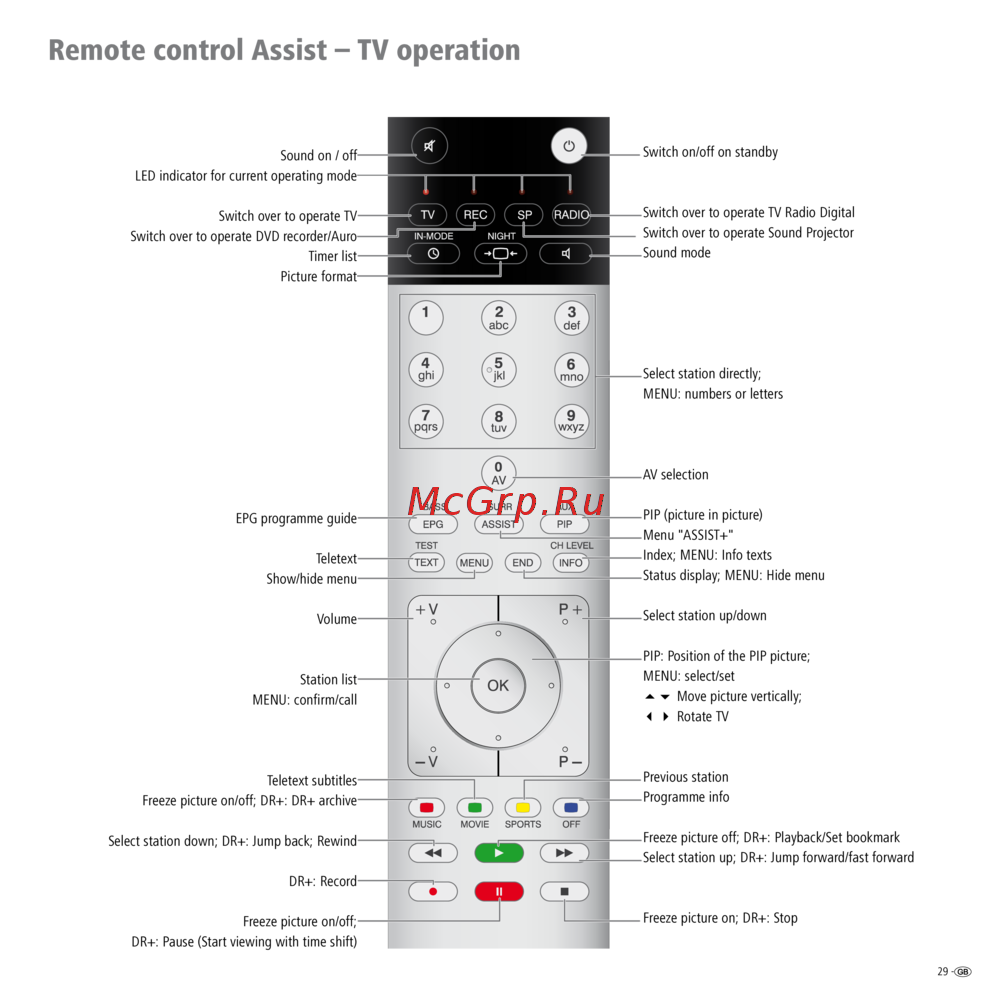

Remote control Assist – TV operation
Switch on/off on standby
Switch over to operate TV Radio Digital
Switch over to operate Sound Projector
Sound mode
Select station directly;
MENU: numbers or letters
AV selection
PIP (picture in picture)
Menu "ASSIST+"
Index; MENU: Info texts
Status display; MENU: Hide menu
Select station up/down
PIP: Position of the PIP picture;
MENU: select/set
56 Move picture vertically;
34 Rotate TV
Previous station
Programme info
Freeze picture off; DR+: Playback/Set bookmark
Select station up; DR+: Jump forward/fast forward
Freeze picture on; DR+: Stop
Sound on / off
LED indicator for current operating mode
Switch over to operate TV
Switch over to operate DVD recorder/Auro
Timer list
Picture format
EPG programme guide
Teletext
Show/hide menu
Volume
Station list
MENU: confirm/call
Teletext subtitles
Freeze picture on/off; DR+: DR+ archive
Select station down; DR+: Jump back; Rewind
DR+: Record
Freeze picture on/off;
DR+: Pause (Start viewing with time shift)
