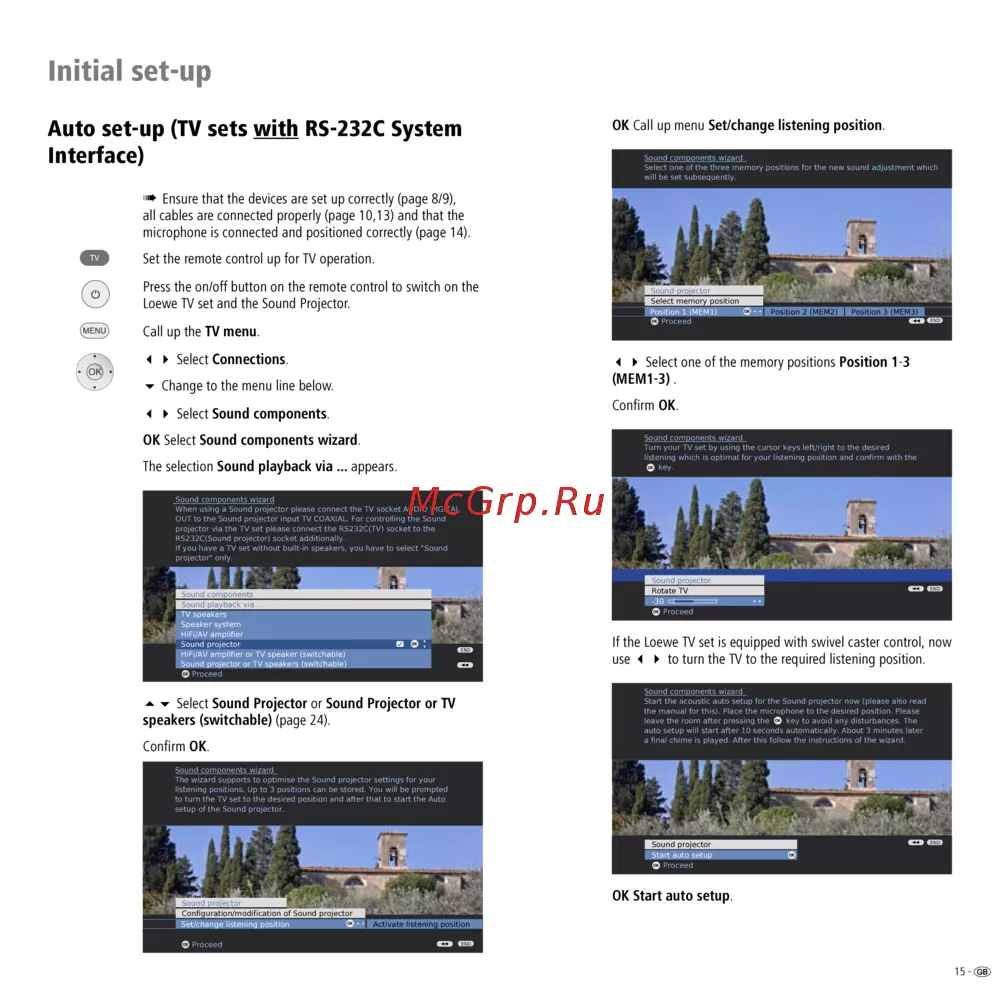

15 -
Auto set-up (TV sets with RS-232C System
Interface)
➠ Ensure that the devices are set up correctly (page 8/9),
all cables are connected properly (page 10,13) and that the
microphone is connected and positioned correctly (page 14).
Set the remote control up for TV operation.
Press the on/off button on the remote control to switch on the
Loewe TV set and the Sound Projector.
Call up the TV menu.

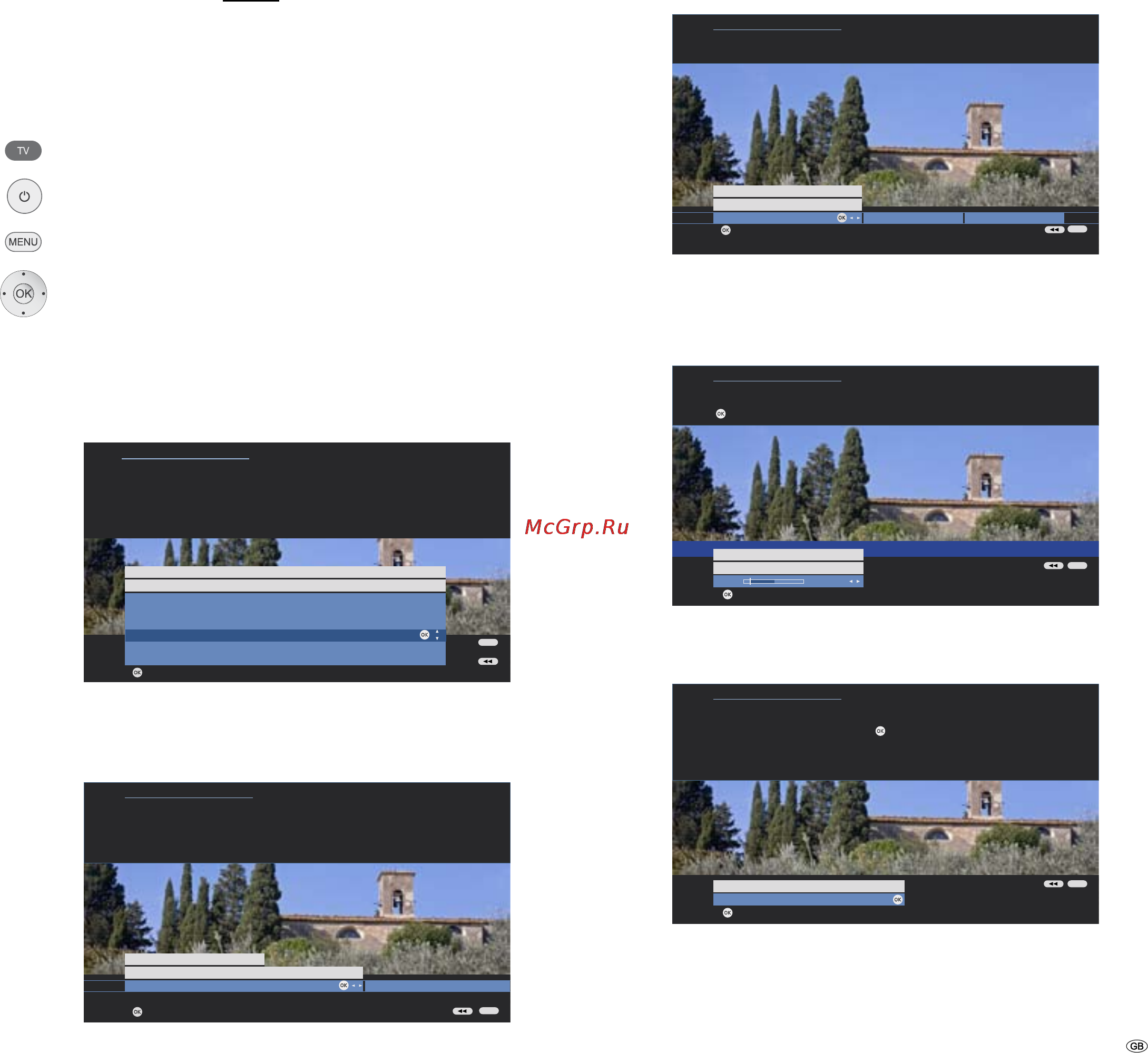

34 Select Connections.
6 Change to the menu line below.
34 Select Sound components.
OK Select Sound components wizard.
The selection Sound playback via ... appears.
END
OK
OK
TV speakers
Speaker system
HiFi/AV amplifier
Sound projector
HiFi/AV amplifier or TV speaker (switchable)
Sound projector or TV speakers (switchable)
Sound components
Sound playback via ...
Sound components wizard
When using a Sound projector please connect the TV socket AUDIO DIGITAL
OUT to the Sound projector input TV COAXIAL. For controlling the Sound
projector via the TV set please connect the RS232C(TV) socket to the
RS232C(Sound projector) socket additionally.
If you have a TV set without built-in speakers, you have to select "Sound
projector" only.
Proceed
56 Select Sound Projector or Sound Projector or TV
speakers (switchable) (page 24).
Confirm OK.
END
OK
OK
Proceed
Set/change listening position
Configuration/modification of Sound projector
Sound projector
Sound components wizard
The wizard supports to optimise the Sound projector settings for your
listening positions. Up to 3 positions can be stored. You will be prompted
to turn the TV set to the desired position and after that to start the Auto
setup of the Sound projector.
Activate listening position
OK Call up menu Set/change listening position.
END
OK
OK
Proceed
Position 1 (MEM1)
Select memory position
Sound projector
Sound components wizard
Select one of the three memory positions for the new sound adjustment which
will be set subsequently.
Position 2 (MEM2)
Position 3 (MEM3)
34 Select one of the memory positions Position 1-3
(MEM1-3) .
Confirm OK.
Sound components wizard
Turn your TV set by using the cursor keys left/right to the desired
listening which is optimal for your listening position and confirm with the
key.
END
OK
-30
Rotate TV
Sound projector
Proceed
OK
If the Loewe TV set is equipped with swivel caster control, now
use 34 to turn the TV to the required listening position.
END
OK
OK
Sound components wizard
Start the acoustic auto setup for the Sound projector now (please also read
the manual for this). Place the microphone to the desired position. Please
leave the room after pressing the key to avoid any disturbances. The
auto setup will start after 10 seconds automatically. About 3 minutes later
a final chime is played. After this follow the instructions of the wizard.
Start auto setup
Sound projector
Proceed
OK
OK Start auto setup.
Initial set-up
