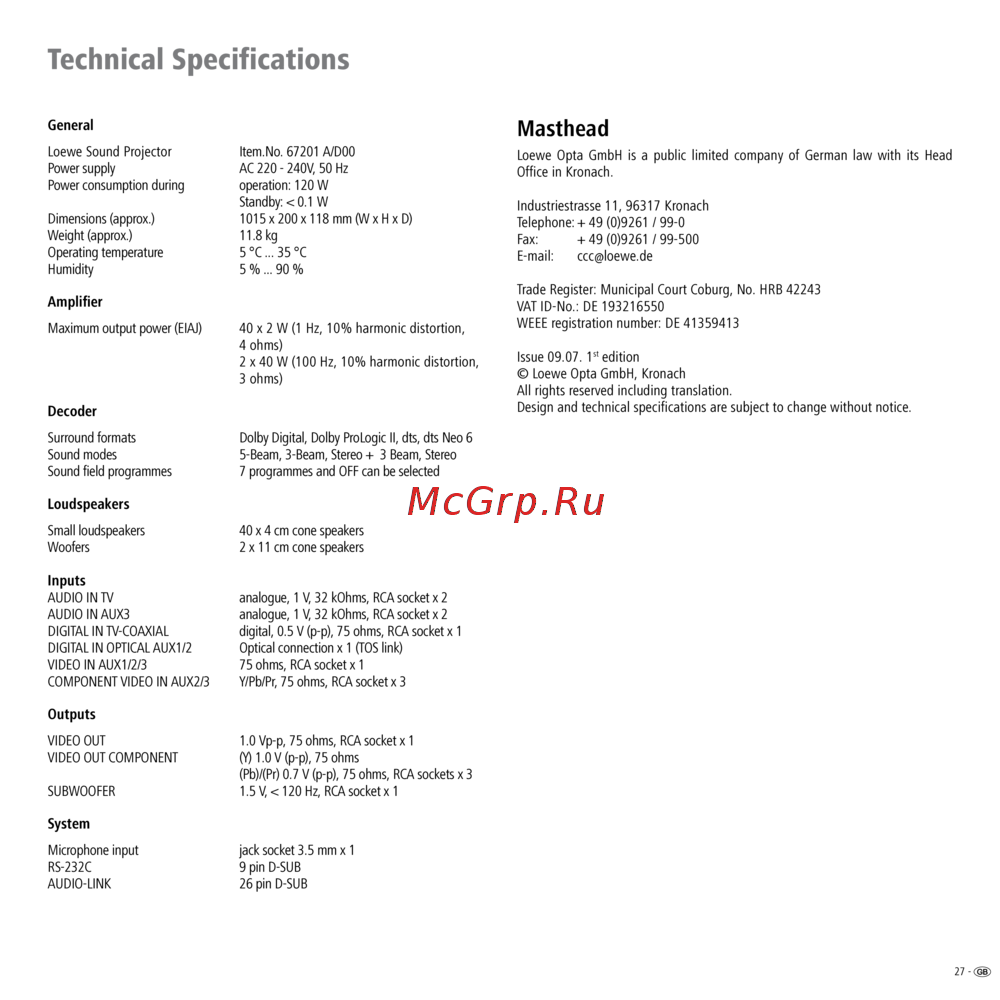

Loewe Individual Sound Projector [27/30] Technical specifications
![Loewe Individual Sound Projector [27/30] Technical specifications](/views2/1020384/page27/bg1b.png)
27 -
General
Loewe Sound Projector Item.No. 67201 A/D00
Power supply AC 220 - 240V, 50 Hz
Power consumption during operation: 120 W
Standby: < 0.1 W
Dimensions (approx.) 1015 x 200 x 118 mm (W x H x D)
Weight (approx.) 11.8 kg
Operating temperature 5 °C ... 35 °C
Humidity 5 % ... 90 %
Amplier
Maximum output power (EIAJ) 40 x 2 W (1 Hz, 10% harmonic distortion,
4 ohms)
2 x 40 W (100 Hz, 10% harmonic distortion,
3 ohms)
Decoder
Surround formats Dolby Digital, Dolby ProLogic II, dts, dts Neo 6
Sound modes 5-Beam, 3-Beam, Stereo + 3 Beam, Stereo
Sound field programmes 7 programmes and OFF can be selected
Loudspeakers
Small loudspeakers 40 x 4 cm cone speakers
Woofers 2 x 11 cm cone speakers
Inputs
AUDIO IN TV analogue, 1 V, 32 kOhms, RCA socket x 2
AUDIO IN AUX3 analogue, 1 V, 32 kOhms, RCA socket x 2
DIGITAL IN TV-COAXIAL digital, 0.5 V (p-p), 75 ohms, RCA socket x 1
DIGITAL IN OPTICAL AUX1/2 Optical connection x 1 (TOS link)
VIDEO IN AUX1/2/3 75 ohms, RCA socket x 1
COMPONENT VIDEO IN AUX2/3 Y/Pb/Pr, 75 ohms, RCA socket x 3
Outputs
VIDEO OUT 1.0 Vp-p, 75 ohms, RCA socket x 1
VIDEO OUT COMPONENT (Y) 1.0 V (p-p), 75 ohms
(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA sockets x 3
SUBWOOFER 1.5 V, < 120 Hz, RCA socket x 1
System
Microphone input jack socket 3.5 mm x 1
RS-232C 9 pin D-SUB
AUDIO-LINK 26 pin D-SUB
Masthead
Loewe Opta GmbH is a public limited company of German law with its Head
Office in Kronach.
Industriestrasse 11, 96317 Kronach
Telephone: + 49 (0)9261 / 99-0
Fax: + 49 (0)9261 / 99-500
E-mail: ccc@loewe.de
Trade Register: Municipal Court Coburg, No. HRB 42243
VAT ID-No.: DE 193216550
WEEE registration number: DE 41359413
Issue 09.07. 1
st
edition
© Loewe Opta GmbH, Kronach
All rights reserved including translation.
Design and technical specifications are subject to change without notice.
Technical Specifications
