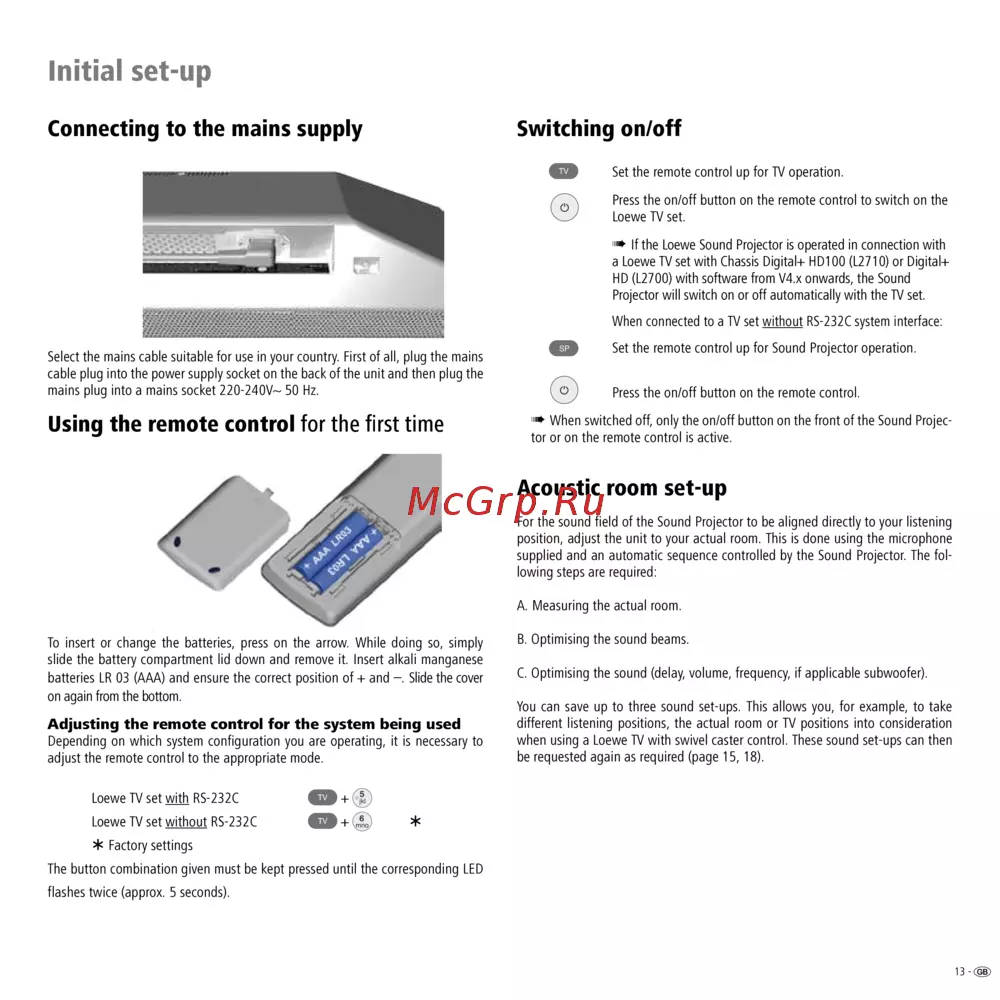

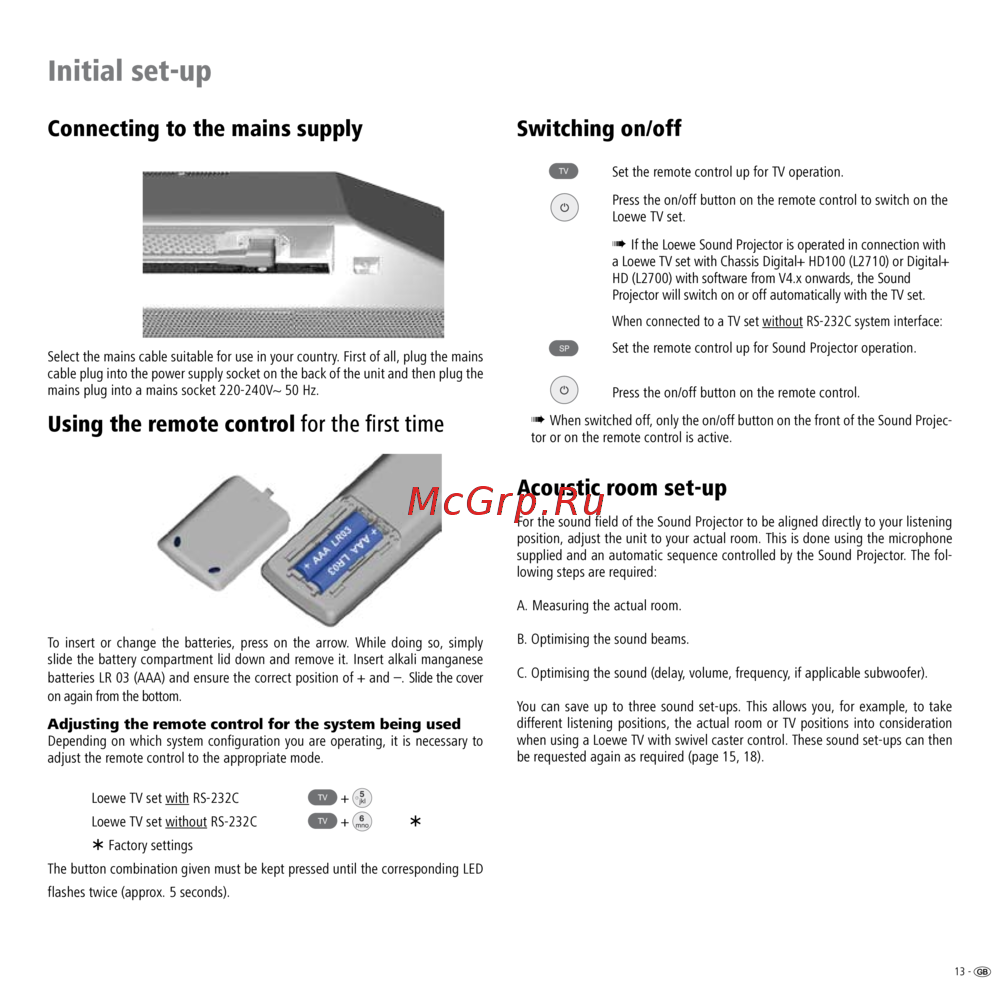

Loewe Individual Sound Projector [13/30] Using the remote control for the first time

13 -

Connecting to the mains supply

Select the mains cable suitable for use in your country. First of all, plug the mains

cable plug into the power supply socket on the back of the unit and then plug the

mains plug into a mains socket 220-240V~ 50 Hz.

Using the remote control for the rst time

To insert or change the batteries, press on the arrow. While doing so, simply

slide the battery compartment lid down and remove it. Insert alkali manganese

batteries LR 03 (AAA) and ensure the correct position of + and –. Slide the cover

on again from the bottom.

Adjusting the remote control for the system being used

Depending on which system configuration you are operating, it is necessary to

adjust the remote control to the appropriate mode.

Loewe TV set with RS-232C +

Loewe TV set without RS-232C + 

 Factory settings

The button combination given must be kept pressed until the corresponding LED

flashes twice (approx. 5 seconds).

Switching on/off

Set the remote control up for TV operation.

Press the on/off button on the remote control to switch on the

Loewe TV set.

➠ If the Loewe Sound Projector is operated in connection with

a Loewe TV set with Chassis Digital+ HD100 (L2710) or Digital+

HD (L2700) with software from V4.x onwards, the Sound

Projector will switch on or off automatically with the TV set.

When connected to a TV set without RS-232C system interface:

Set the remote control up for Sound Projector operation.

Press the on/off button on the remote control.

➠ When switched off, only the on/off button on the front of the Sound Projec-

tor or on the remote control is active.

Acoustic room set-up

For the sound field of the Sound Projector to be aligned directly to your listening

position, adjust the unit to your actual room. This is done using the microphone

supplied and an automatic sequence controlled by the Sound Projector. The fol-

lowing steps are required:

A. Measuring the actual room.

B. Optimising the sound beams.

C. Optimising the sound (delay, volume, frequency, if applicable subwoofer).

You can save up to three sound set-ups. This allows you, for example, to take

different listening positions, the actual room or TV positions into consideration

when using a Loewe TV with swivel caster control. These sound set-ups can then

be requested again as required (page 15, 18).

Initial set-up
