Installing the TV set
First plan the installation solution for your TV set. See the installation
instructions of the enclosed table mount for this.
See accessories (page 60) for other installation options.
Preparing the remote control unit
Inserting or replacing batteries
Press the embossed arrow and push down the
battery compartment cover .
Insert two alkaline manganese LR 03 (AAA) batteries;
ensure that the + and – poles are correctly positioned!
Slide the cover up from below.
Adjusting the remote control for operating the TV set
Press the TV button.
See page 54 to find out how to operate other Loewe
equipment.
Connecting the TV set
Connecting to the mains
Remove the cover for the connections.
Connect the TV set to a 220-240V power outlet:
First plug the small plug of the power cable into the
power connection on the rear of the TV, then plug the
large power plug into a mains power outlet.
Connecting the antenna
Analogue / DVB-C- / DVB-T antenna:
In sets with DR
+
: Plug the antenna plug of the antenna
or cable system or the room antenna into the ANT2
socket. The connecting cable between ANT-TV and ANT
OUT has already been plugged in at the factory.
In sets without DR
+
: Plug the antenna plug of the
antenna or cable system or the room antenna into the
ANT-TV socket.
Initial installation
AAA LR03
AAA LR0
3
Satellite antenna, if upgraded:
Connect one antenna plug each, for example, from the
antenna switch or the Twin-LNC of the satellite system
to the ANT-SAT and ANT-SAT2 sockets (only for sets with
DR
+
).
If you only connect one SAT antenna cable, connect it
to ANT-SAT.
Replace the cover over the connections.
Receiving coded stations
When using a CA module and a Smart-Card to receive
coded stations, please observe the handling of the CA
module (see page 35).
TV
R
Xelos A42
ANT
SAT
ANT2
ANT
SAT2
220-240V~
50/60Hz
TV
R
ANT
SAT
ANT2
ANT
SAT2
220-240V~
50/60Hz
Xelos A32
Xelos A37

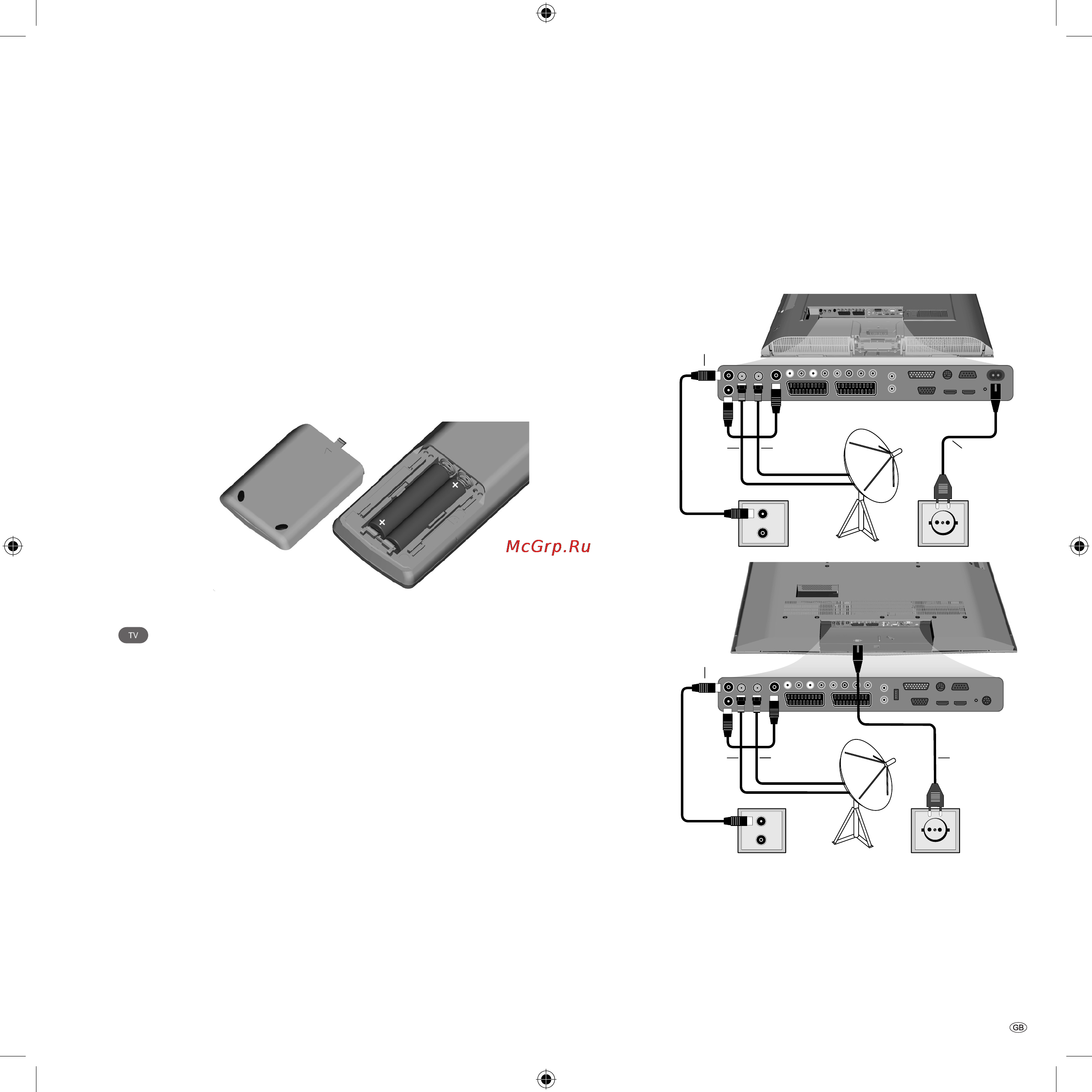

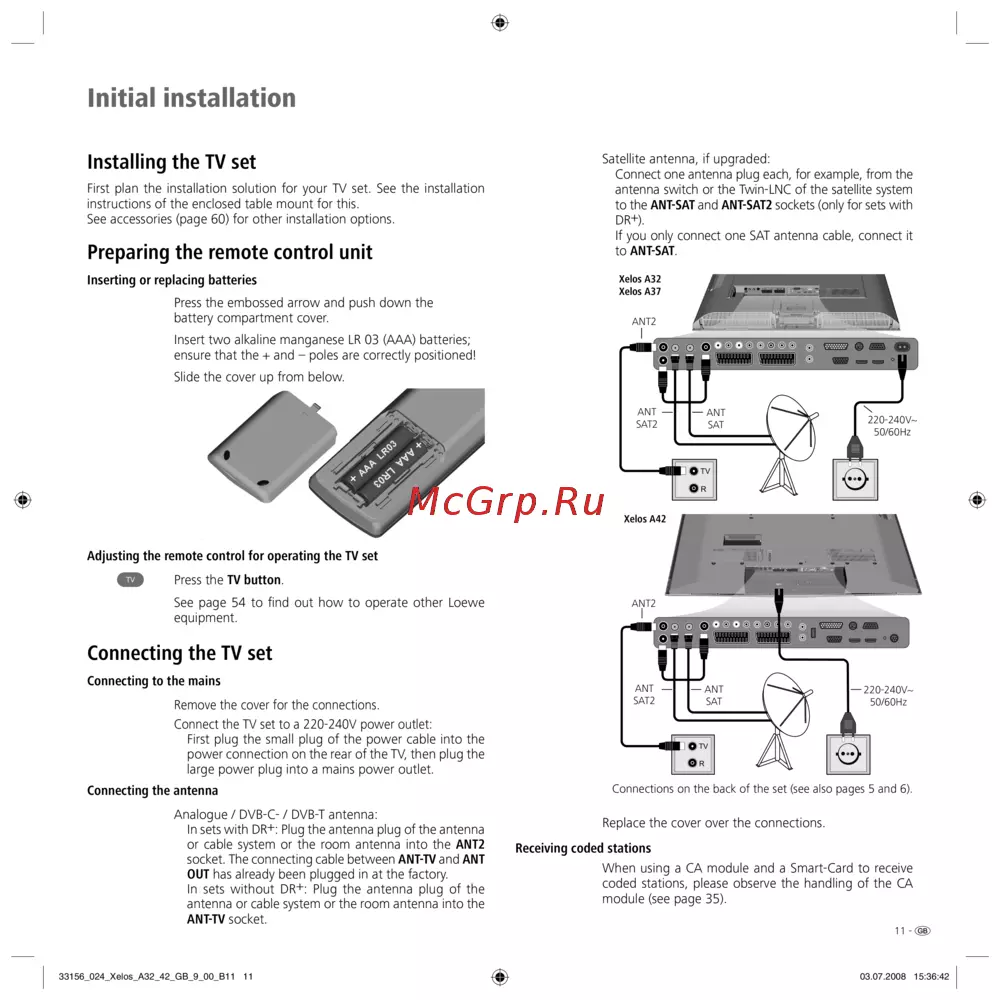

Connections on the back of the set (see also pages 5 and 6).
33156_024_Xelos_A32_42_GB_9_00_B11 1133156_024_Xelos_A32_42_GB_9_00_B11 11 03.07.2008 15:36:4203.07.2008 15:36:42
