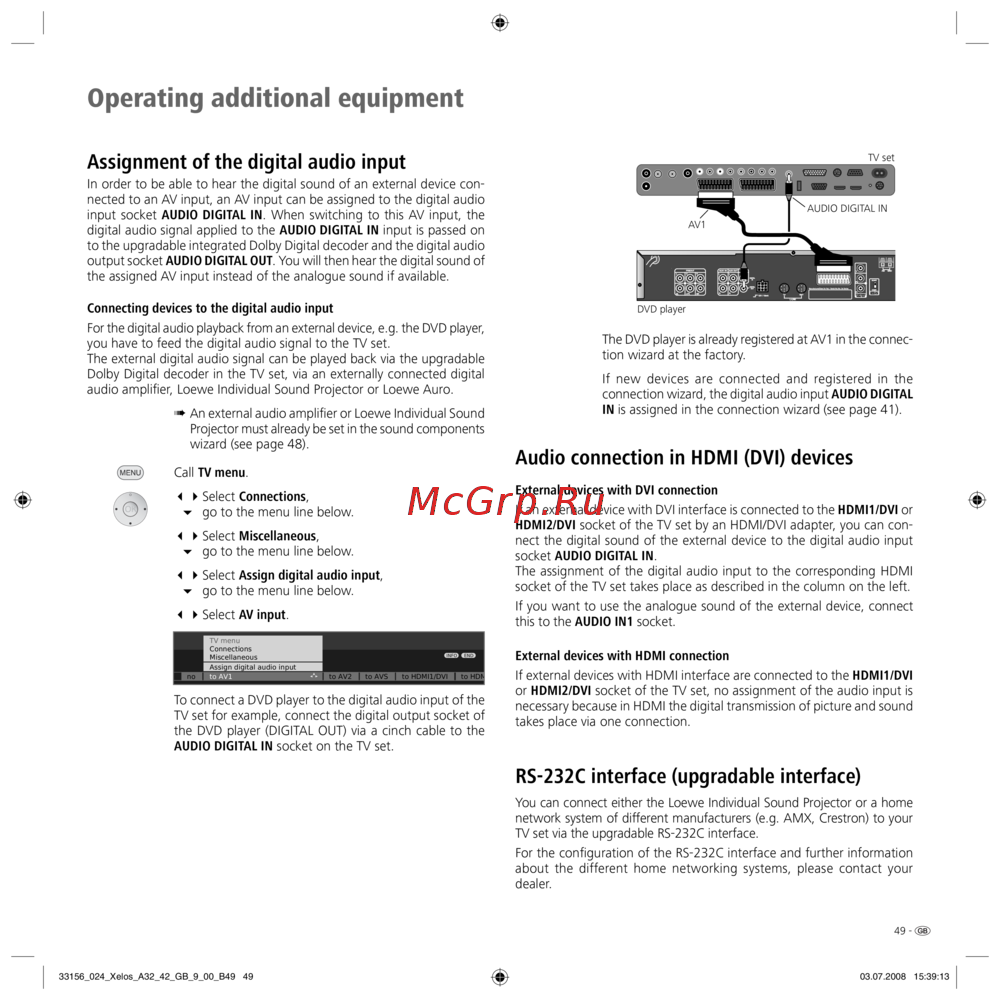

![Loewe Xelos A 42 HD+ 100 [49/66] Rs 232c interface upgradable interface](/img/pdf.png)
Loewe Xelos A 42 HD+ 100 [49/66] Rs 232c interface upgradable interface
![Loewe Xelos A 42 HD+ 100 [49/66] Assignment of the digital audio input](/views2/1020519/page49/bg31.png)
49 -
Assignment of the digital audio input
In order to be able to hear the digital sound of an external device con-
nected to an AV input, an AV input can be assigned to the digital audio
input socket AUDIO DIGITAL IN. When switching to this AV input, the
digital audio signal applied to the AUDIO DIGITAL IN input is passed on
to the upgradable integrated Dolby Digital decoder and the digital audio
output socket AUDIO DIGITAL OUT. You will then hear the digital sound of
the assigned AV input instead of the analogue sound if available.
Connecting devices to the digital audio input
For the digital audio playback from an external device, e.g. the DVD player,
you have to feed the digital audio signal to the TV set.
The external digital audio signal can be played back via the upgradable
Dolby Digital decoder in the TV set, via an externally connected digital
audio amplifier, Loewe Individual Sound Projector or Loewe Auro.
➠ An external audio amplifier or Loewe Individual Sound
Projector must already be set in the sound components
wizard (see page 48).
Call TV menu.
Select Connections,
go to the menu line below.
Select Miscellaneous,
go to the menu line below.
Select Assign digital audio input,
go to the menu line below.
Select AV input.
To connect a DVD player to the digital audio input of the
TV set for example, connect the digital output socket of
the DVD player (DIGITAL OUT) via a cinch cable to the
AUDIO DIGITAL IN socket on the TV set.
The DVD player is already registered at AV1 in the connec-
tion wizard at the factory.
If new devices are connected and registered in the
connection wizard, the digital audio input AUDIO DIGITAL
IN is assigned in the connection wizard (see page 41).
Audio connection in HDMI (DVI) devices
External devices with DVI connection
If an external device with DVI interface is connected to the HDMI1/DVI or
HDMI2/DVI socket of the TV set by an HDMI/DVI adapter, you can con-
nect the digital sound of the external device to the digital audio input
socket AUDIO DIGITAL IN.
The assignment of the digital audio input to the corresponding HDMI
socket of the TV set takes place as described in the column on the left.
If you want to use the analogue sound of the external device, connect
this to the AUDIO IN1 socket.
External devices with HDMI connection
If external devices with HDMI interface are connected to the HDMI1/DVI
or HDMI2/DVI socket of the TV set, no assignment of the audio input is
necessary because in HDMI the digital transmission of picture and sound
takes place via one connection.
RS-232C interface (upgradable interface)
You can connect either the Loewe Individual Sound Projector or a home
network system of different manufacturers (e.g. AMX, Crestron) to your
TV set via the upgradable RS-232C interface.
For the configuration of the RS-232C interface and further information
about the different home networking systems, please contact your
dealer.
Operating additional equipment
TV set
DVD player
AUDIO DIGITAL IN
AV1
to AV2to AV1
Assign digital audio input
TV menu
Connections
Miscellaneous
to AVS to HDMI1/DVI to HD
M
no
ENDINFO
