52
4
4. Managing Your Network
This chapter describes how to perform network management tasks with your wireless modem
router. This chapter includes these sections:
• Upgrade the Firmware
• Back Up, Restore, and Erase Your Settings
• Router Status and Usage Statistics
• View Attached Devices
• Run Diagnostics and Reboot
• Configure Remote Management on page 62
Upgrade the Firmware
The wireless modem router’s firmware (routing software) is stored in flash memory. By
default, when you log in to your wireless modem router, it automatically checks the
NETGEAR website for new firmware and alerts you if there is a newer version.

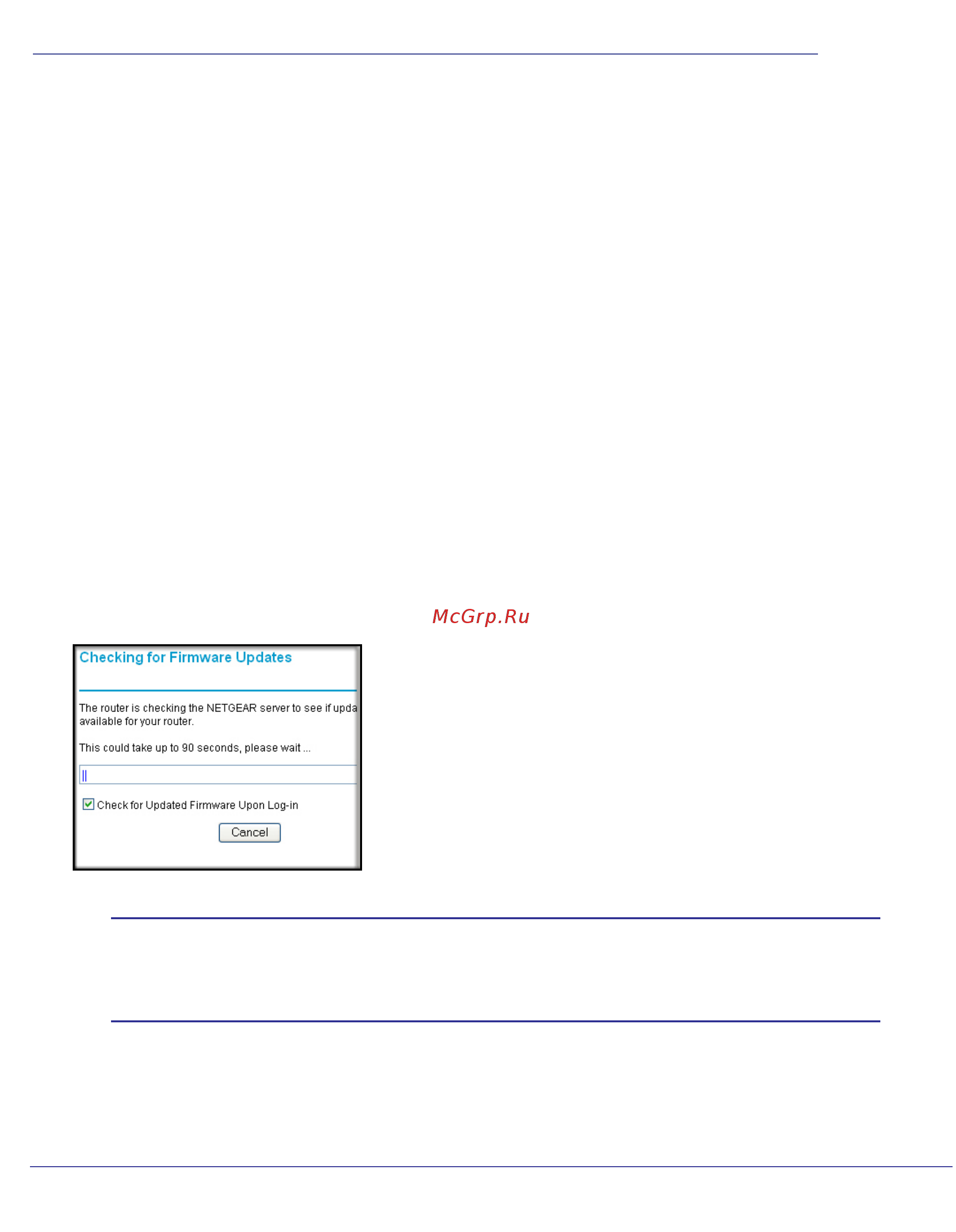

Note: To turn off the automatic firmware check at login, clear the Check
for Updated Firmware Upon Log-in check box on the Router
Upgrade screen.
