(f) Mounting the assembly to the main body

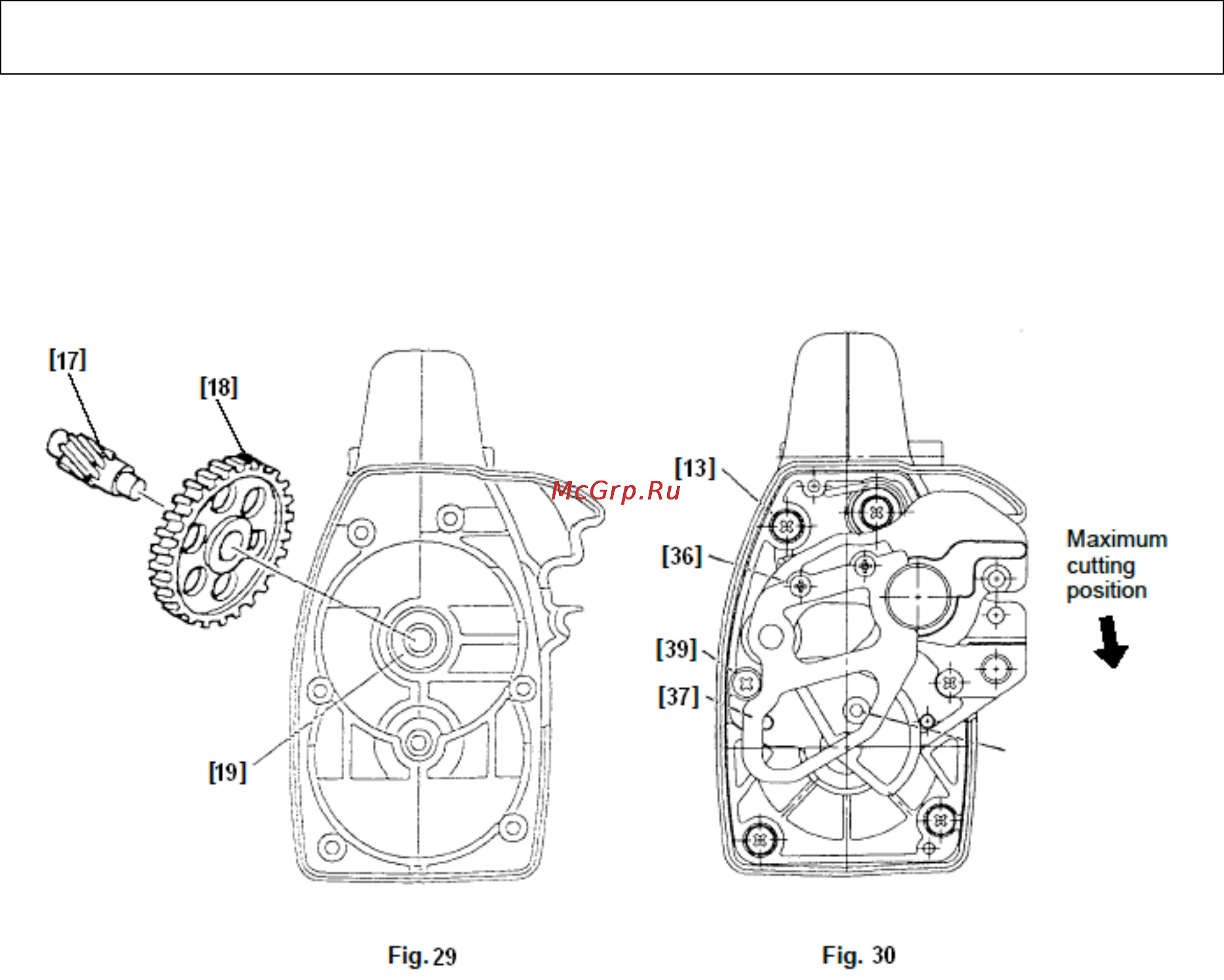

(i) Insert the Ball Bearing 608VVC2PS2L [19] in the ball bearing chamber of Housing (A) [1]
(Fig. 29).
(ii) Press-fit the Third Pinion [17] in the Second Gear [18] and insert it in the Ball Bearing
608VVC2PS2L [19] of Housing (A) [1] (Fig. 29). At this time, apply grease (Nippeco
SEP-3A) to the outer circumference of the Second Gear [18].
(iii) Mount the Gear Cover [15] to the housing keeping Bracket (A) [38] at the maximum
cutting position in the same manner as the removal procedure (be careful of the spring
force) (Fig. 30).
(iv) Tighten the four Tapping Screws (W/Flange) D5 x 25 (Black) [13] and the two Tapping
Screws D5 x 35 [39] (Fig. 41).
CAUTION: Check that there is no scratch, dust or chips on the surfaces of the cam
and the roller.
(g) Reassembly of the Return Plate [37]
Align the Return Plate [37] with the Roller Pin [49] and Bolt (A) [35]. Insert the pin of the
Cam Shaft [50] in the hole of the Return Plate [37] and secure them with the two Seal
Lock Screws (W/SP. Washer) M4 x 12 [36] (Fig. 30).
