Configuration Guide 207
Configuring Spanning Tree Spanning Tree
·
Same region name
·
Same revision level
·
Same VLAN-Instance mapping
MST Instance
The MST instance is a spanning tree running in the MST region. Multiple MST instances can be
established in one MST region and they are independent of each other. As is shown in Figure 1-4,
there are three instances in a region, and each instance has its own root bridge.

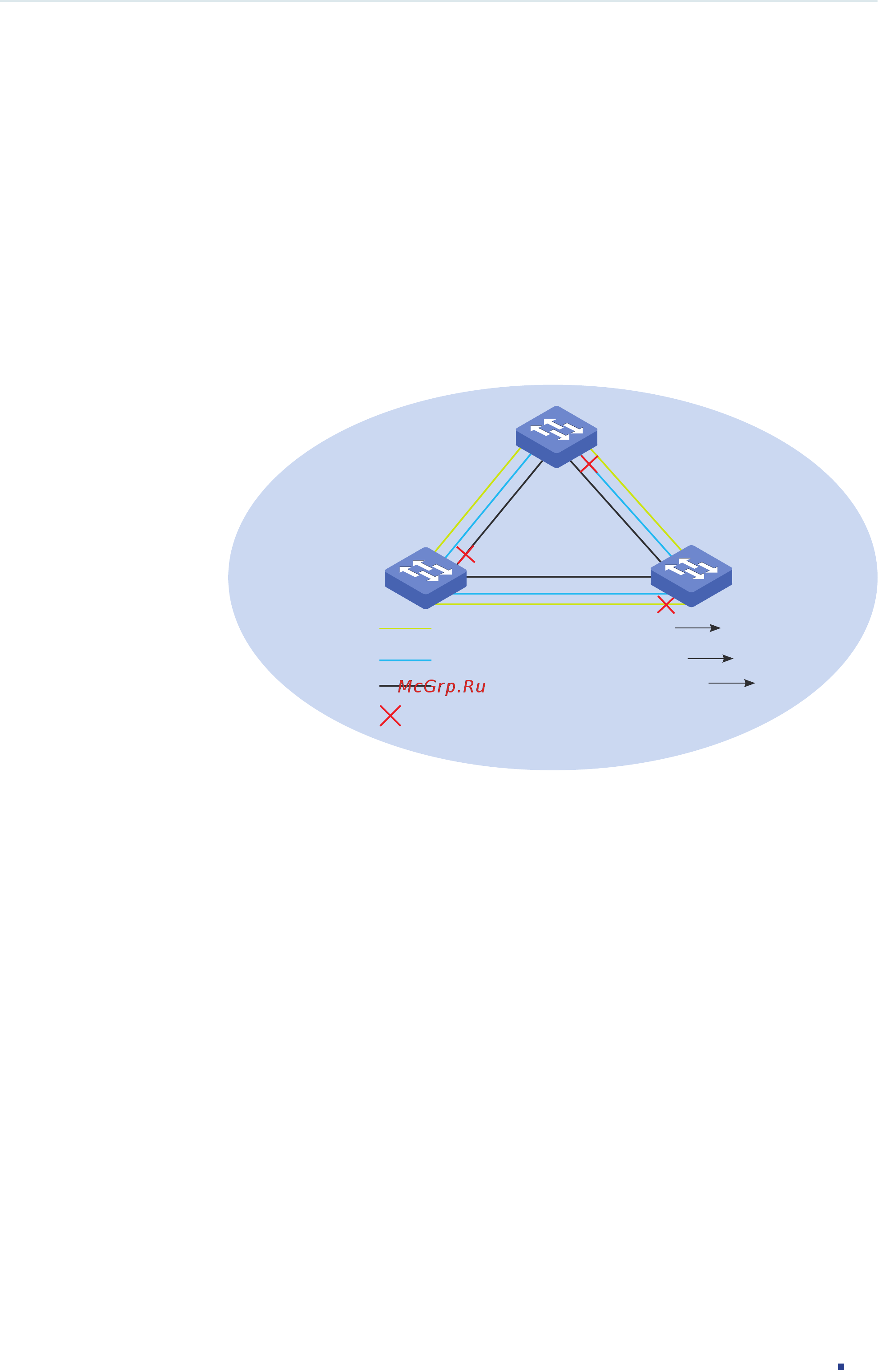

Figure 1-4 MST Region
A
C
Instance 1 (root bridge: A) VLAN 3 Instance 1
VLAN 4-5 Instance 2
Other VLANs IST
Instance 2 (root bridge: B)
IST (root bridge: C)
Blocked port
B
VLAN-Instance Mapping
VLAN-Instance Mapping describes the mapping relationship between VLANs and instances.
Multiple VLANs can be mapped to a same instance, but one VLAN can be mapped to only one
instance. As Figure 1-4 shows, VLAN 3 is mapped to instance 1, VLAN 4 and VLAN 5 are mapped
to instance 2, the other VLANs are mapped to the IST.
IST
The Internal Spanning Tree, which is a special MST instance with an instance ID of 0. By default, all
the VLANs are mapped to IST.
CST
The Common Spanning Tree, which is the spanning tree connects all MST regions. As is shown in
Figure 1-3, region1-region 4 are connected by the CST.
