Tp-Link Archer C9 [11/119] 2 the back panel
![Tp-Link Archer C9 [11/119] 2 the back panel](/views2/1210275/page11/bgb.png)
7
Chapter 1
Get to Know About Your Router

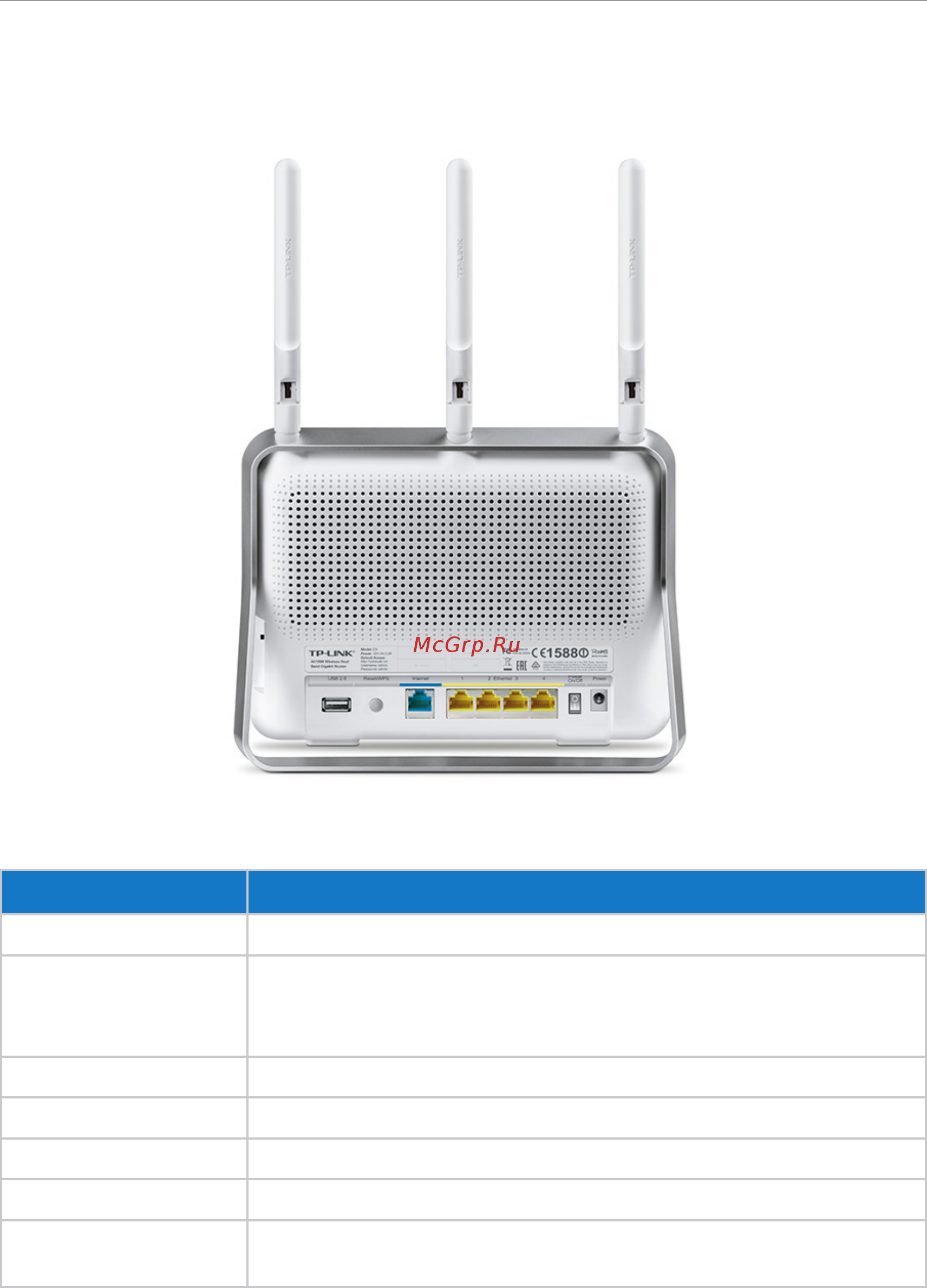

1. 3. 2. The Back Panel
The following parts (view from left to right) are located on the rear panel.
Item Description
USB 2.0 Port For connecting to a 2.0 USB storage device or a 2.0 USB printer.
Reset/WPS Button
Press this button for less than 5 seconds to enable the WPS function.
Press this button for more than 5 seconds to reset the router to its factory default
settings.
Internet Port For connecting to the DSL/Cable modem, or Ethernet.
Ethernet Ports (1/2/3/4) For connecting the router to your PC or other Ethernet network devices.
Power On/Off Button Press this button to power on or off the router.
Power Port For connecting the router to power socket via the provided power adapter.
Antennas
Used for wireless operation and data transmit. Upright them for the best Wi-Fi
performance.
