![Tp-Link Archer C9 [85/119] Set up system time](/img/pdf.png)
Tp-Link Archer C9 [85/119] Set up system time
![Tp-Link Archer C9 [85/119] Set up system time](/views2/1210275/page85/bg55.png)
81
Chapter 12
Manage the Router
12. 1. Set Up System Time
System time is the time displayed while the router is running. The system time you
configure here will be used for other time-based functions like Parental Controls. You
can manually set how to get the system time.
Visit http://tplinkwifi.net, and log in with the username and password you set for the

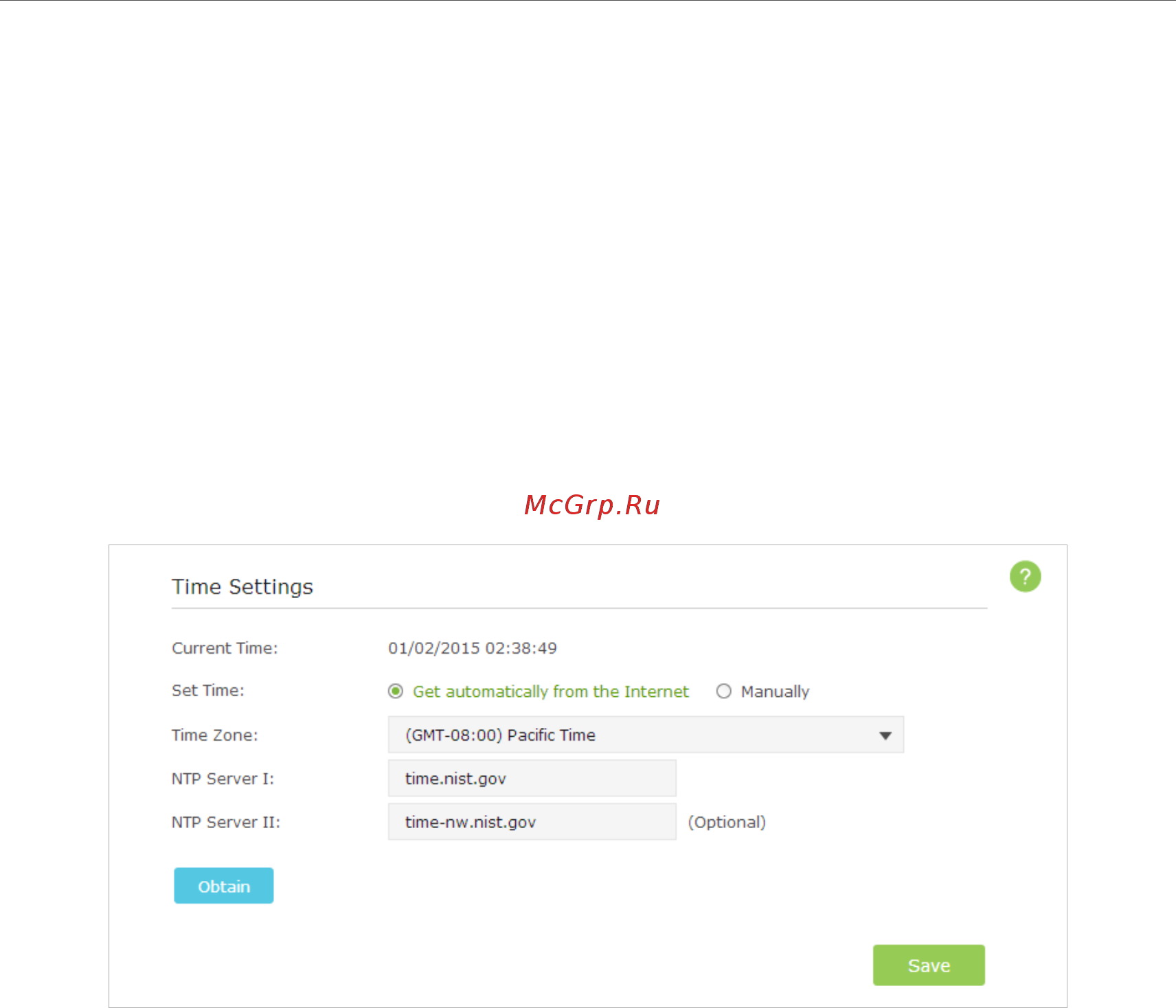

router. Go to Advanced > System Tools > Time Settings.
¾ To automatically synchronize the time:
1. In the Set Time field, select Get automatically from the Internet.
2. Select your local Time Zone from the drop-down menu.
3. In the NTP Server I fileld, enter the IP address or domain name of your desired NTP
Server.
4. In the NTP Server II fileld, enter the IP address or domain name of the second NTP
Server. (Optional)
5. Click Obtion to get the current Interent time.
6. Click Save to make the settings effective.
¾ To manually set the date and time:
1. In the Set Time field, select Manually.
