Tp-Link Archer C9 [44/119] Media sharing

Chapter 6

USB Application

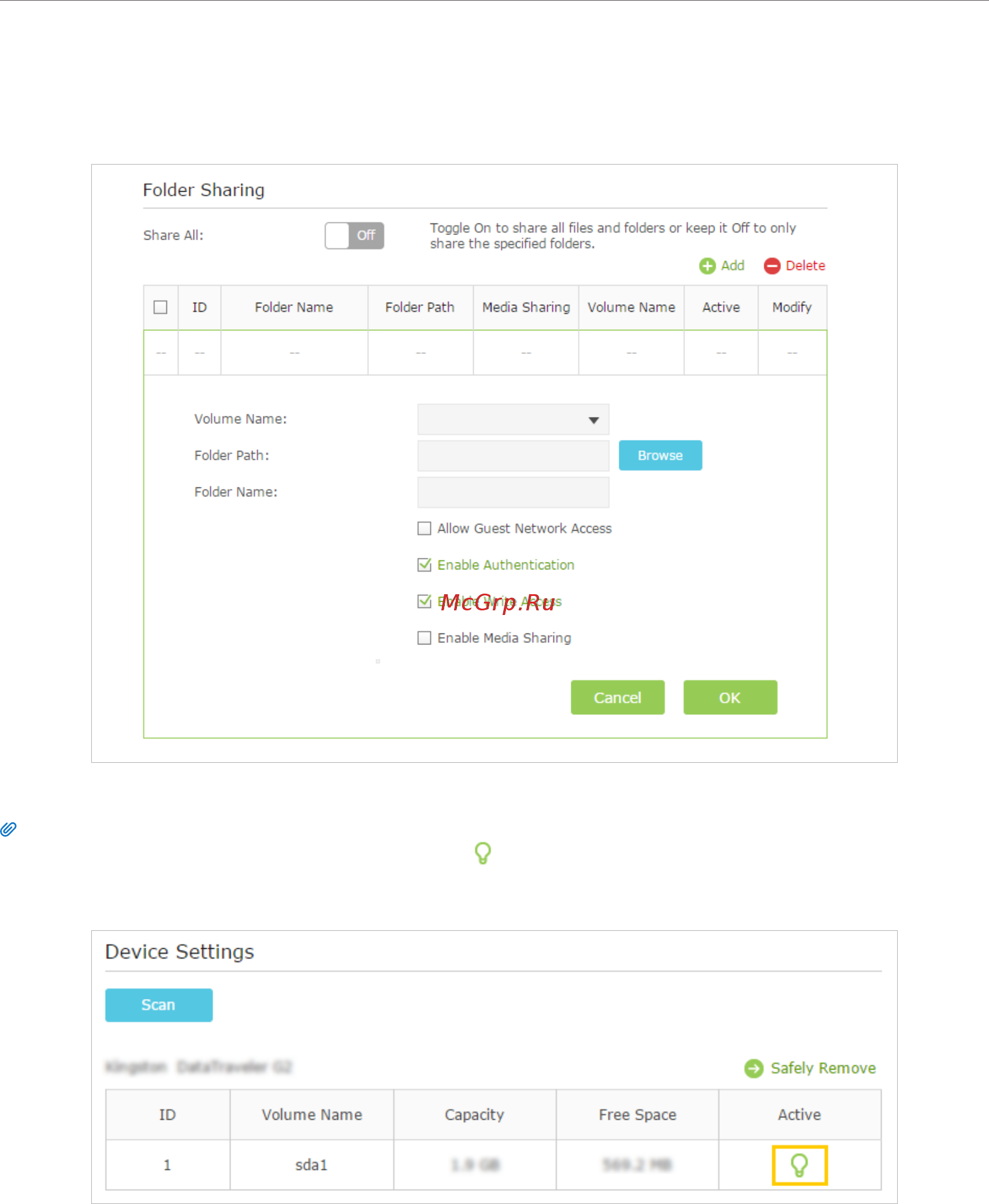

4. Select Enable Authentication. If you allow network clients to modify this folder, select

Enable Write Access.

5. Click OK.

Tips:

The router can share 32 volumes at most. You can click on the page to detach the corresponding volume you do

not need to share.

6. 3. Media Sharing

The feature of Media Sharing allows you to view photos, play music and watch movies

stored on the USB disk directly from DLNA-supported devices, such as your computer,

pad and PS2/3/4.
