89
Chapter 12
Manage the Router

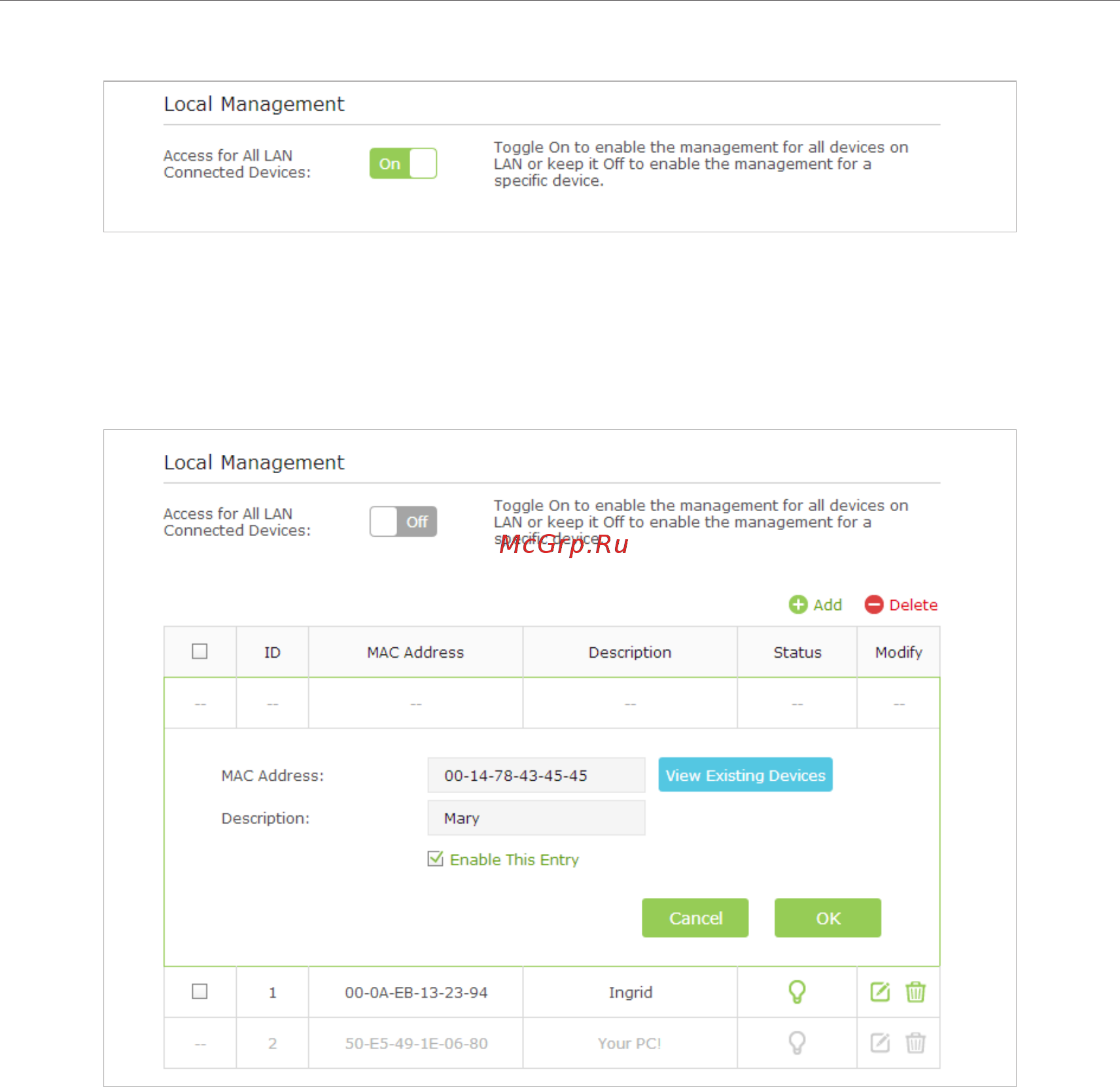

• Allow specific devices to manage the router:
1 ) Toggle off Access for All LAN Connected Devices.
2 ) Click Add.
3 ) Click View Existing Devices and select the device to manage the router from
the Existing Devices list, or enter the MAC address of the device manually.
4 ) Specify a Description for this entry.
5 ) Select the Enable This Entry checkbox.
6 ) Click OK to make the settings effective.
12. 8. Remote Management
This feature allows you to control remote devices’ authority to manage the router.
1. Visit http://tplinkwifi.net, and log in with the username and password you set for the
router.
2. Go to Advanced > System Tools > Administration and complete the settings In
Remote Management section according to your needs.
• Forbid all devices to manage the router remotely:
Select Disable Remote Management and click Save.
