33
Chapter 6
USB Application
6. 1. 2. Customize Your Settings
¾ To Only Share Specific Content
By default, Share All is enabled so all content on the USB disk is shared. If you want to
only share specific folders, follow the steps below:
1. Visit http://tplinkwifi.net, then log in with the username and password you set for the
router.

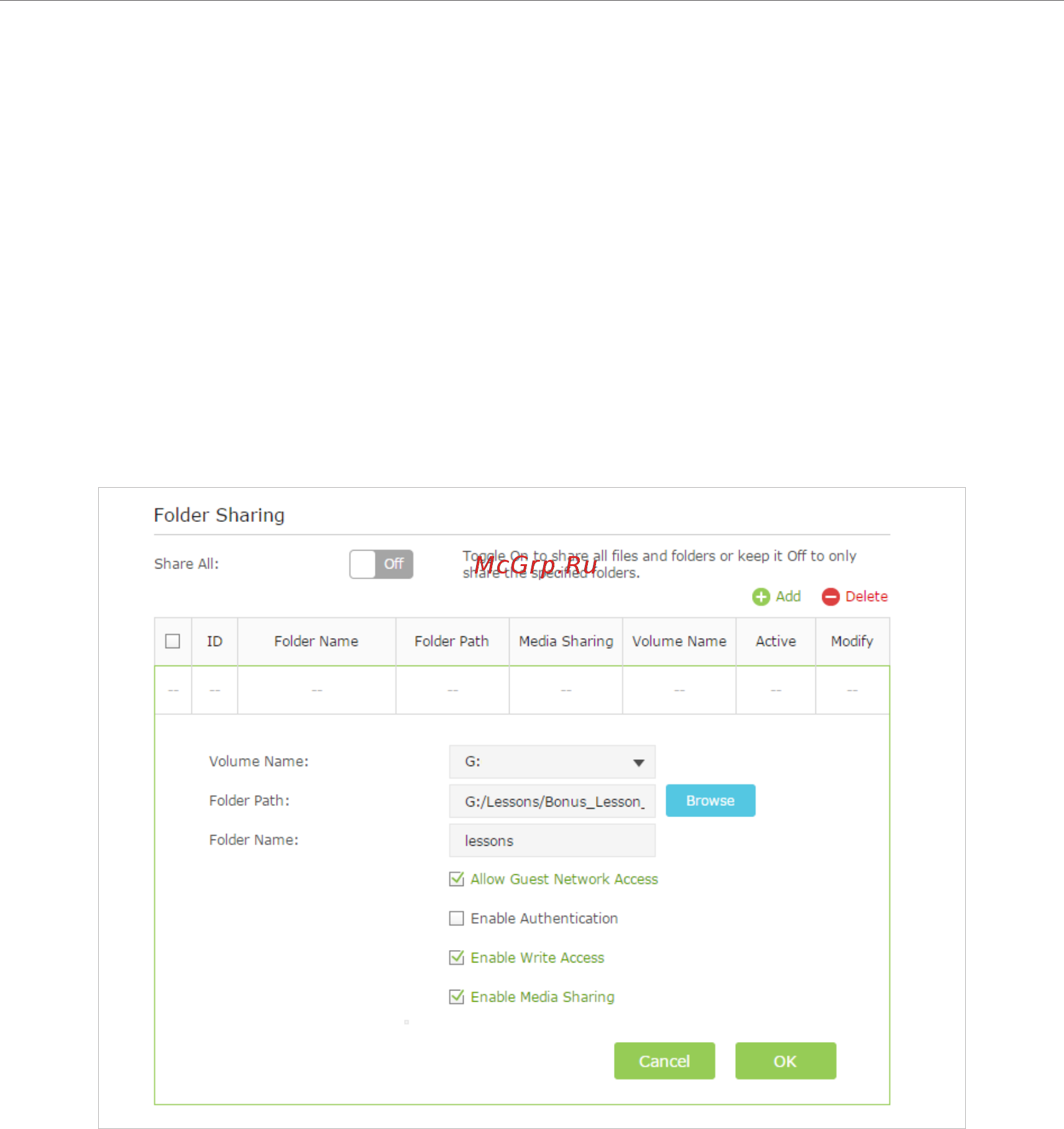

2. Go to Basic > USB Settings > Sharing Access. Focus on the Folder Sharing section.
3. Click the button to disable Share All, then click Add to add a new sharing folder.
4. Select the Volume Name and Folder Path, then enter a Folder Name as you like.
5. Decide the way you share the folder:
• Allow Guest Network Access: If you select this check box, guest network can
access to the this folder.
• Enable Authentication: Select to enable authentication for this folder sharing,
and you will be required to use a username and password to access the USB
disk. Refer to To Set up Authentication for Data Security to learn more.
• Enable Write Access: If you select this check box, network clients can modify
this folder.
• Enable Media Sharing: Select to enable media sharing for this folder, and you
can view photos, play music and watch movies stored on the USB disk directly
from DLNA-supported devices. Click Media Sharing to learn more.
6. Click OK.
