Chapter 4

Set Up Internet Connection

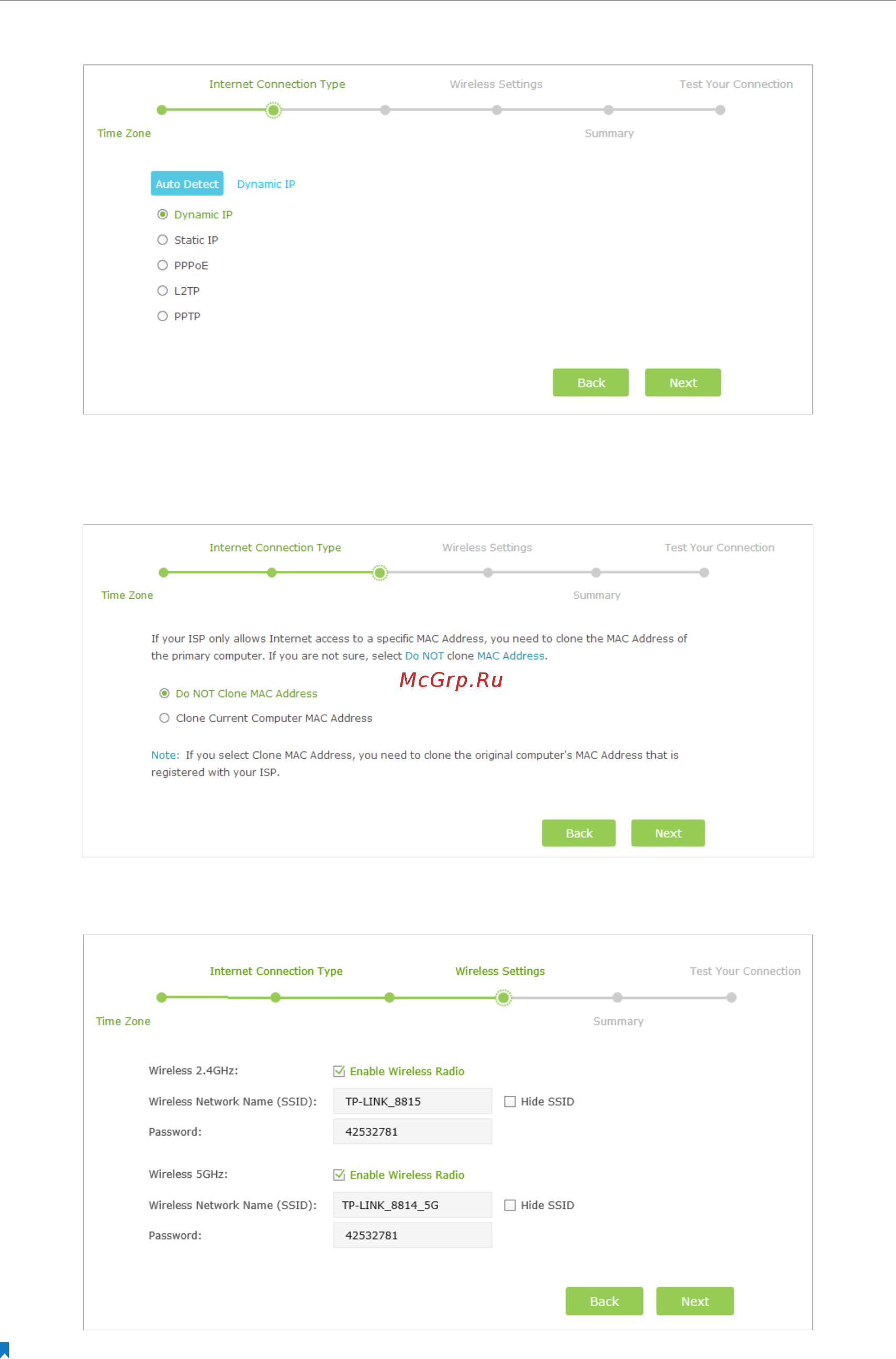

6. Follow the instructions on the page to decide whether to clone MAC Address. Click

Next.

7. Configure your wireless settings and click Next.

Note:

1. You may customize your 2.4GHz/5GHz SSID and password. Once done, the wireless connection will disconnect

automatically, and you must then use the new SSID/password to regain access to the Internet.

2. Tick Hide SSID if you want to hide this wireless network name.
