Chapter 6

USB Application

1 ) Visit http://tplinkwifi.net, then log in with the username and password you set

for the router.

2 ) Go to Advanced > USB Settings > Sharing Access.

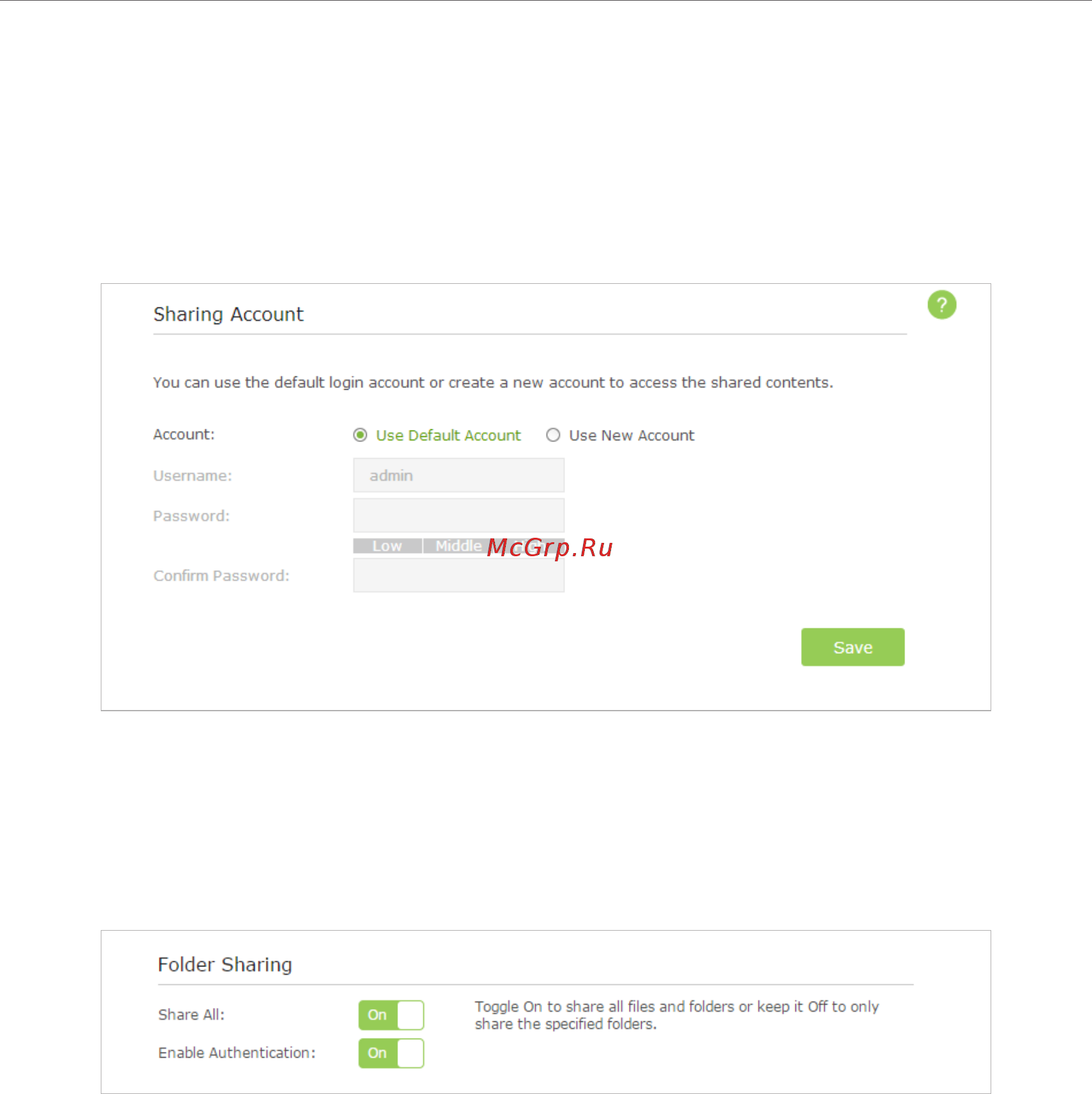

3 ) Choose to Use default Account (admin) or Use New Account and click Save.

4 ) Enable Authentication to apply the sharing account.

• If you leave Share All enabled, click the button to enable Authentication for all

folders.
