KL1508Ai / KL1516Ai User Manual
152
Adapter Firmware Upgrade (Mainboard and KVM
Adapter Cables)
The Adapter Firmware page is used to upgrade the firmware of the mainboard
and KVM adapter cables.
Mainboard Firmware Upgrade
To perform this upgrade, do the following:
1. Download the latest mainboard firmware package to your computer.
2. Log in to the KL1508Ai / KL1516Ai; and click the Maintenance tab; and
select the Adapter Firmware menu item.
3. Click Browse; navigate to the directory that the new mainboard firmware
package file is in and select the file.
Note: The mainboard firmware package contain software for device
mainboards as well as KVM adapter cables.

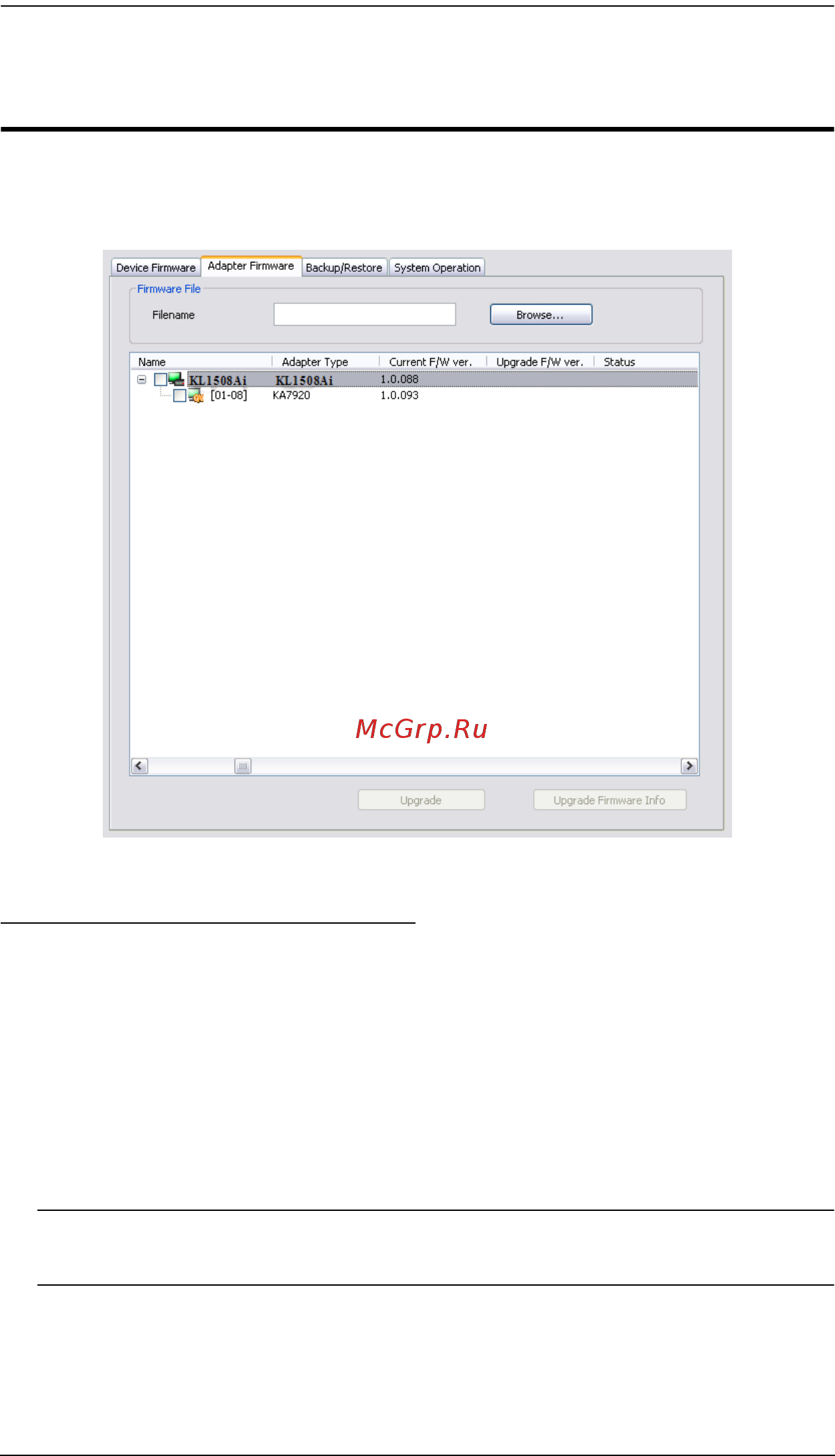

4. The Adapter Firmware menu will now display a list of the mainboard
firmware versions that are stored in the chosen file.
