Aten KL1516Ai [201/239] The log server main screen

Chapter 17. The Log Server

185

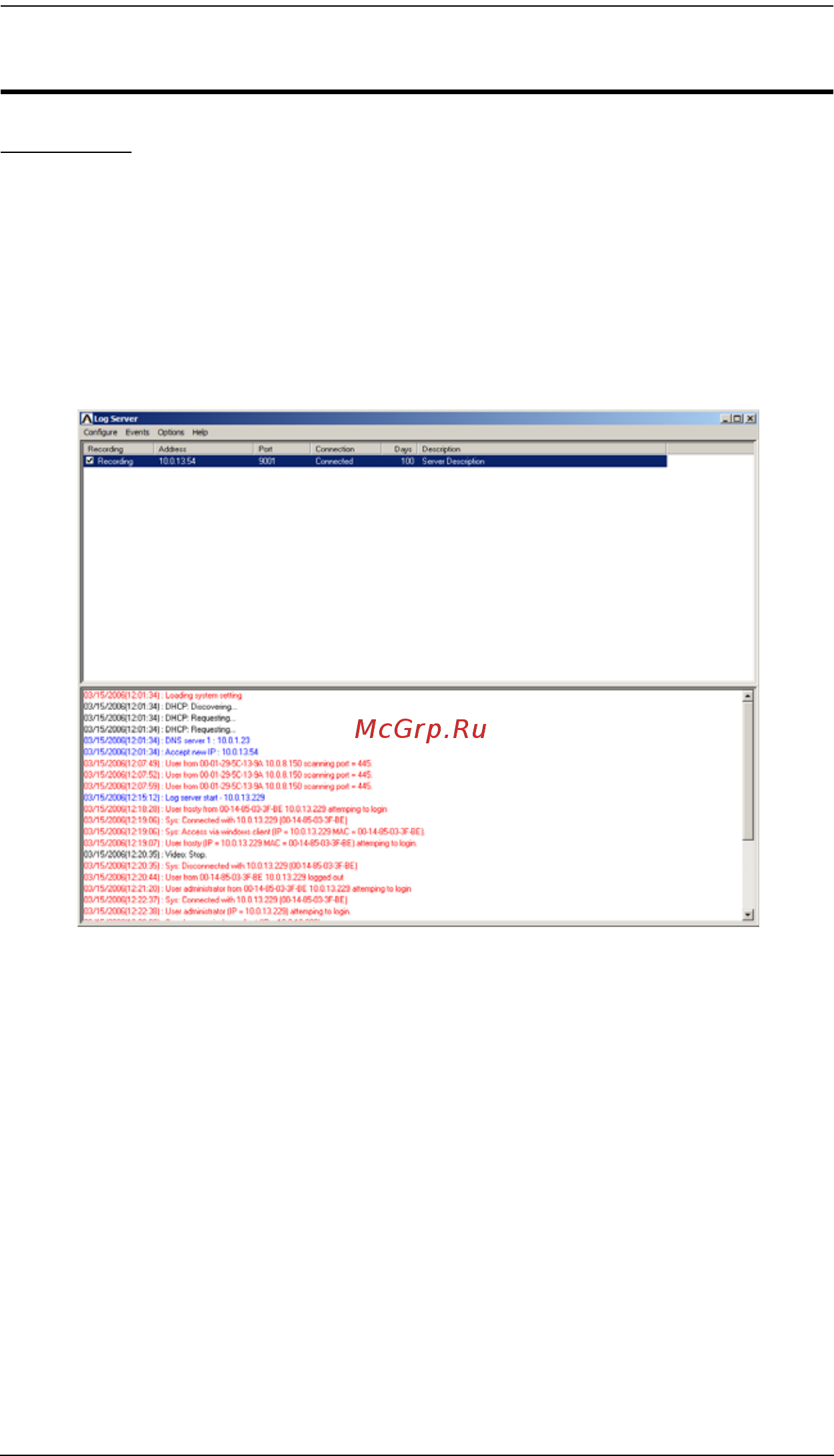

The Log Server Main Screen

Overview

The Log Server Main Screen is divided into two main panels.

 The upper (List) panel lists the KL1508Ai / KL1516Ai units that have

been selected for the Log Server to track (see Configure, page 181).

 The lower (Event) panel displays the log events for the currently selected

KL1508Ai / KL1516Ai (the highlighted one - if there are more than one).

To select a KL1508Ai / KL1516Ai unit in the list, simply click on it.
