KL1508Ai / KL1516Ai User Manual
180
Starting Up
To bring up the Log Server, either double click the program icon, or key in the
full path to the program on the command line. The first time you run it, a screen

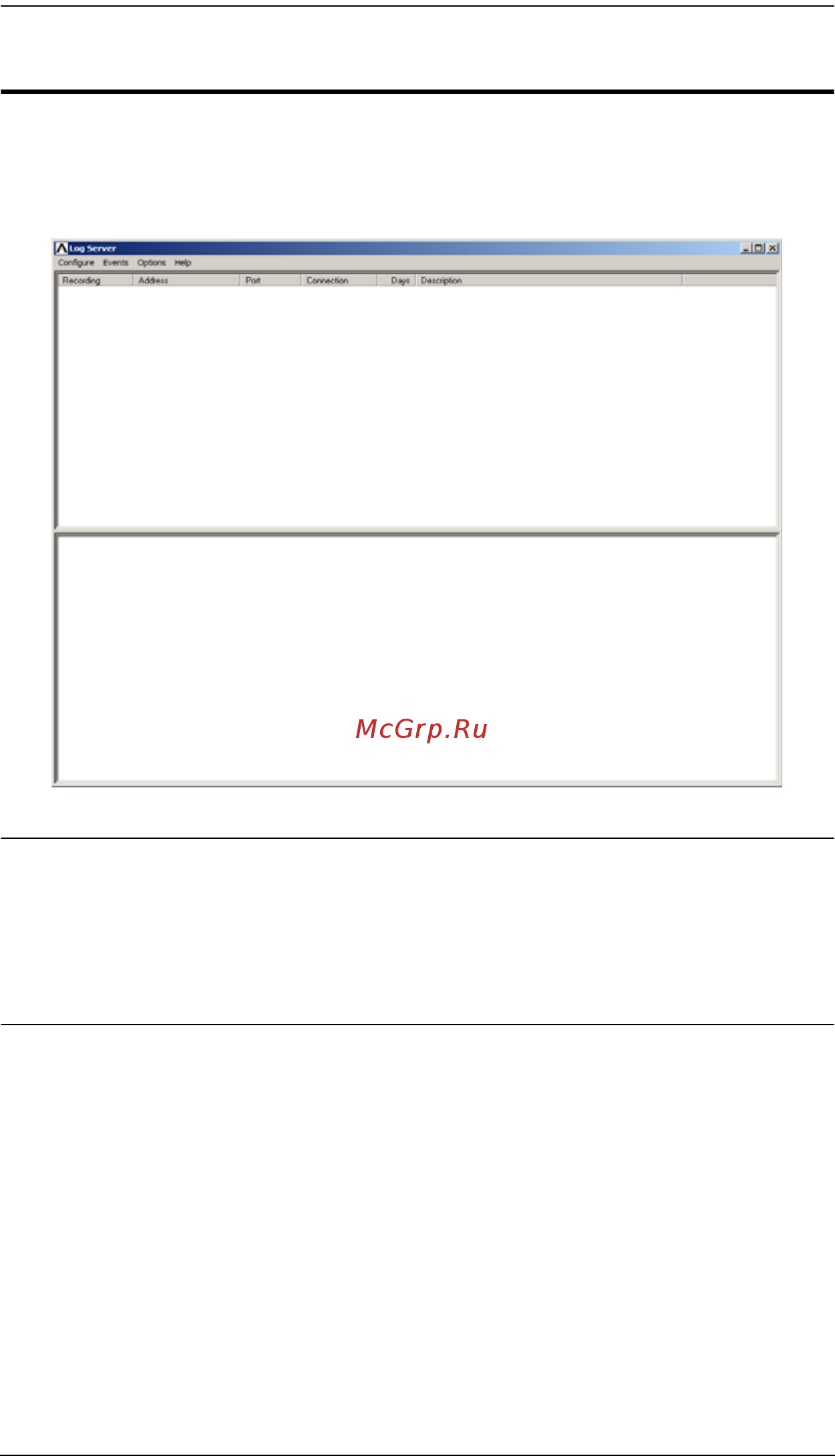

similar to the one below appears:
Note: 1. The MAC address of the Log Server computer must be specified on
the Service Configuration page of the Administrator Utility (see
page 130).
2. The Log Server requires the Microsoft Jet OLEDB 4.0 driver in order
to access the database.
The screen is divided into three components:
A Menu Bar at the top
A panel that will contain a list of KL1508Ai / KL1516Ai units in the
middle (see The Log Server Main Screen, page 185, for details).
A panel that will contain an Events List at the bottom
Each of the components is explained in the sections that follow.
