Руководство пользователя Страница: 3

Aten KL1516Ai [3/239] Sj t 11364 2006

KL1508Ai / KL1516Ai User Manual

iii

RoHS

This product is RoHS compliant.

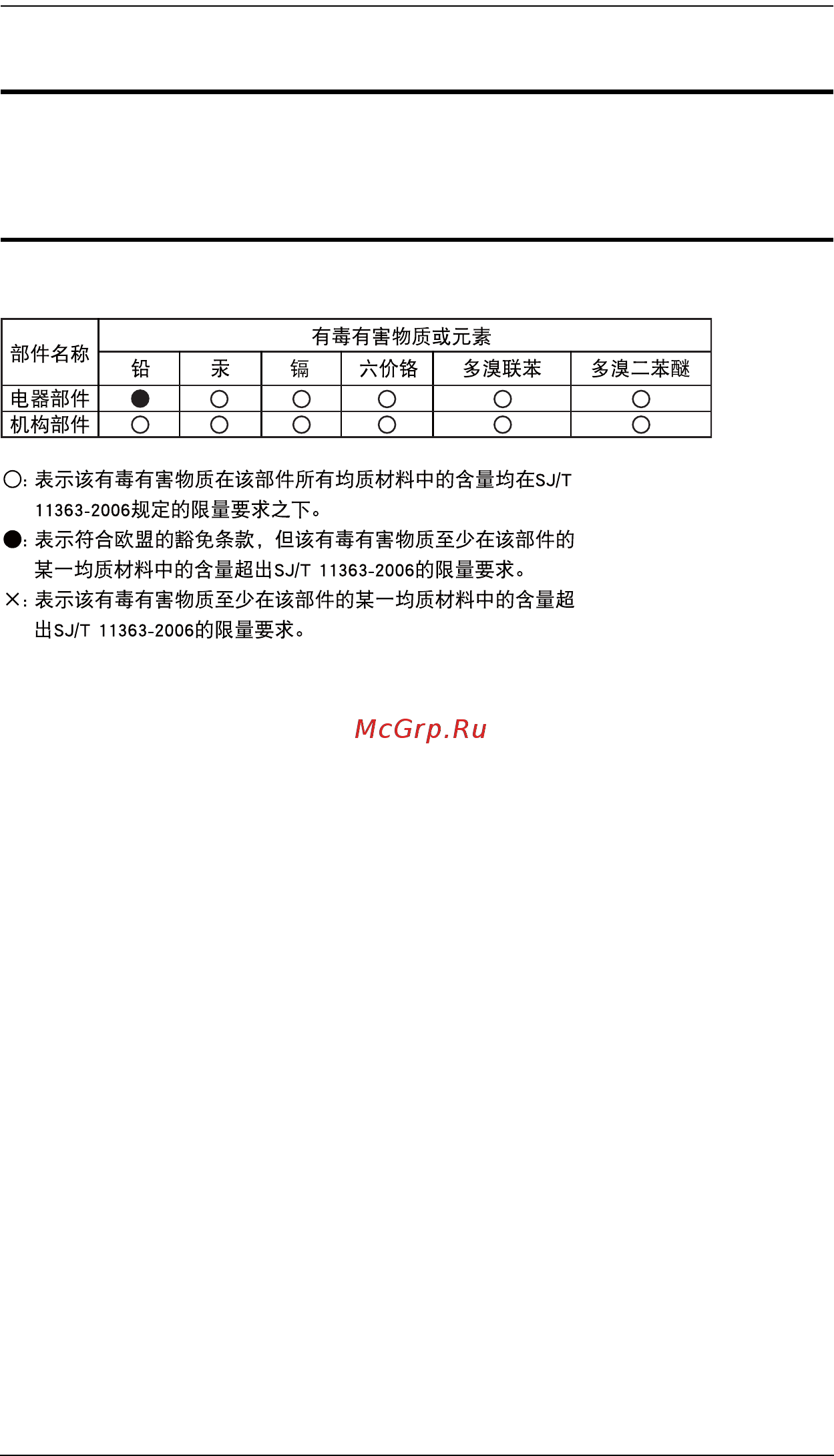

SJ/T 11364-2006

The following contains information that relates to China.
