VC010 / VC060 / VC080 User Manual
18
Video Data

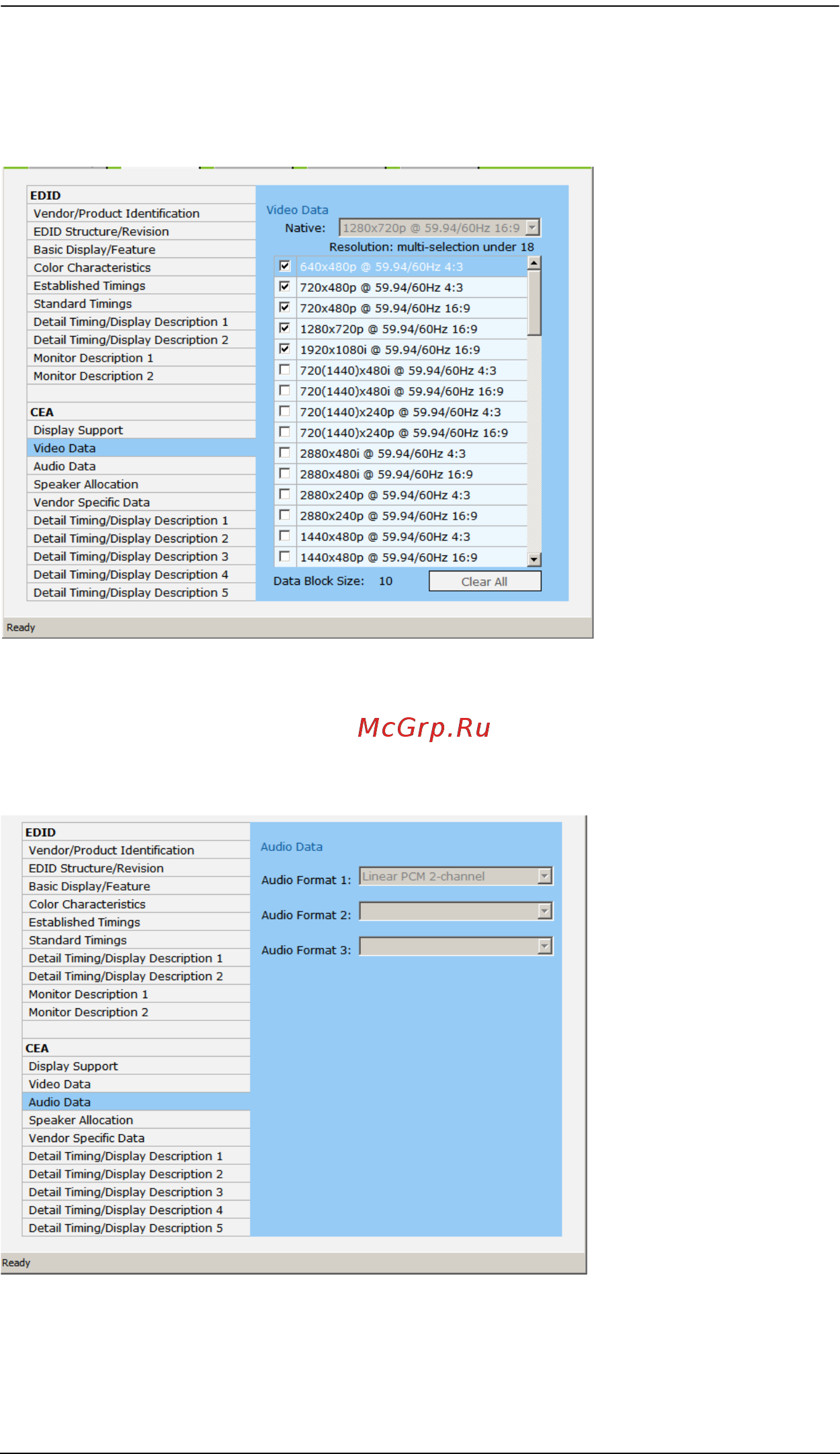

This screen lists additional video resolution/timing displays that may be
supported by other devices, other than PC monitors (for example 1080i). Select
the resolutions that work with the attached monitor/display device.
Audio Data
This screen lets you select advanced audio configurations for your device. Use
the drop down menu to select the audio format (1~3) applicable to your audio
output device.
