VC010 / VC060 / VC080 User Manual
19
Vendor Specific Data

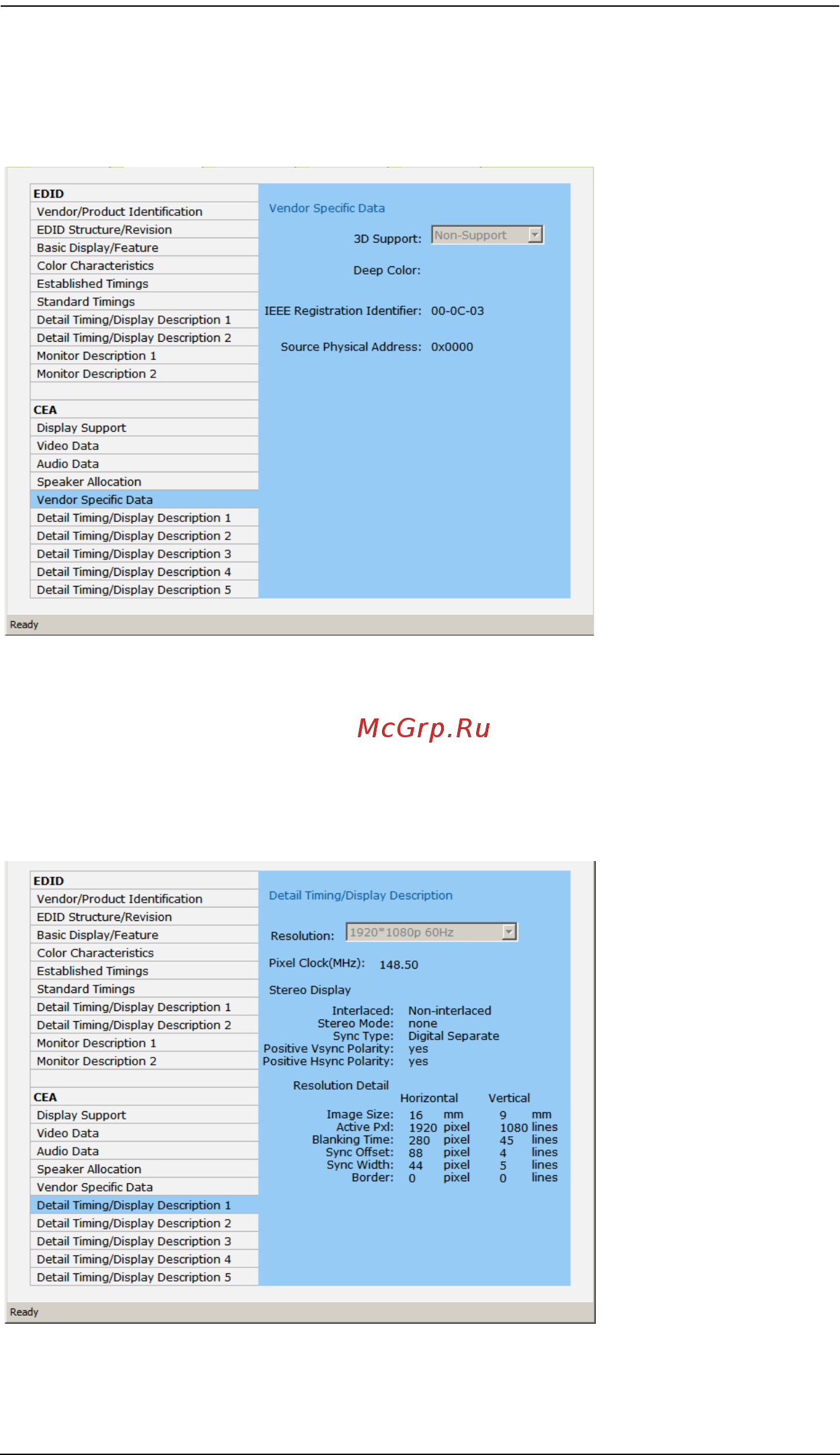

This screen shows other advanced video parameters supported by your display
device. You can select whether to enable/disable 3D support from your device
if the feature is supported.
Detail Timing / Display Description
This screen gives more video resolution options, and provides resolution/
timing details (in addition to those specified in the EDID structure). In the drop
down menu, choose a resolution with values that fit the attached monitor/
display device.
