Chapter 2
16
H81H3-TI2 USER MANUAL

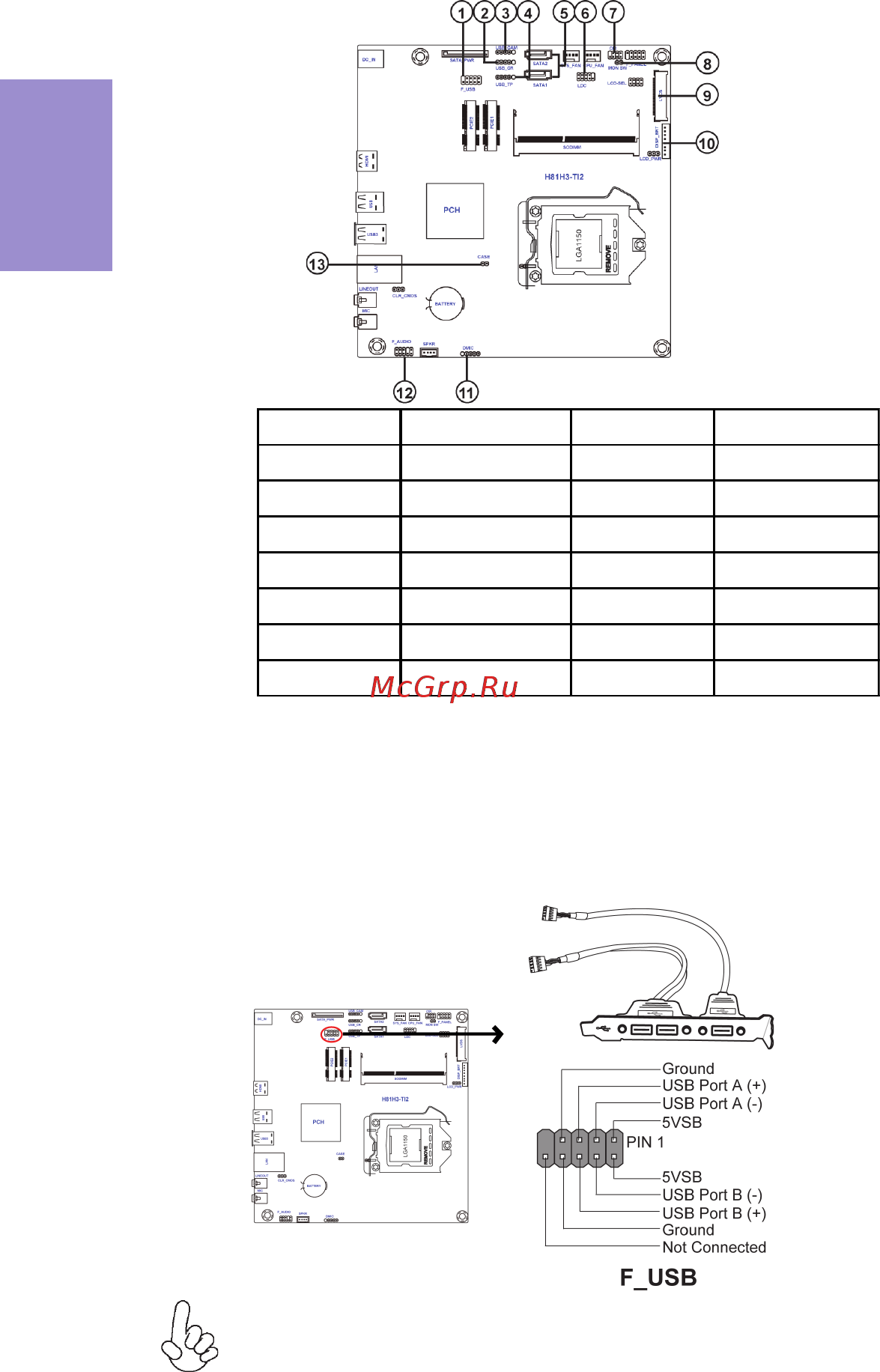

2-4-5. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 F_USB 8 MON_SW
2USB_CR9 LVDS
3USB_CAM10DISP_BRT
4USB_TP11DMIC
5 SATA1~2 12 F_AUDIO
6LDC 13CASE
7CIR-- --
The motherboard has one USB 2.0 headers supporting two USB 2.0 ports.
Additionally, some computer cases have USB 2.0 ports at the front of the case. If you
have this kind of case, use auxiliary USB 2.0 connector to connect the front-mounted
ports to the motherboard.
1. F_USB: Front Panel USB 2.0 header
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
