Chapter 2

H81H3-TI2 USER MANUAL

The front panel audio header allows the user to install auxiliary front-oriented mi-

crophone and line-out ports for easier access. This header supports HD audio by

default. If you want connect an AC

’ 97 front panel audio to HD onboard headers,

please set as below picture.

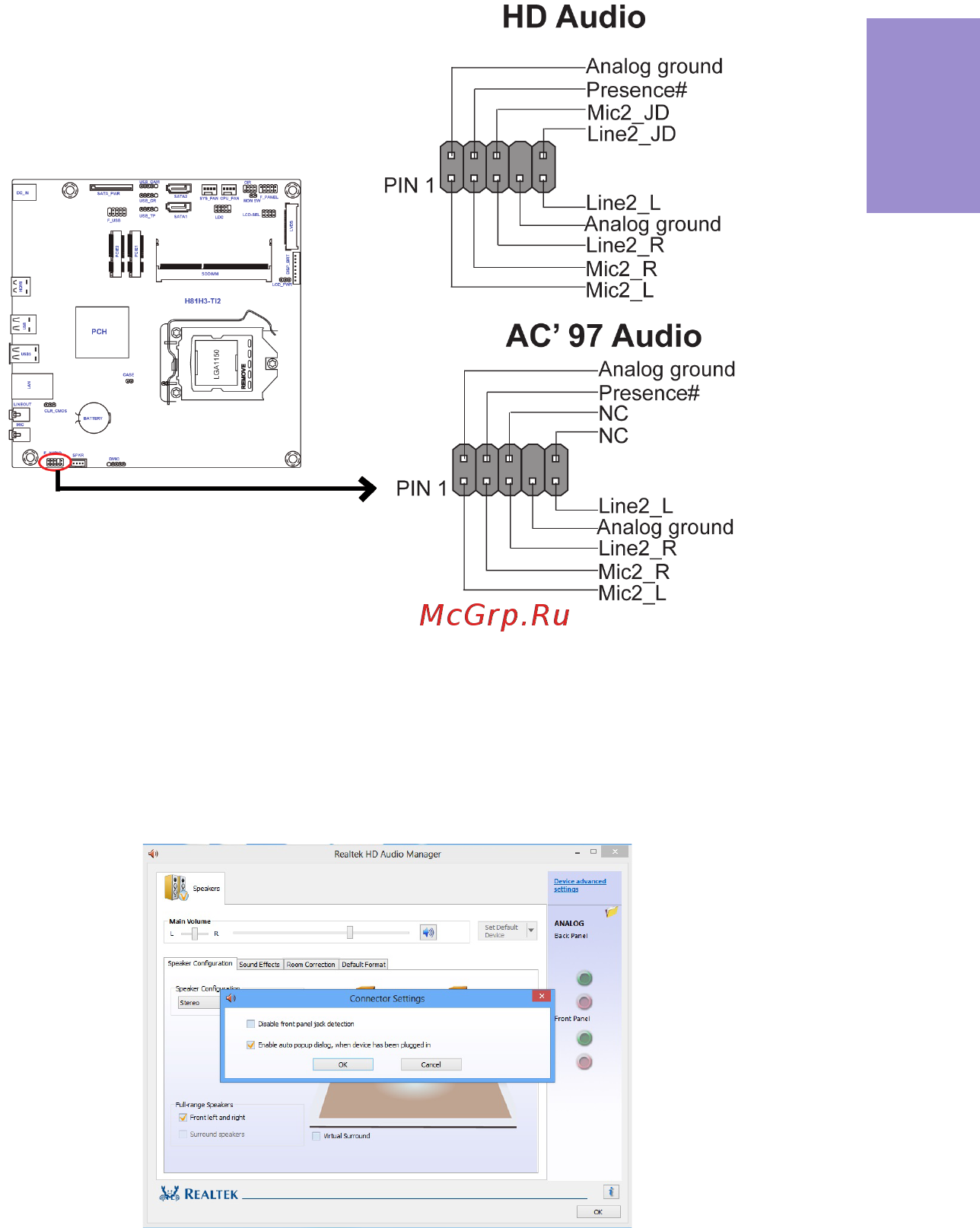

12. F_AUDIO: Front panel audio header

If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel

Detect ”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel

Detect ”.

* For reference only

AC’ 97 Audio Configuration: To enable the front panel audio connector to

support AC97 Audio mode.
