Руководство пользователя Страница: 30

ECS Elitegroup H81H3-TI2 (V1.0) [30/60] H81h3 ti2 user manual

Chapter 2

H81H3-TI2 USER MANUAL

This concludes Chapter 2. The next chapter covers the BIOS.

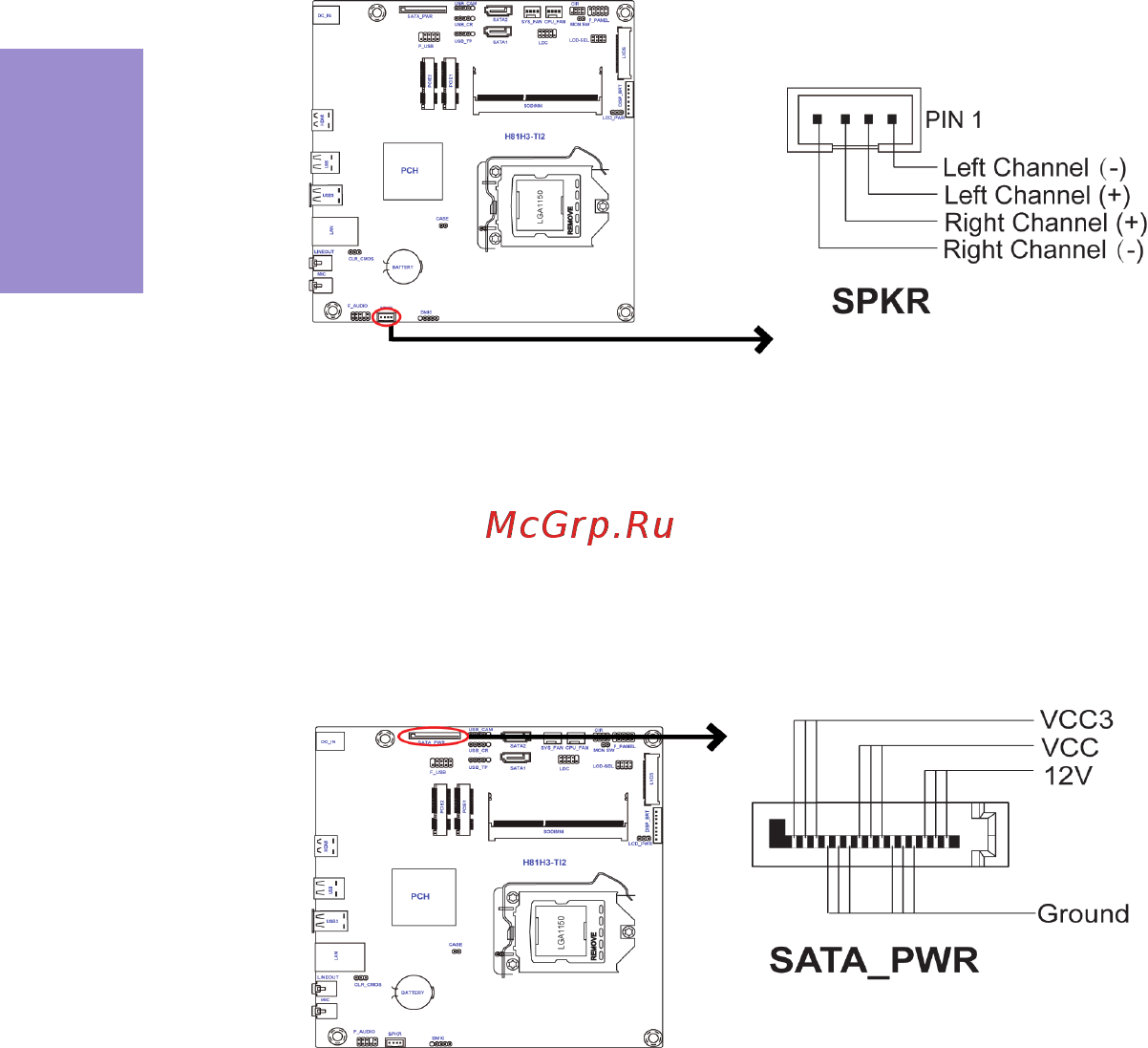

5. SATA_PWR: SATA power connector

Connect the case speaker cable to SPKR.

4. SPKR: 2 Channel audio speaker header (For All-In-One Specification)
