ECS Elitegroup H81H3-TI2 (V1.0) [24/60] H81h3 ti2 user manual

Chapter 2

H81H3-TI2 USER MANUAL

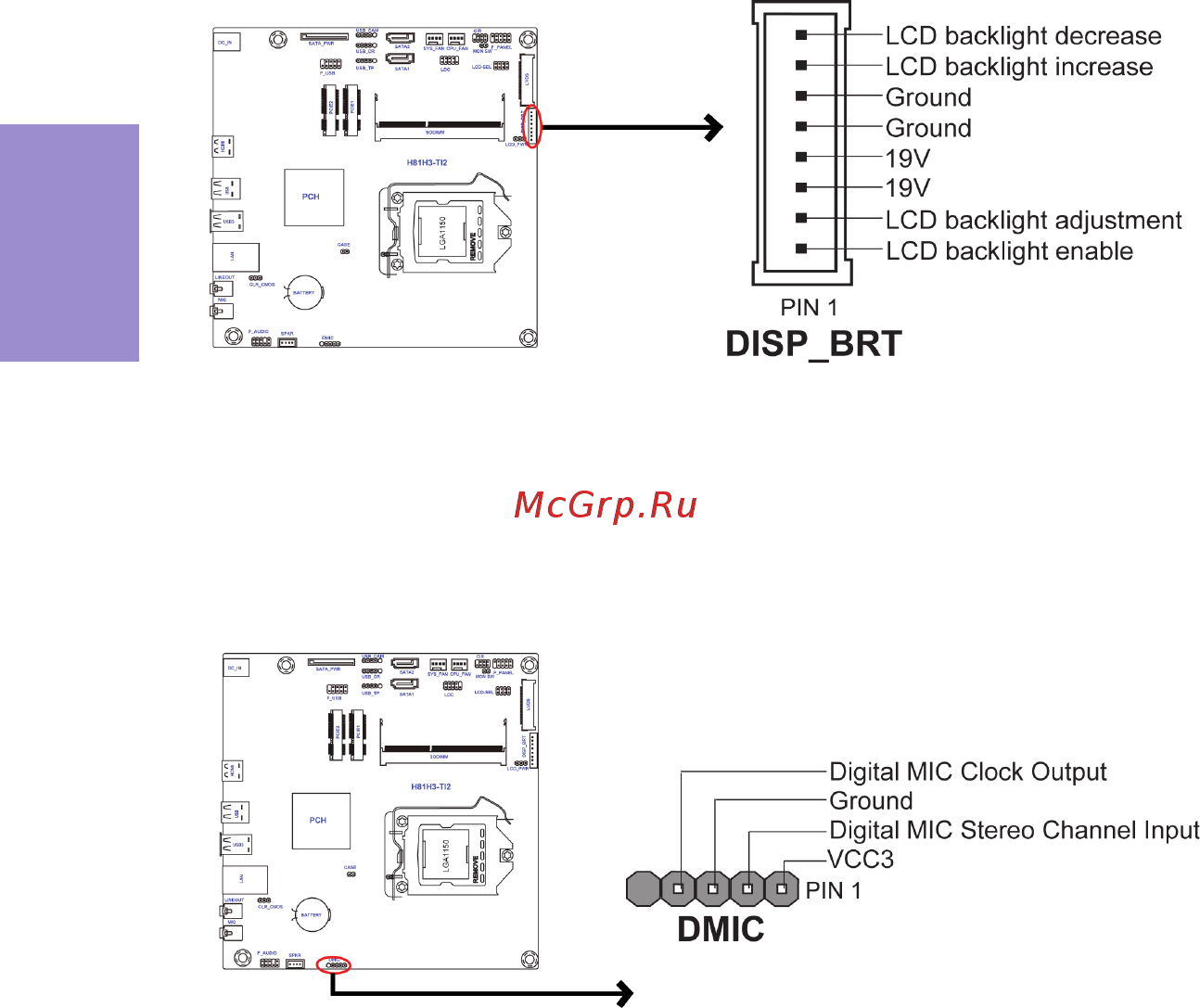

11. DMIC: Digital microphone header (For All-In-One Specification)

10. DISP_BRT: LVDS brightness control header (For All-In-One Specification)
