ECS Elitegroup A55F-M3 [18/72] Installing the motherboard

Installing the Motherboard

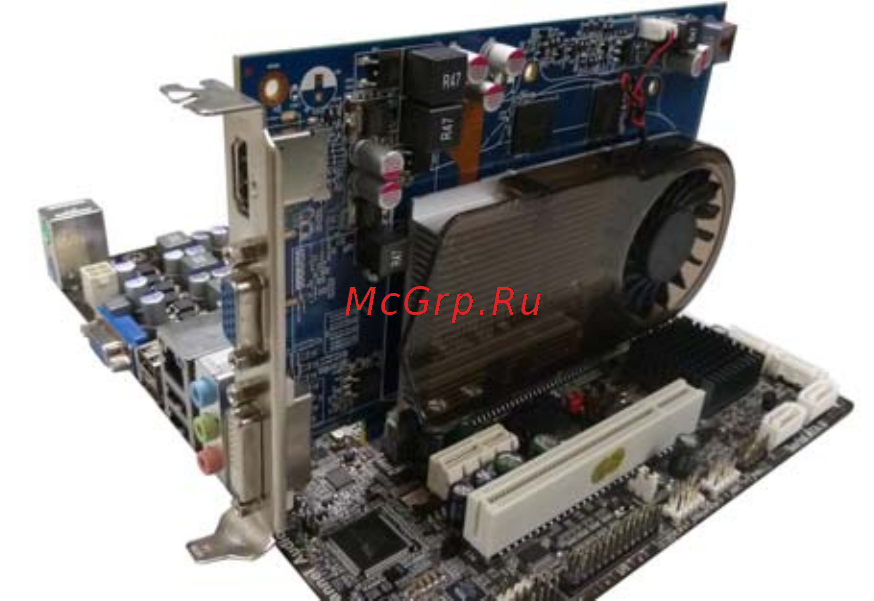

Follow these instructions to install an add-on card:

1 Remove a blanking plate from the system case corresponding to the

slot you are going to use.

2 Install the edge connector of the add-on card into the expansion slot.

Ensure that the edge connector is correctly seated in the slot.

3 Secure the metal bracket of the card to the system case with a screw.

* For reference only
