ECS Elitegroup A55F-M3 [19/72] Installing the motherboard

Installing the Motherboard

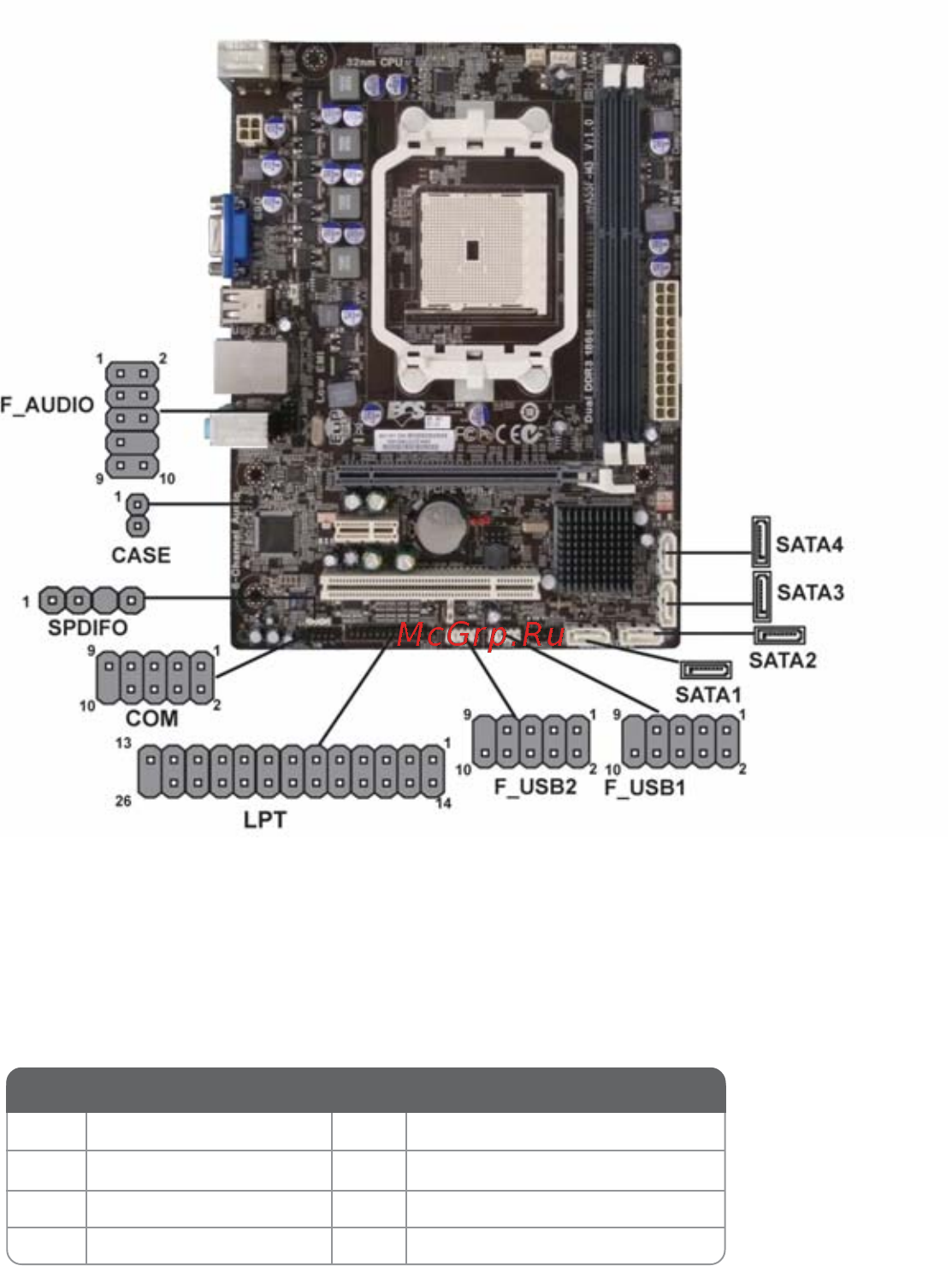

Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

SATA1~4: Serial ATA connectors

1 Ground 2 TX+

3 TX- 4 Ground

5 RX- 6 RX+

7 Ground - -

Pin Signal Name

These connectors are used to support the Serial ATA II devices, simpler disk drive

cabling and easier PC assembly. It eliminates limitation of the current Parallel ATA

interface. But maintains register compatibility and software compatibility with

Parallel ATA.
