ECS Elitegroup A55F-M3 [55/72] Using the motherboard software

Using the Motherboard Software

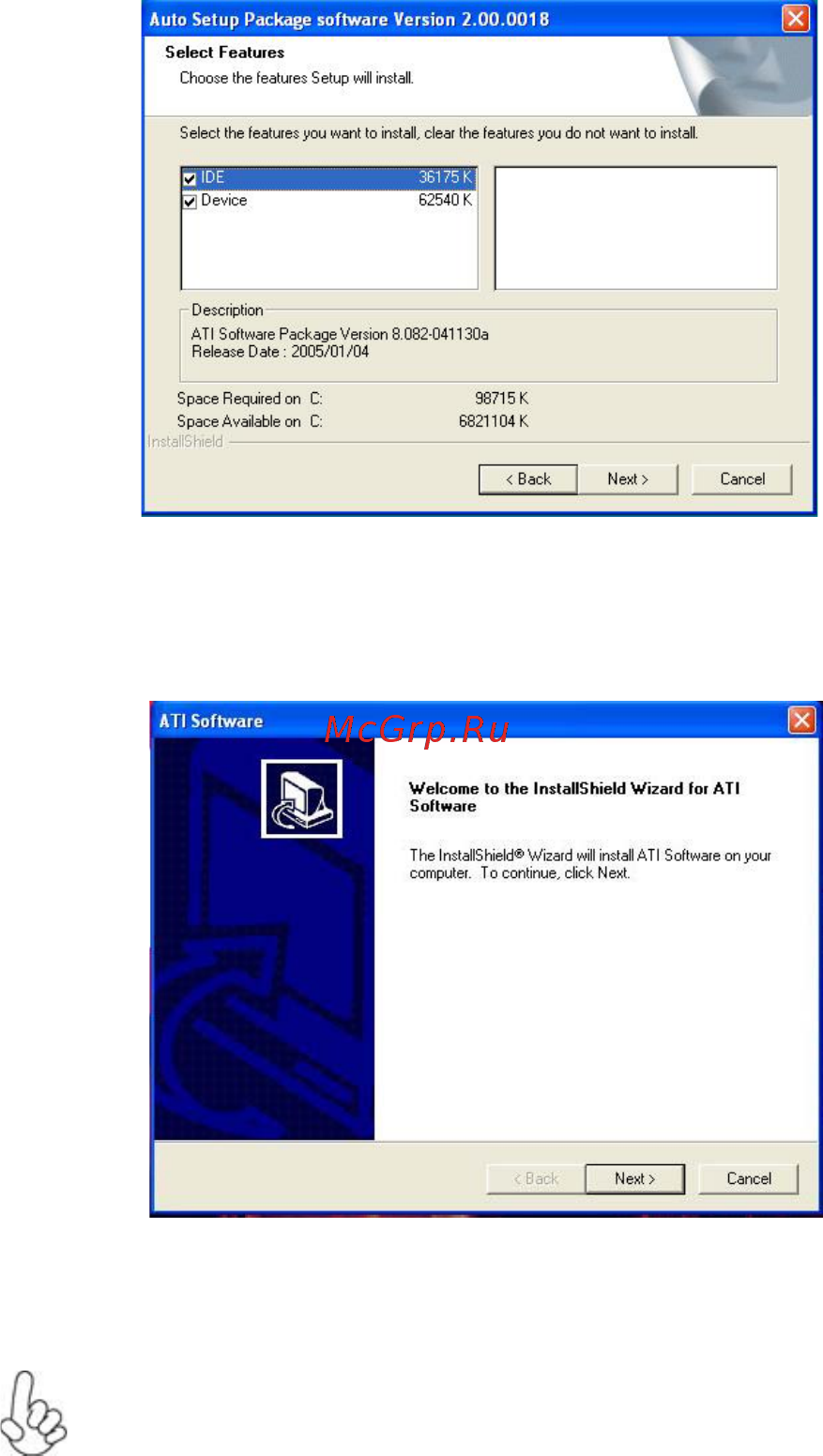

2. Click Next. The following screen appears:

3. Check the box next to the items you want to install. The default options are recom-

mended.

4. Click Next run the Installation Wizard. An item installation screen appears:

5. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the

onscreen instructions, confirm commands and allow the computer to

restart a few times to complete the installation.
