Rommelsbacher ka 2004/e [14/28] Operating elements

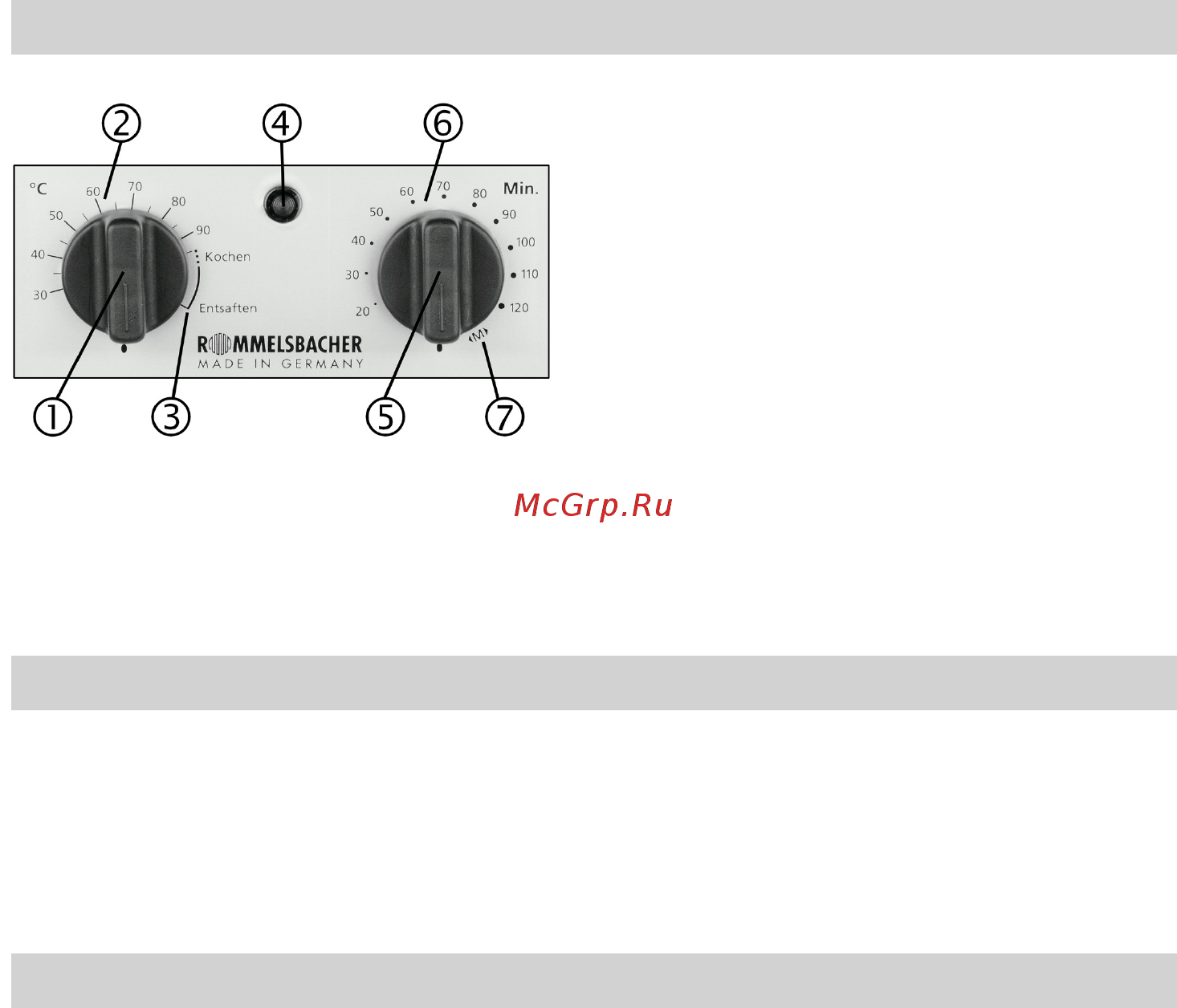

Operating elements

Left: temperature setting

(1) Rotaryknobfortemperaturesetting

(2) Temperaturerange

(3) Operatingposition“Entsaften”(juicemaking)

(4) Pilotlamp

The pilot lamp going on and off shows the

thermostatic regulation.

An extinguished pilot lamp does not mean

that the appliance is switched off!

Right: timer setting(dependingonthemodel)

(5) Rotaryknobfortimersetting

(6) Timerange

(7) Operationposition“M”–continuousoperation

Outlet tap

The models with outlet tap are to be operated the same way, but there is the additional possibility to pour

outliquidsthroughtheoutlettap.

• Whencookingpastyfood,werecommendsealingthetapterminalontheinsideoftheappliancewitha

stopperforexampletopreventtheoutlettapfromblocking.

Operating the appliance

The auto-preserving cooker is versatile in use, not only for preservation but also for cooking, heating,

heating in water bath, preparing hot beverages, blanching vegetables etc.

Thick food, which tends to scorch, needs to be heated slowly whilst stirring continuously.

Temperature control/Setting the thermostat

Theapplianceisequippedwithaprecisionthermostat(capillarytubethermostat).Thethermostatisinni-

telyvariablefromapprox.30°Cuptotheboilingpoint.Anadditionalthermometerisnotrequired.Theset

temperature will be controlled automatically as follows:

• Onapplianceswithout timer, the set temperature is reached when the pilot lamp glowing during

theheating-upprocessextinguishesforthersttime.Onlyfromthattimewillthepreservingtime

mentioned in the preserving table and cookbooks count down.

• Asforapplianceswith timer this is an automatic function, i. e. when the set temperature is reached

the timer starts counting. Once the set time has elapsed, the appliance will switch off automatically.

Here, the pilot lamp indicates the operation of the appliance irrespectively of the thermostat. In the

“Entsaften”operatingmode,thetimerdoesnotstart.

• Forjuicemakingtheapplianceisequippedwithaspecialoperationmode,whichensurescontinuous

heating. When the cooking process has been completed or needs to be interrupted, reset the

temperature selector to off-position and disconnect the plug.
