14
Home Base
SECTIONSTable of Contents 1 2 3 4 5 7 8 9 1510 11 12 13 146
LOCAL BACKUP

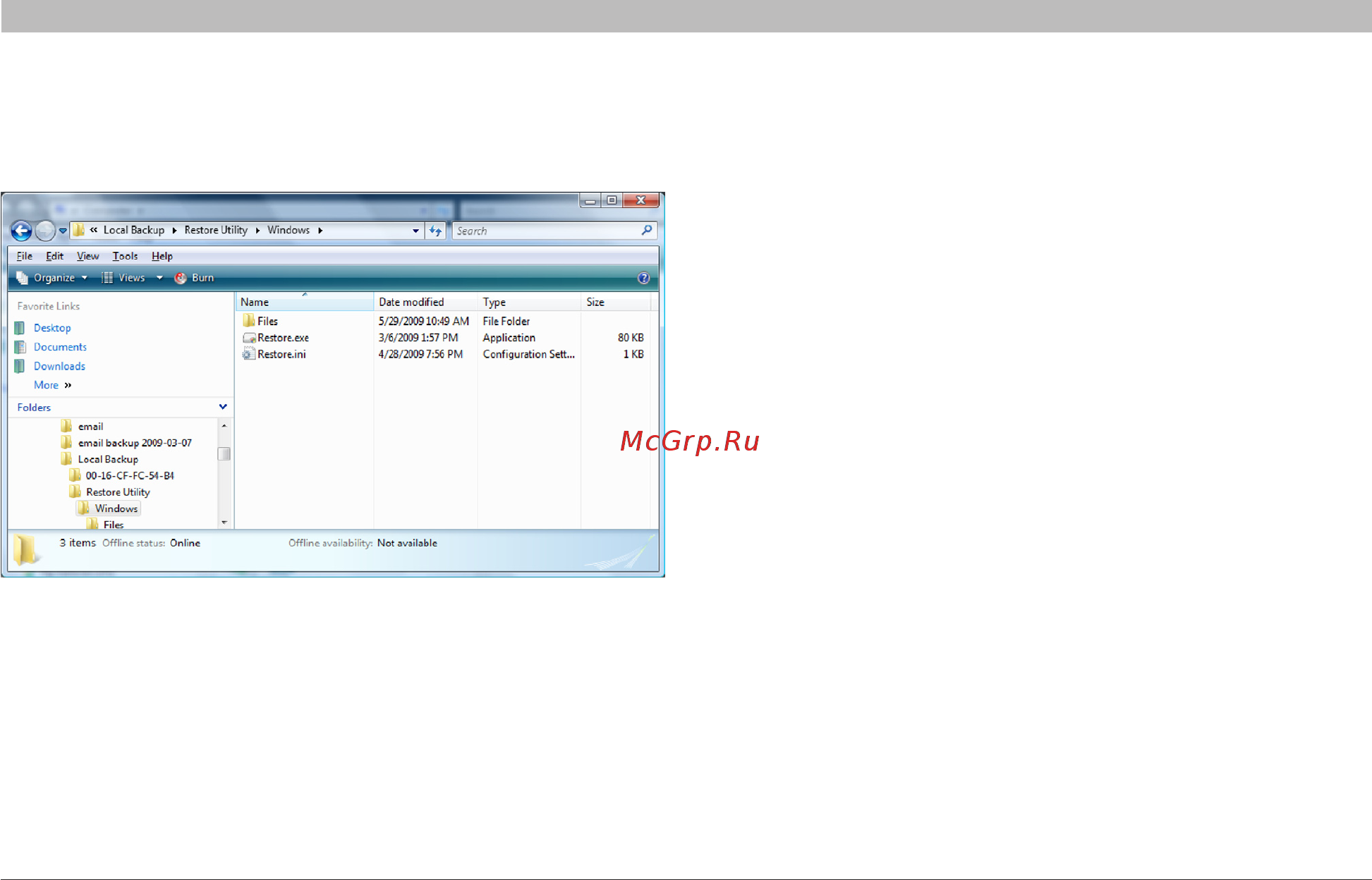

If you want to perform a full restore of your computer, launch the
“Restore Utility” found in the “Local Backup” folder of the drive that
received the backup.
If you want to perform a restore of your computer after you have
reinstalled the Operating System and/or the Control Centre, make
sure to restore your old data before setting up the Local Backup
feature on the computer again.
