45
Home Base
SECTIONSTable of Contents 1 2 3 4 5 6 7 8 9 1510 13 141211
FIREWALLS

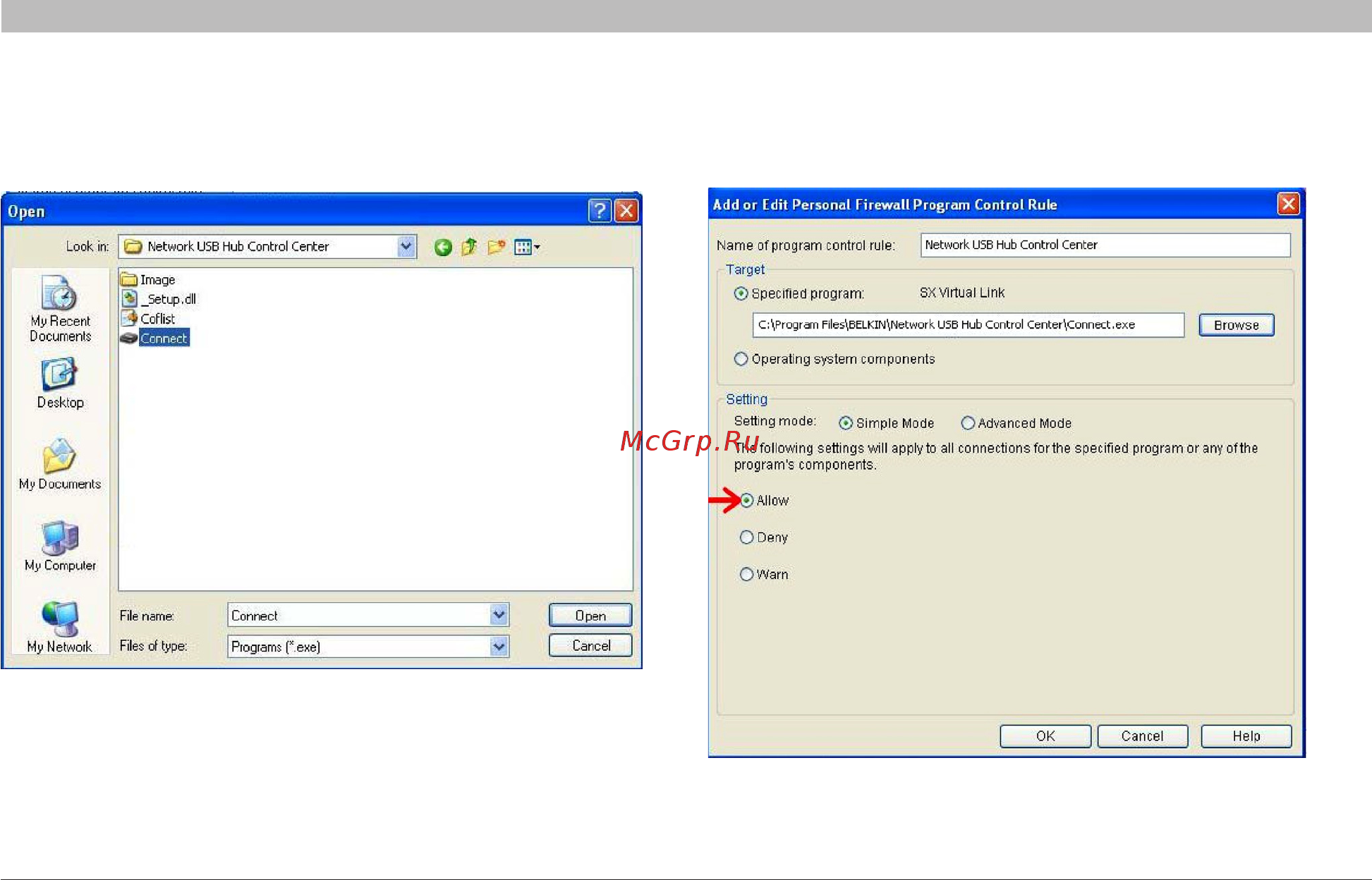

8. Ensure that the program setting is set on “Simple Mode” and that
the “Allow” option is selected. Click “OK”, and then “OK” once
more.
Select the program “Connect” and click “Open”.
You may need to reboot your computer for the changes to take effect.
