40
Home Base
SECTIONSTable of Contents 1 2 3 4 5 6 7 8 9 1510 13 141211
FIREWALLS

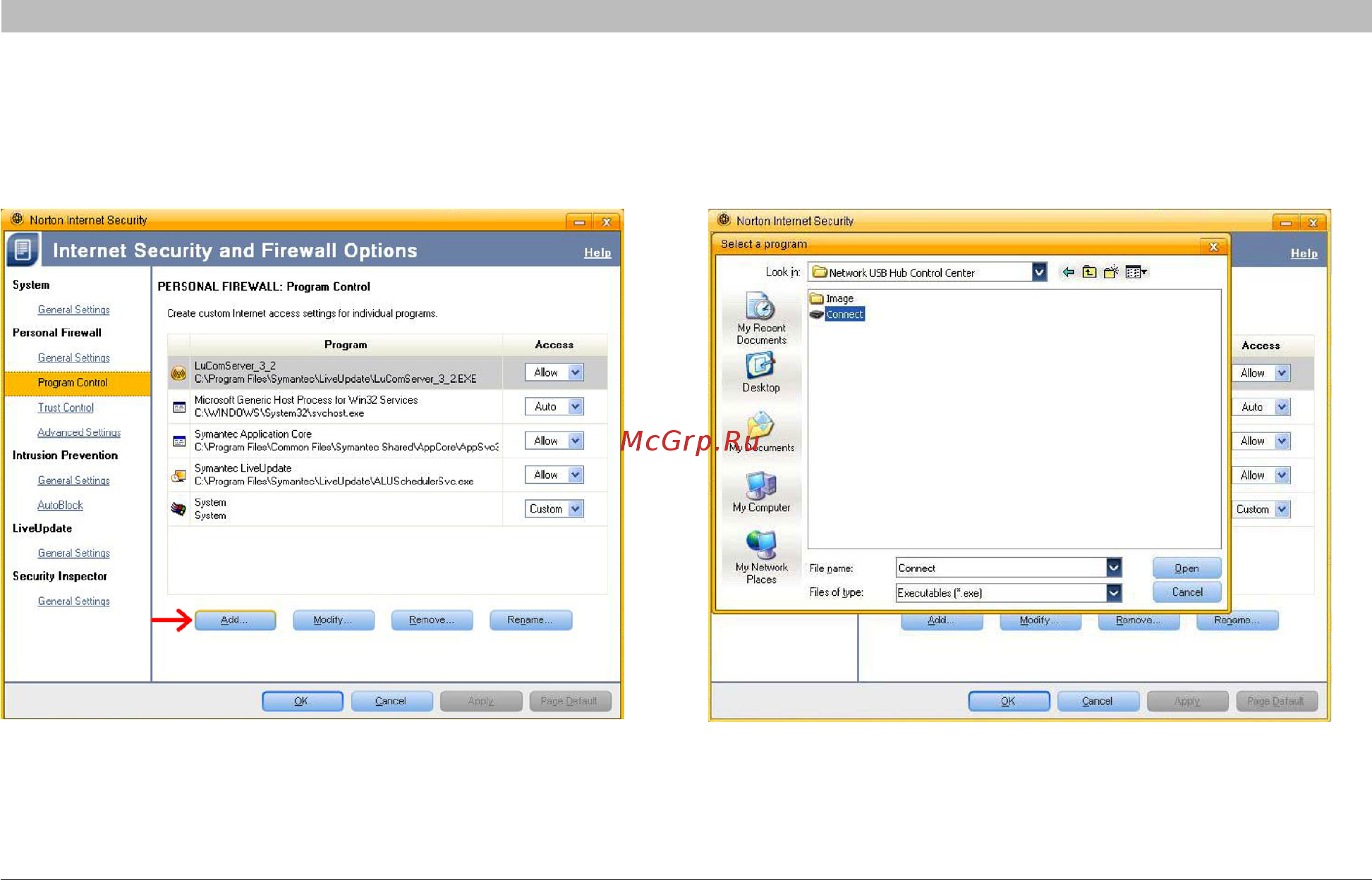

3. Click “Add”.
4. Browse to the folder where Control Center is installed. The default
path is C:\Program Files\BELKIN\Home Base Control Center\
Connect.exe. Select the program (highlighted below) and click
“Open”.
