29
Home Base
SECTIONSTable of Contents 1 2 3 4 5 6 7 8 9 11 12 13 1410 13

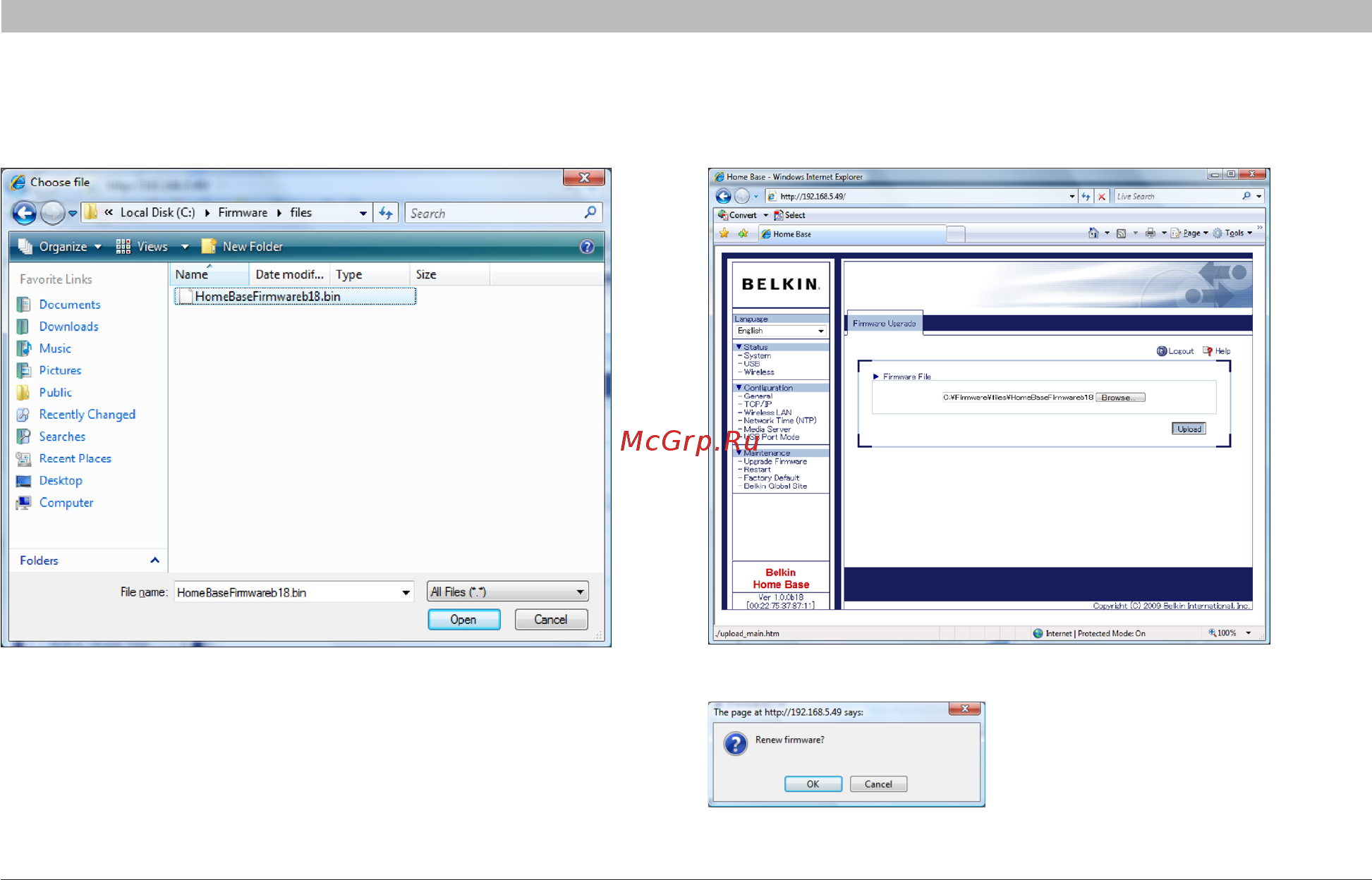

UPGRADING HOME BASE FIRMWARE
Browse to the firmware file you downloaded from the Belkin website and
click “Open”.
Click “Upload”.
Click “OK” when the verification screen comes up.
Your firmware upgrade will take a few
minutes to complete after confirmation.
The firmware should now be upgraded.
