28
Home Base
SECTIONSTable of Contents 1 2 3 4 5 6 7 8 9 11 12 13 1410 13
UPGRADING HOME BASE FIRMWARE

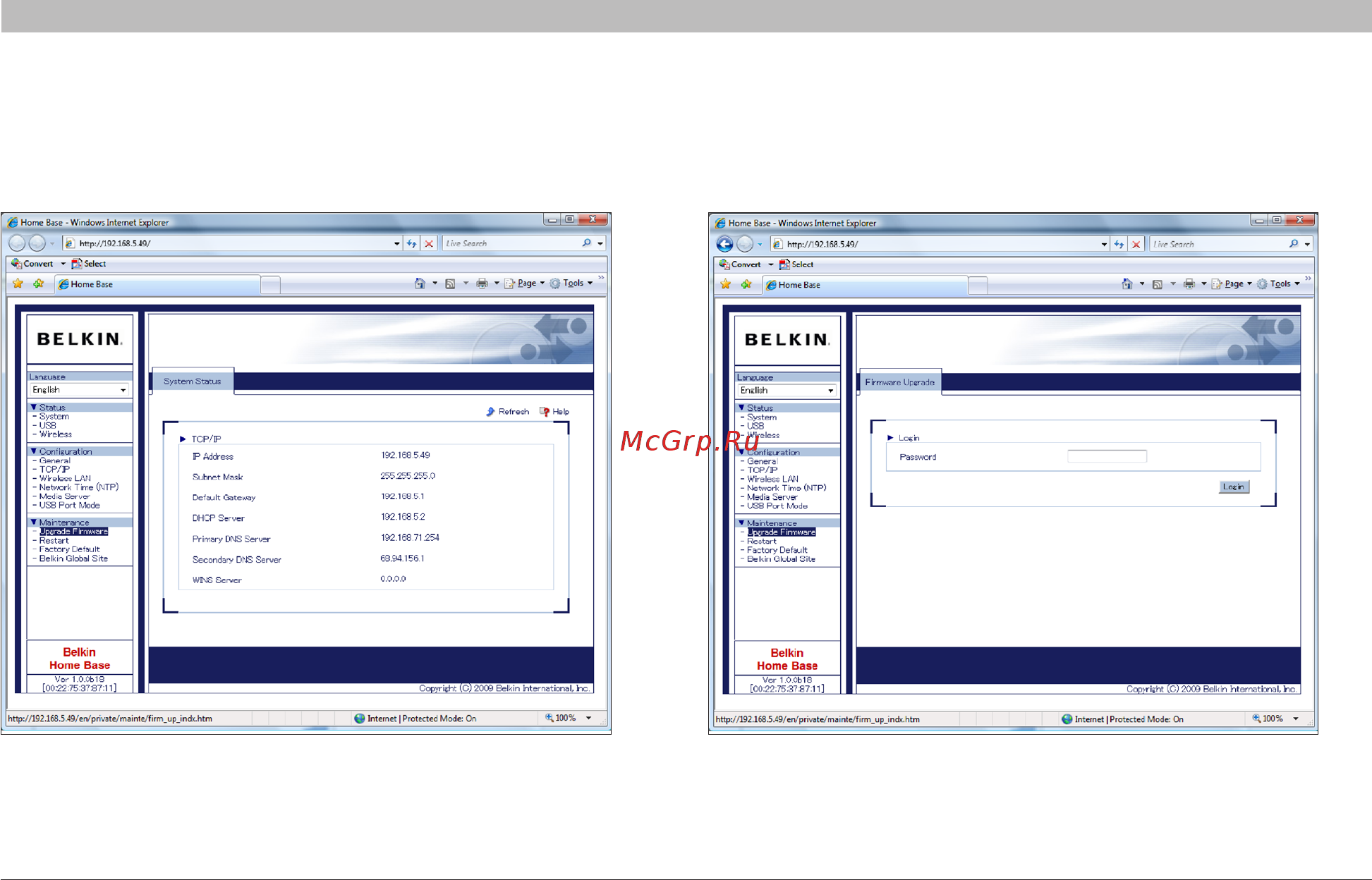

Your web browser should open to the Home Base configuration page.
Click on “Upgrade Firmware”.
Type in your Home Base password (there is no password by default),
and click “Login”.
