37
Home Base
SECTIONSTable of Contents 1 2 3 4 5 6 7 8 9 1510 13 141211
FIREWALLS
McAfee Security Center 2007

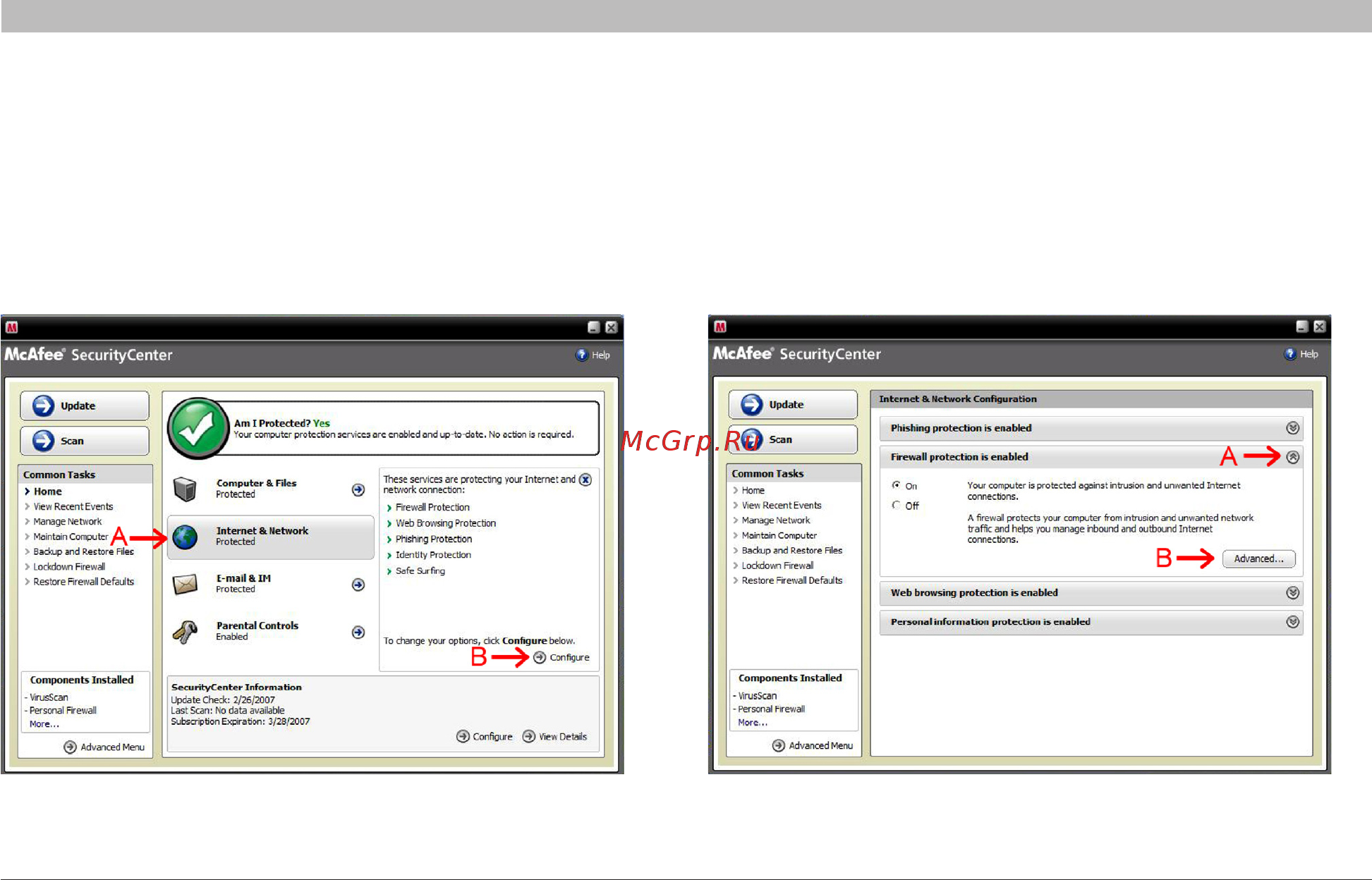

1. Click “Start > All Programs > McAfee”. Select “McAfee Security
Center”.
2. Select “Internet & Network” (A) and then click on the option to
“Configure” (B).
3. Expand the “Firewall Protection is enabled” list by clicking on the
arrows (A). Then click “Advanced” (B).
