Conguring SATA Hard Drive(s)

- 62 -

Delete RAID Volume

TodeleteaRAIDarray,press<Enter>onthevolumetobedeletedontheIntel(R)RapidStorageTechnology

screen. After entering the RAID VOLUME INFOscreen,press<Enter>onDelete to enter the Delete screen.

Press<Enter>onYes(Figure8).

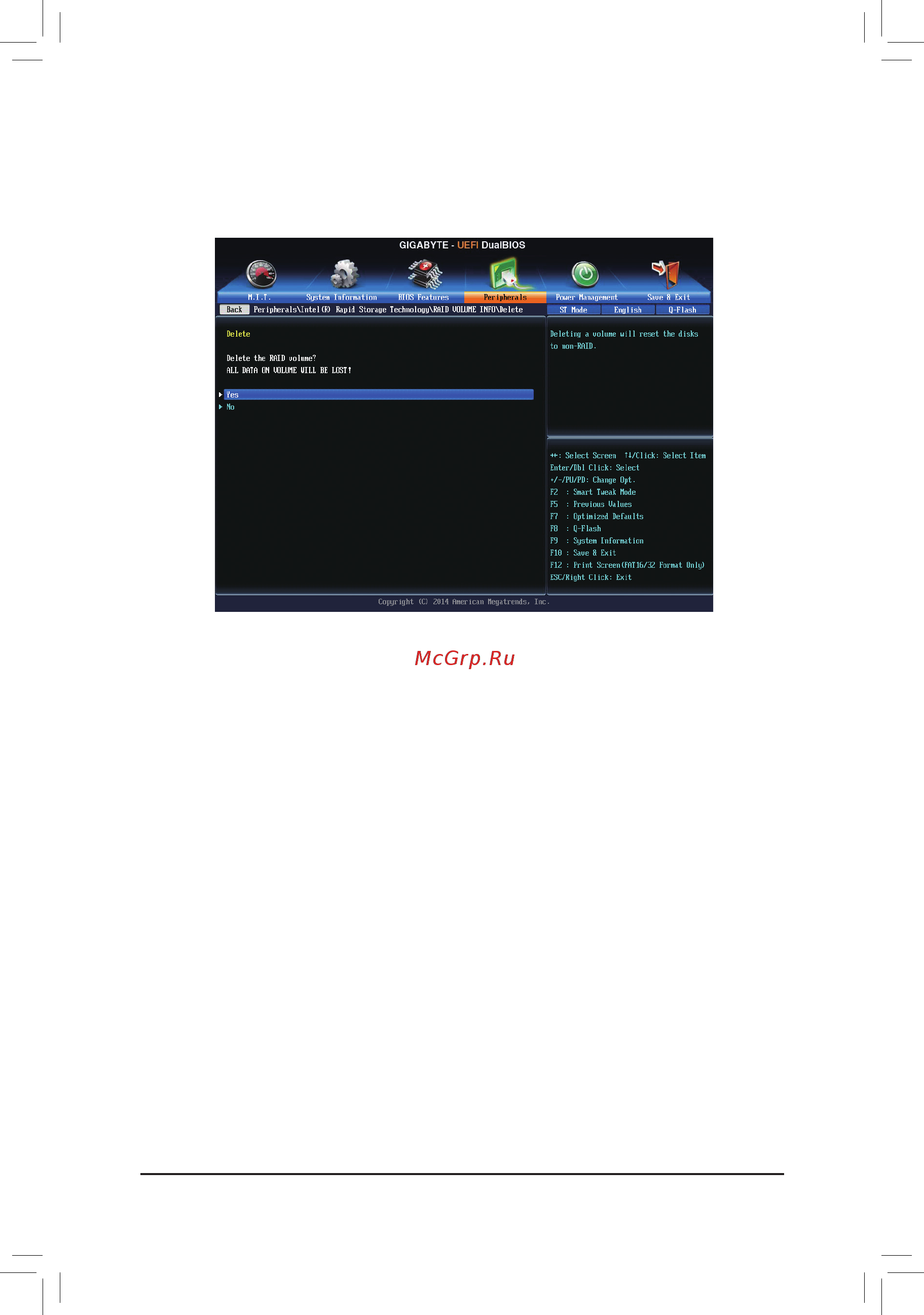

Figure 8
