Руководство пользователя Страница: 7

Gigabyte G1.Sniper Z6 [7/80] G1 sniper z6 g1 sniper h6 motherboard layout

- 7 -

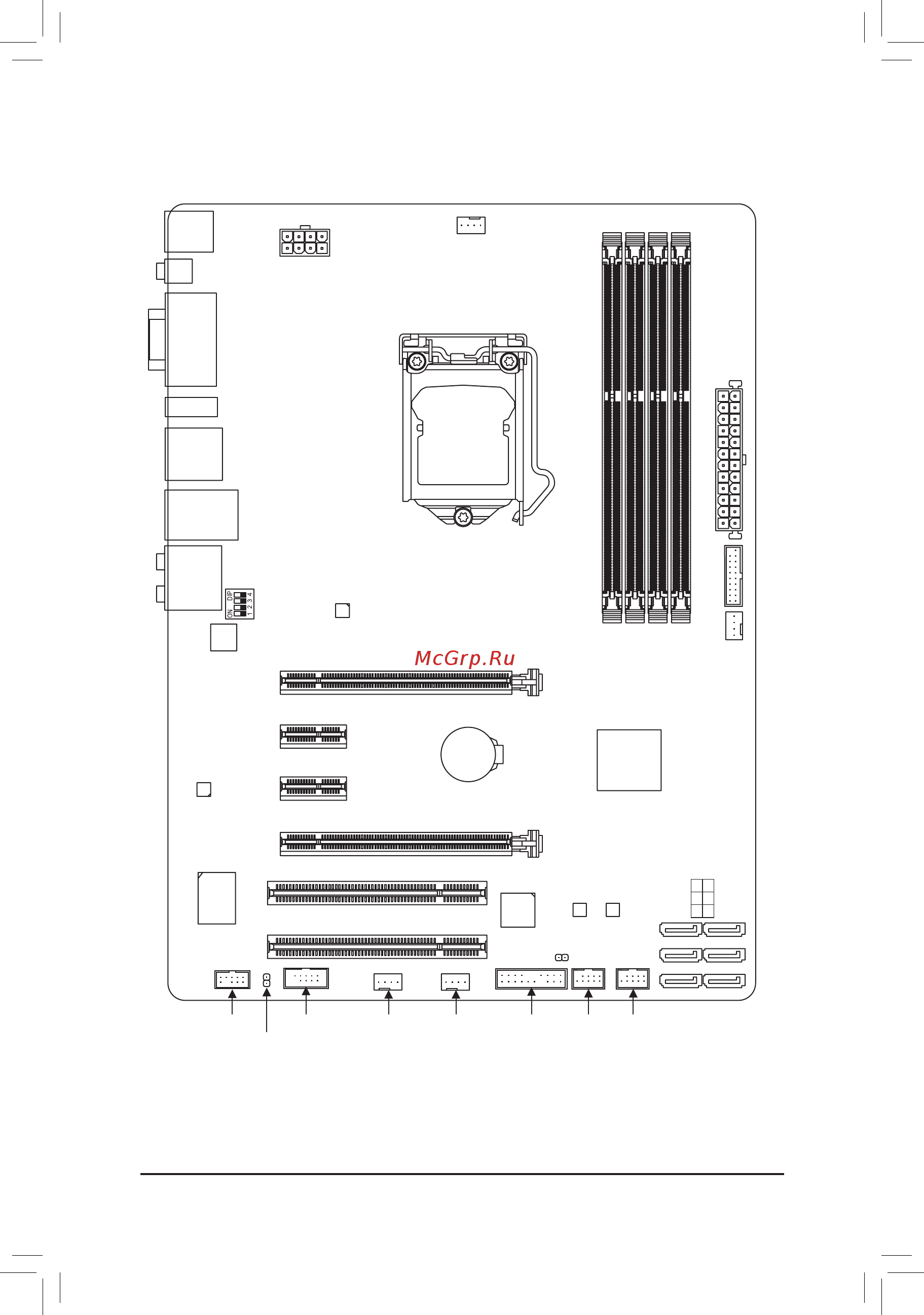

G1.Sniper Z6/G1.Sniper H6 Motherboard Layout

F_USB30

KB_MS_USB

CPU_FAN

LGA1150

ATX

AUDIO

DDR3_4

DDR3_2

DDR3_3

DDR3_1

BAT

ATX_12V_2X4

CODEC

GAIN

TI Burr Brown

OPA2134

CLR_CMOS

M_BIOS

B_BIOS

VGA

DVI

USB30

LAN

PCIEX16

PCIEX1_2

PCIEX4

PCI1

PCI2

PCIEX1_1

SYS_FAN3

G1.Sniper Z6/

G1.Sniper H6

R_USB30

HDMI

COAXIAL

USB_DAC

SYS_FAN2SYS_FAN1 F_USB2F_PANEL F_USB1COMAF_AUDIO

SPDIF_O

SATA3

1 0

3 2

5 4

iTE

Super

I/O

PCIe to PCI

Bridge

Intel

Z97

Intel

H97

Only for G1.Sniper Z6.

Only for G1.Sniper H6.

Qualcomm

Atheros Killer

E2201LAN

Содержание
