- 71 -

Conguring SATA Hard Drive(s)

• Performing the Rebuild in the Operating System

Whileintheoperatingsystem,makesurethechipsetdriverhasbeeninstalledfromthemotherboarddriver

disk. Then launch the Intel

Rapid Storage Technology utility from the desktop.

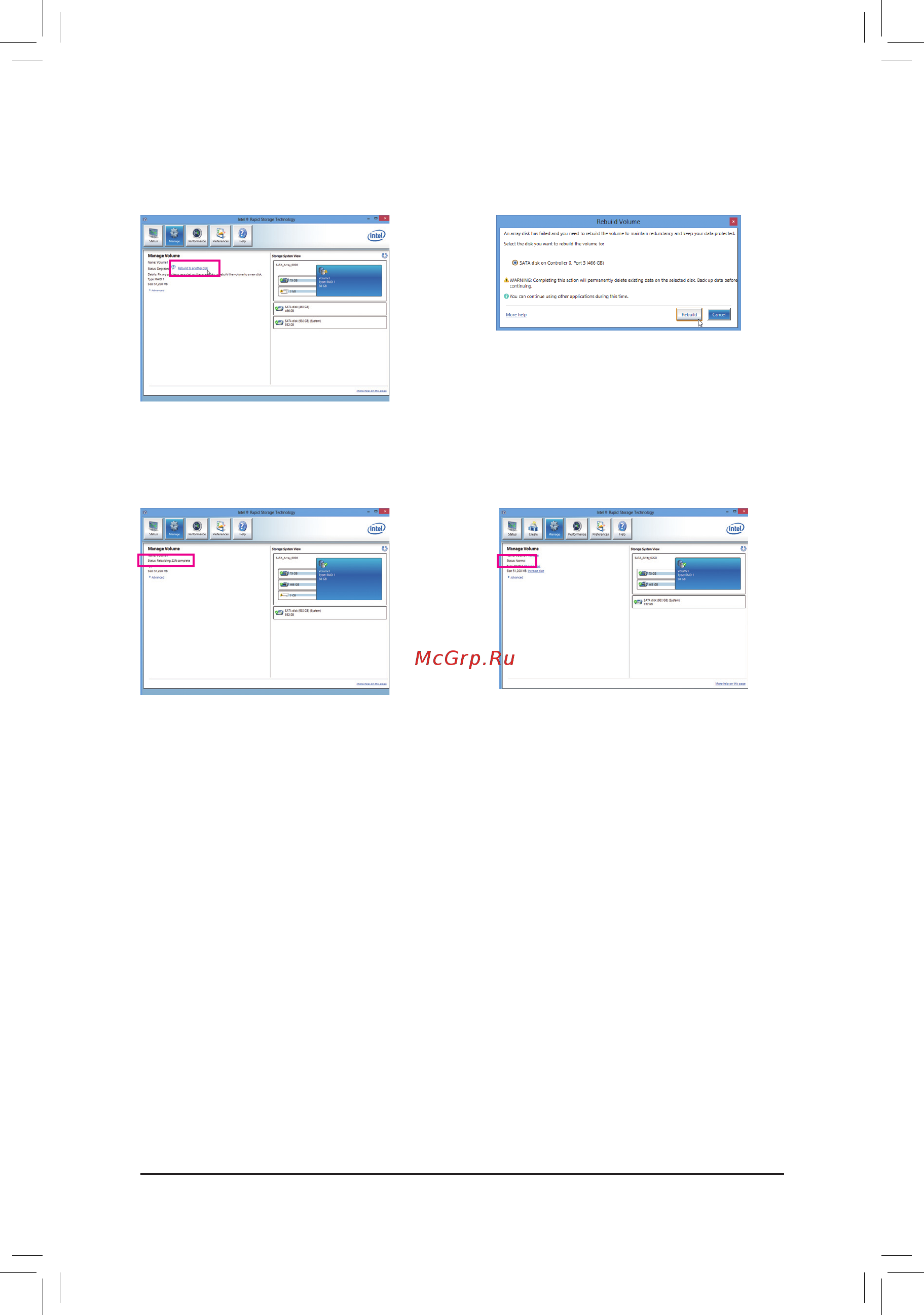

Step 1:

Go to the Manage menu and click Rebuild to

another disk in Manage Volume.

The Status item on the left of the screen displays

the rebuild progress.

Step 2:

Select a new drive to rebuild the RAID and click

Rebuild.

Step 3:

After the RAID volume rebuilding, the Status will

display as Normal.
