Troubleshooting and Routine Maintenance
123
B
If you cannot remove the jammed
paper from the front side, or the error
message still appears on the LCD
after you remove the jammed paper,
please go to the next step.

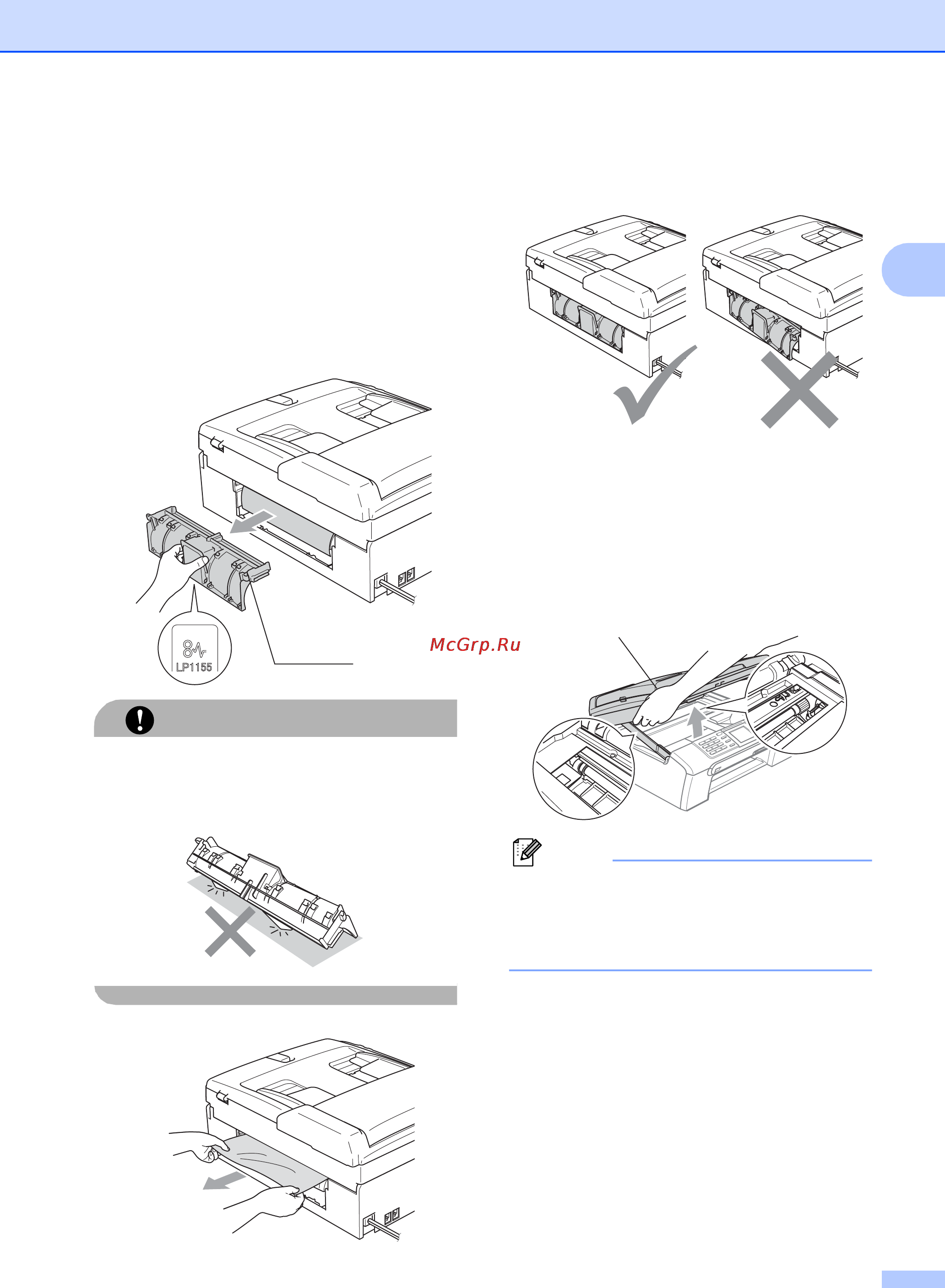

c Remove the Jam Clear Cover (1) from
the back of the machine. Pull the
jammed paper out of the machine.
CAUTION
DO NOT place the jam clear cover face
down as shown in the illustration. You may
damage the cover and cause paper jams.
d Put the Jam Clear Cover back on.
Make sure the cover is set properly.
e Using both hands, use the plastic tabs
on both sides of the machine to lift the
scanner cover (1) until it locks securely
into the open position.
Make sure that there is no jammed
paper left inside the machine. Check
both ends of the print carriage.
Note
If the paper is jammed under the print
head, unplug the machine from the power
source, and then move the print head to
take out the paper.
1
1
