Troubleshooting and Routine Maintenance
129
B

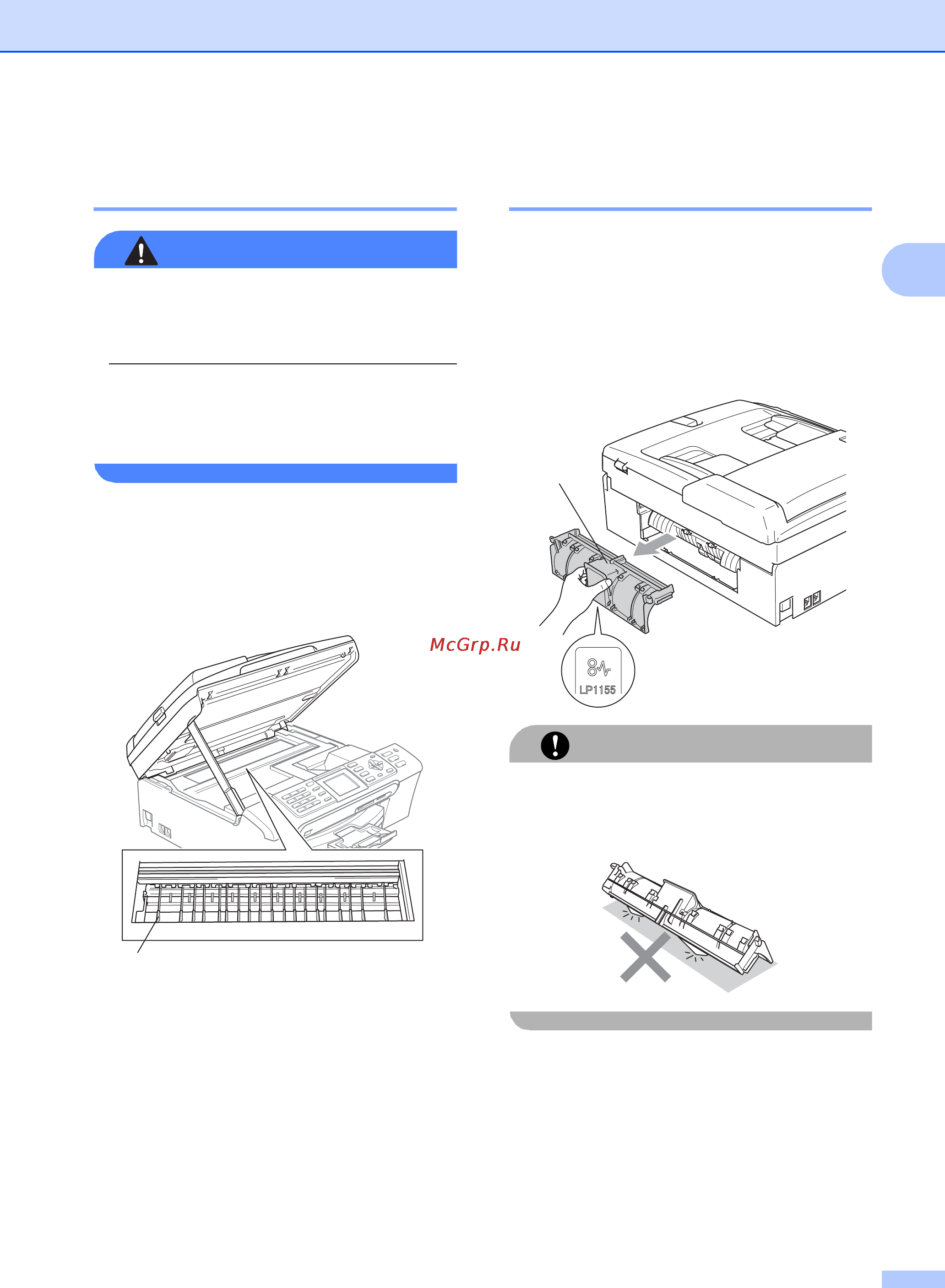

Cleaning the machine printer
platen B
WARNING
Be sure to unplug the machine from the
electrical socket before cleaning the printer
platen (1).
If ink is scattered on or around the printer
platen wipe it off with a soft, dry, lint-free
cloth.
a Using both hands, use the plastic tabs
on both sides of the machine to lift the
scanner cover until it locks securely into
the open position.
b Clean the machine printer platen (1).
Cleaning the paper pick-up
roller B
a Pull the paper tray completely out of the
machine.
b Unplug the machine from the electrical
socket and remove the Jam Clear
Cover (1).
CAUTION
DO NOT place the jam clear cover face
down as shown in the illustration. You may
damage the cover and cause paper jams.
1
1
