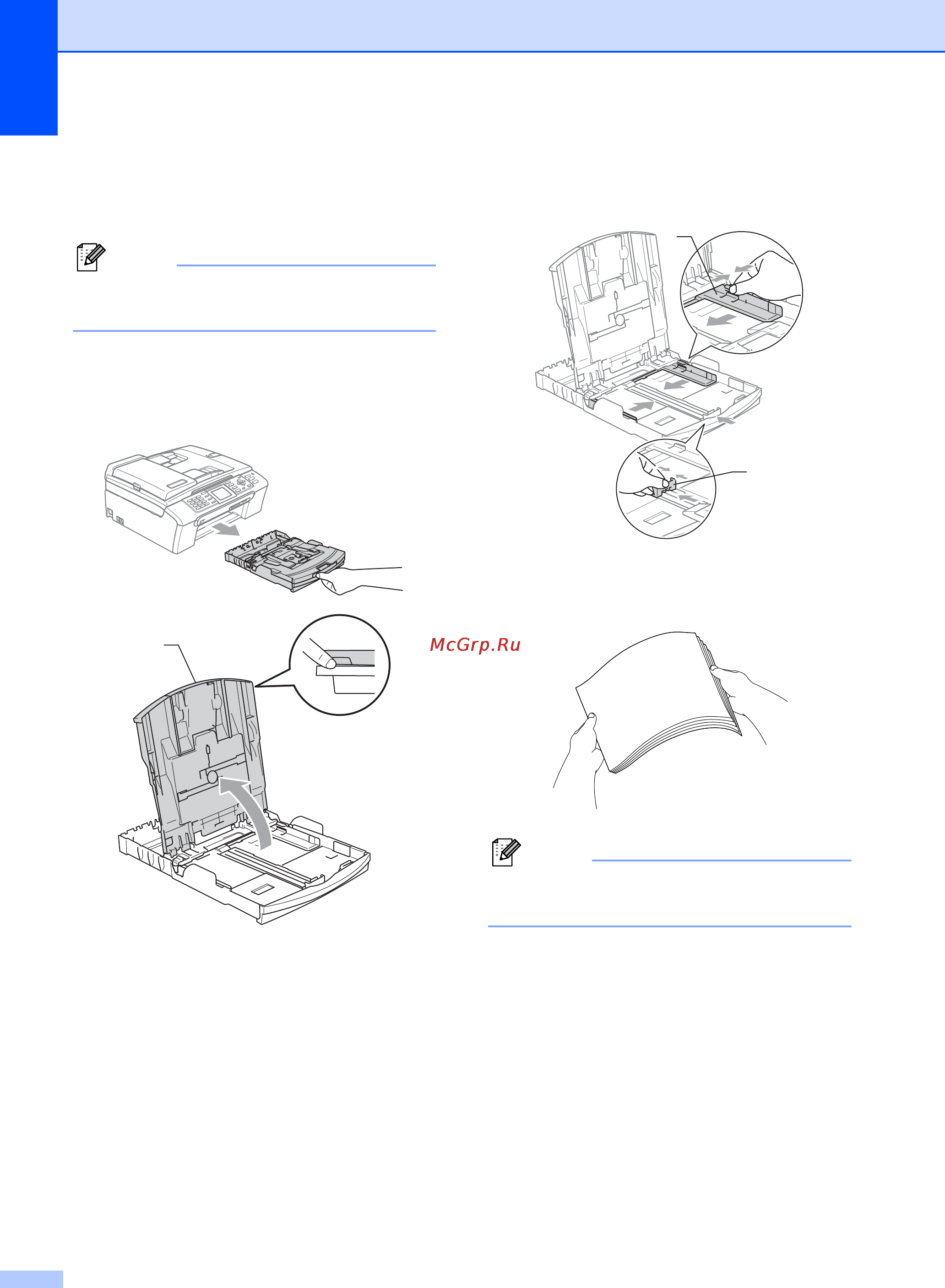

Chapter 2
14
Loading paper and
other media
2
Note
To print on Photo L or 10 x 15 cm paper,
see Loading photo paper on page 17.
a If the paper support flap is open, close it,
and then pull the paper tray completely
out of the machine.
Lift the output paper tray cover (1).
b Press and slide the paper side guides
(1) and paper length guide (2) to fit the
paper size.
c Fan the stack of paper well to avoid
paper jams and misfeeds.
Note
Always make sure that the paper is not
curled.
1
1
2
