126

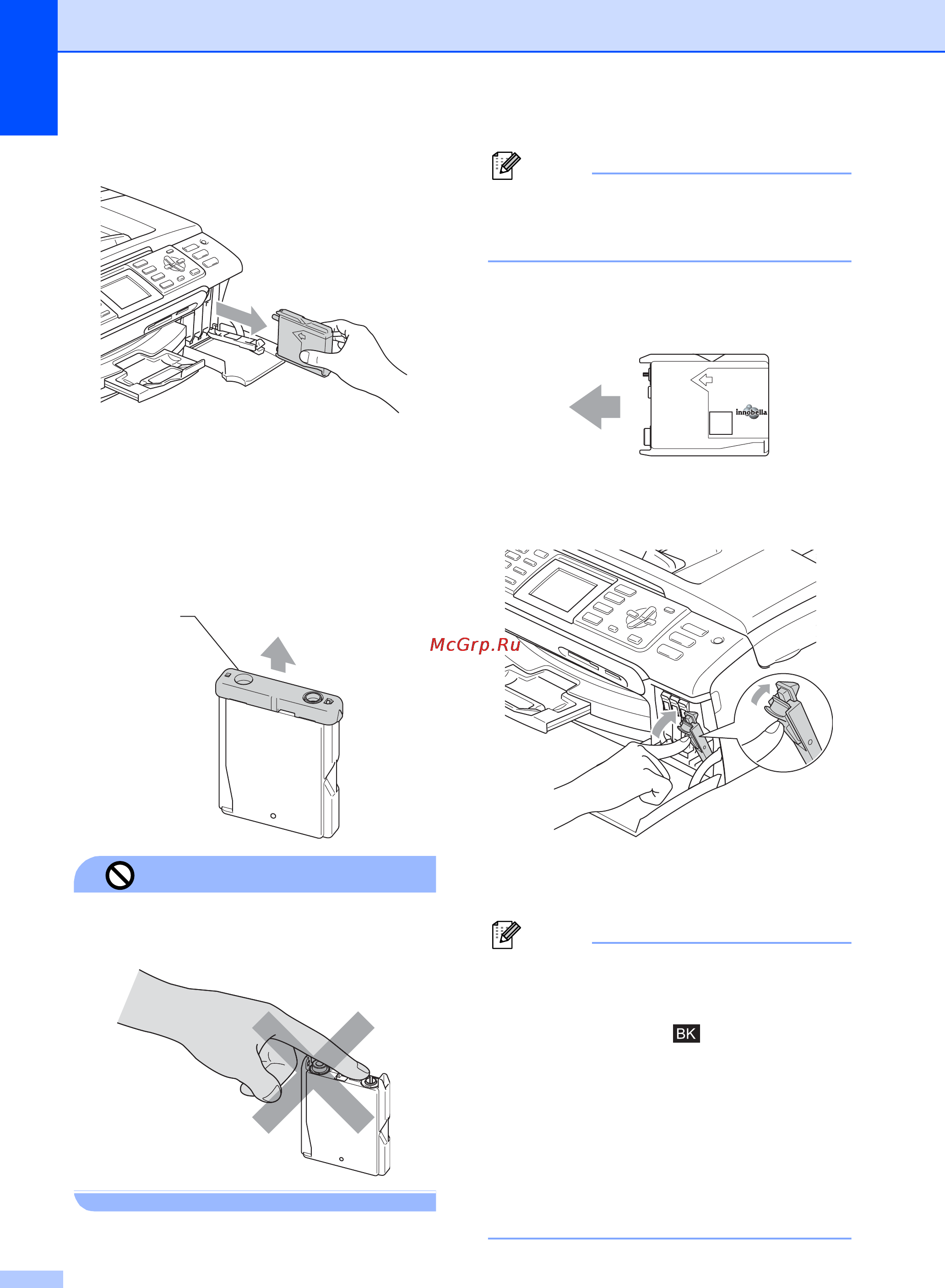

c Open the new ink cartridge bag for the
colour shown on the LCD, and then take
out the ink cartridge.
d Remove the protective yellow cap (1).
Improper Setup
DO NOT touch the area shown in the
illustration below.
Note
If the protective yellow caps come off
when you open the bag, the cartridge will
not be damaged.
e Each colour has its own correct position.
Insert the ink cartridge in the direction of
the arrow on the label.
f Lift the lock release lever and push it
until it clicks, and then close the ink
cartridge cover.
g The machine will automatically reset the
ink dot counter.
Note
• If you replaced an ink cartridge, the LCD
will ask you to verify that it was a brand
new one. (For example,
Did You Change Black) For each
new cartridge you installed, press 1 (Yes)
to automatically reset the ink dot counter
for that colour. If the ink cartridge you
installed is not a brand new one, be sure
to press 2 (No).
• If the LCD shows No Cartridge after
you install the ink cartridges, check that
the ink cartridges are installed properly.
