Asus ROG STRIX Z370-H GAMING [40/100] Chapter 2
![Asus ROG STRIX Z370-H GAMING [40/100] Chapter 2](/views2/1307906/page40/bg28.png)
2-6
Chapter 2: Basic Installation
Chapter 2

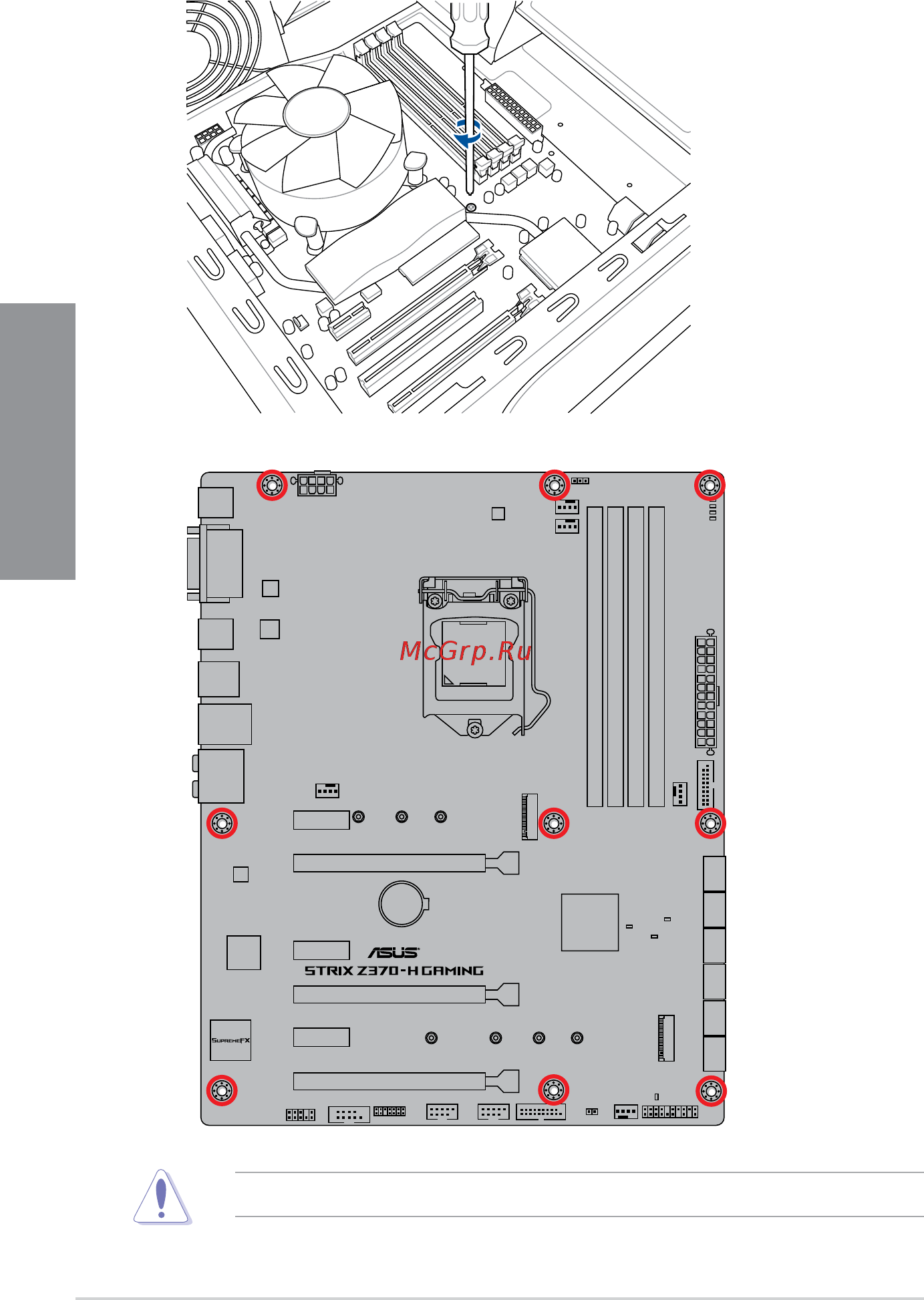

3. Place nine (9) screws into the holes indicated by circles to secure the motherboard to
the chassis.
DO NOT overtighten the screws! Doing so can damage the motherboard.
