INSTALLATION
6
Form No. MPWSM-0115
English
General
The Hatco Multi-Product Warming Station is shipped with most
components pre-assembled. Care should be taken when
unpacking shipping carton to avoid damage to unit and
components enclosed.
ELECTRIC SHOCK HAZARD:
• Units supplied without an electrical plug require field
installation of proper plug. Plug must be properly
grounded and of correct voltage, size, and
configuration for electrical specifications of unit.
Contact a qualified electrician to determine and install
proper electrical plug.
• Unit is not weatherproof. Locate unit indoors where
ambient air temperature is a minimum of 70°F (21°C).
FIRE HAZARD:
• Locate unit a minimum of 1″ (25 mm) from combustible
walls and materials. If safe distances are not
maintained, discoloration or combustion could occur.
• Do not place combustible items on top of unit.
Locate unit at proper counter height in an area that is
convenient for use. Location should be level to prevent
unit or its contents from falling accidentally and strong
enough to support weight of unit and contents.
Do not place anything on top of unit; doing so may subject
personnel to injury or could damage unit.
Do not lay unit on side with control panel. Damage to unit
could occur.
Do not locate unit in area with excessive air movement
around unit. Avoid areas that may be subject to active air
movements or currents (i.e., near exhaust fans/hoods, air
conditioning ducts, and exterior doors).
1. Remove the unit from the carton. Two people are required
for this step.
NOTE: To prevent delay in obtaining warranty coverage,
complete online warranty registration. See the
IMPORTANT OWNER INFORMATION section for
details.
2. Remove tape and protective packaging from all surfaces of
the unit and any accessories.
CAUTION
WARNING
NOTICE

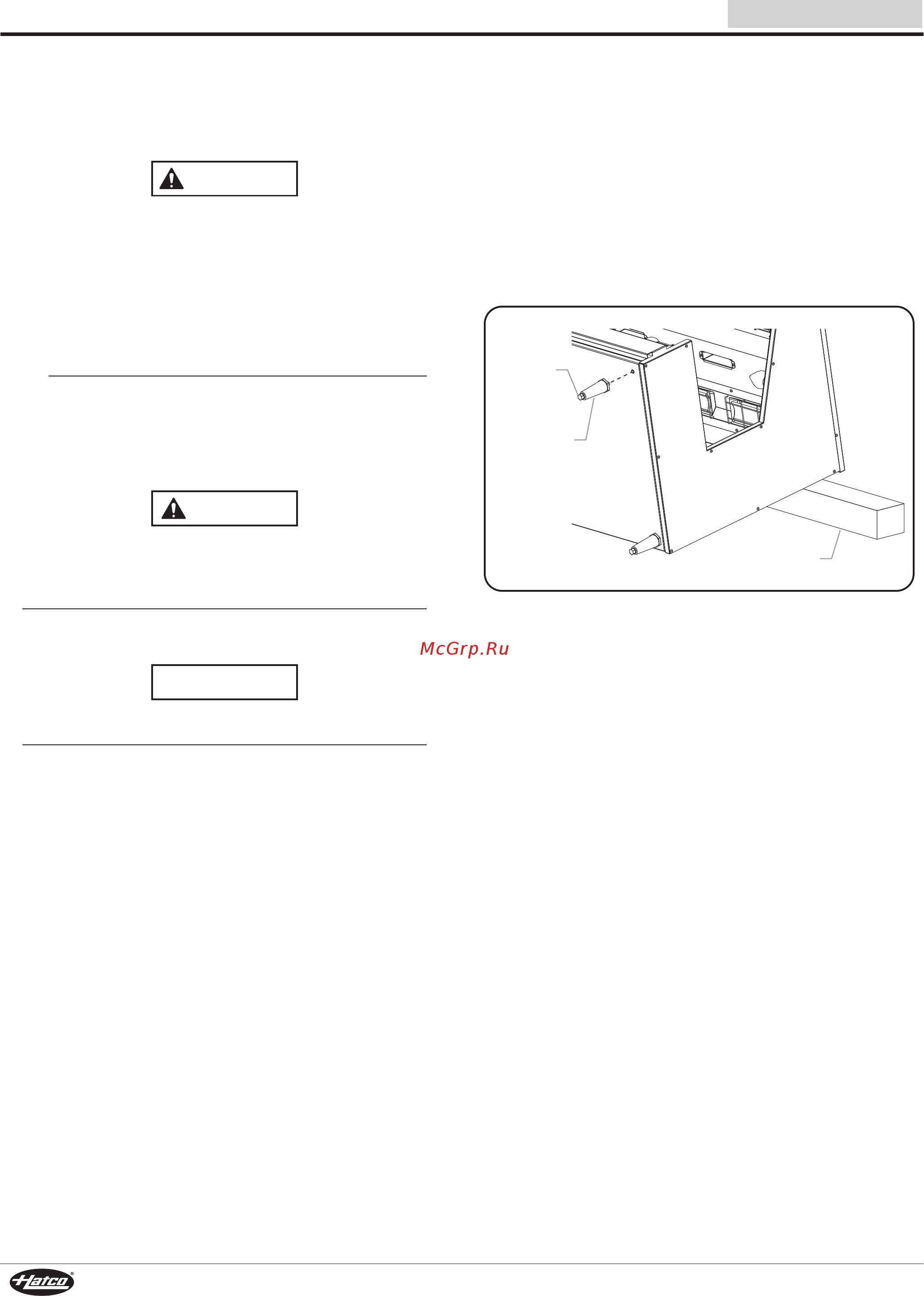

3. Install the 4″ (102 mm) legs. Two people are required for
this step.
a. Locate a block of wood or something similar to support
the unit on during leg installation. The block must be
large enough to prevent the unit from resting on the
power cord and strain relief when it is tipped on its back.
b. Carefully tip the unit backwards and rest it on the support
block.
c. Install each leg. Hand-tighten the legs until snug. Do not
over-tighten.
d. Carefully lift/return the unit to the upright position. Do not
“rock” the unit forward on its back legs.
Leg Installation
4. Place the unit in the desired location. Two people are
required for this step.
• Locate the unit in an area where the ambient air
temperature is constant and a minimum of 70° F (21° C).
Avoid areas that may be subject to active air movements
or currents (i.e., near exhaust fans/hoods and air
conditioning ducts).
• Make sure the unit is at the proper counter height in an
area convenient for use.
• Make sure the countertop is level and strong enough to
support the weight of the unit and food product.
• Make sure all the feet on the bottom of the unit are
positioned securely on the countertop.
5. Level the unit by turning the leveling nut on each leg, if
necessary. When looking at the bottom of the unit, turning
the nut counterclockwise will lengthen the leg, and turning
the nut clockwise will shorten the leg.
6. Install any accessories that came with the unit. Refer to the
OPTIONSAND ACCESSORIES section for details.
7. For units without a plug, have a qualified electrician install
the proper plug on the cord. The plug must be properly
grounded and of the correct voltage, size, and configuration.
See the SPECIFICATIONS section for details.
Support Block
Leveling
Nut
4″ Leg
